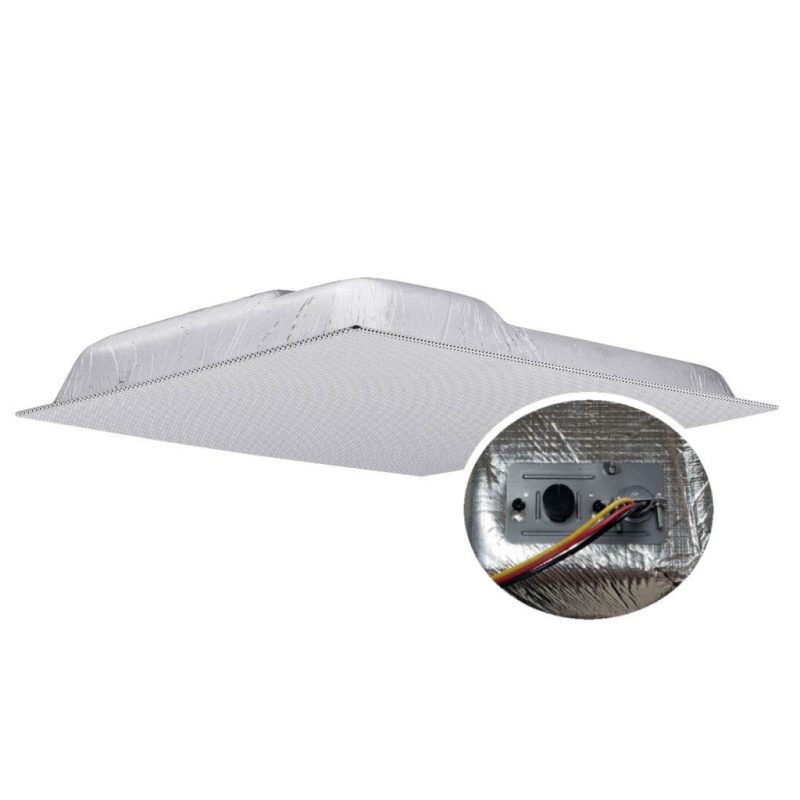

The SYSTEM 12URS includes all components in a pre-assembled package designed for quick installation. It is a 2? x 2?, lay-in ceiling tile replacement enclosure with a high durability, powder coated and perforated steel baffle, and a lightweight speaker assembly that includes an 8?, high efficiency speaker with a 5 oz. magnet and a 4 Watt, 25/70V transformer with rotary tap selector.
By providing high intelligibility, visual appeal and excellent reliability, the SYSTEM 12URS is designed for a wide range of commercial sound applications. The SYSTEM 12URS is UL Listed, and provides four (4) seismic tie-off points to comply with local codes in most jurisdictions. The SYSTEM 12URS can be installed in a ceiling tile grid in about one minute, which saves installation labor and enhances your profits. When you need a high quality, great sounding speaker that installs in minutes, make Quam your choice for speakers.
Specifications: • 4W, 25/70V, rotary select with 5 taps (0.25W, 0.50W, 1W, 2W, 4W) • Average sensitivity: 92 dB 1W/1m • Power rating: 12 watts RMS • Max. system output: 98 dB, 5W/1m • Magnet type: weight: BeFe ceramic, 5 oz. nominal • Frequency response: 65 Hz - 17 kHz • Nominal coverage angle: 100° included angle, -6 dB/ 2 kHz, half space • Audio connection: 7-1/2" long labeled, tinned wires, pre-cut.
Constant Voltage (70-Volt) Audio SystemsAudio distribution systems, especially those commonly used in department stores, warehouses, restaurants, etc., require that many loudspeakers be driven from a single audio amplifier over long runs of speaker wire. The "constant voltage" or "high impedance distribution" audio systems can be complex to understand at first, however, provides many advantages. Learn how to design your own 70-volt or 25-volt loudspeaker system.
