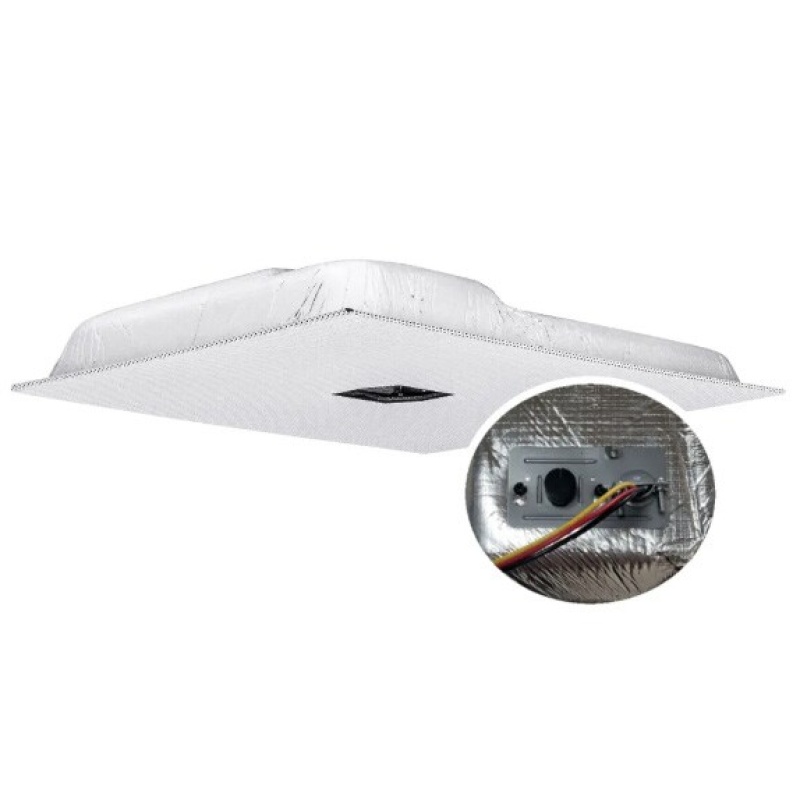

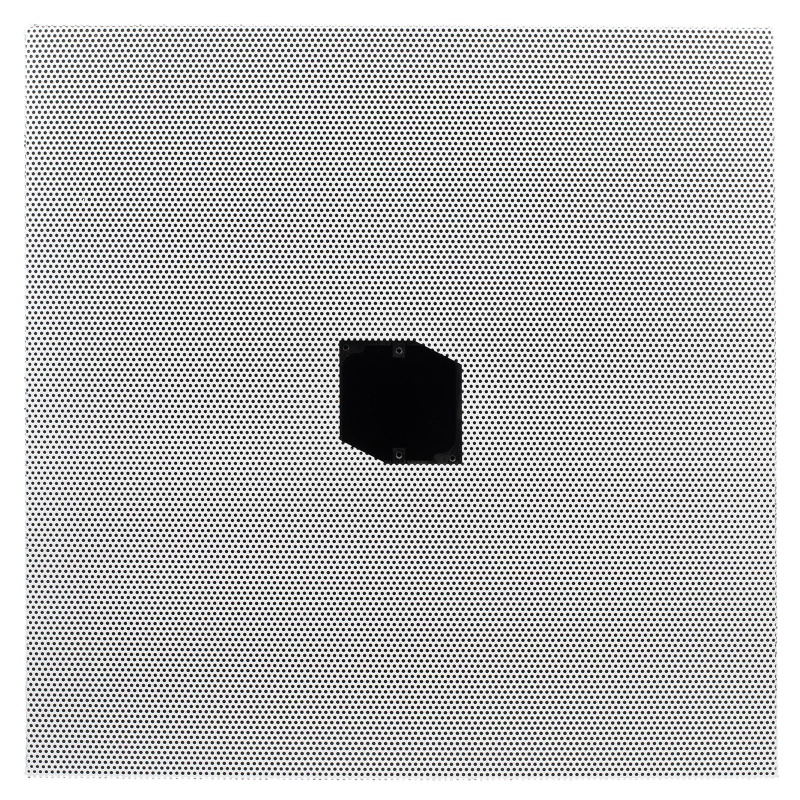

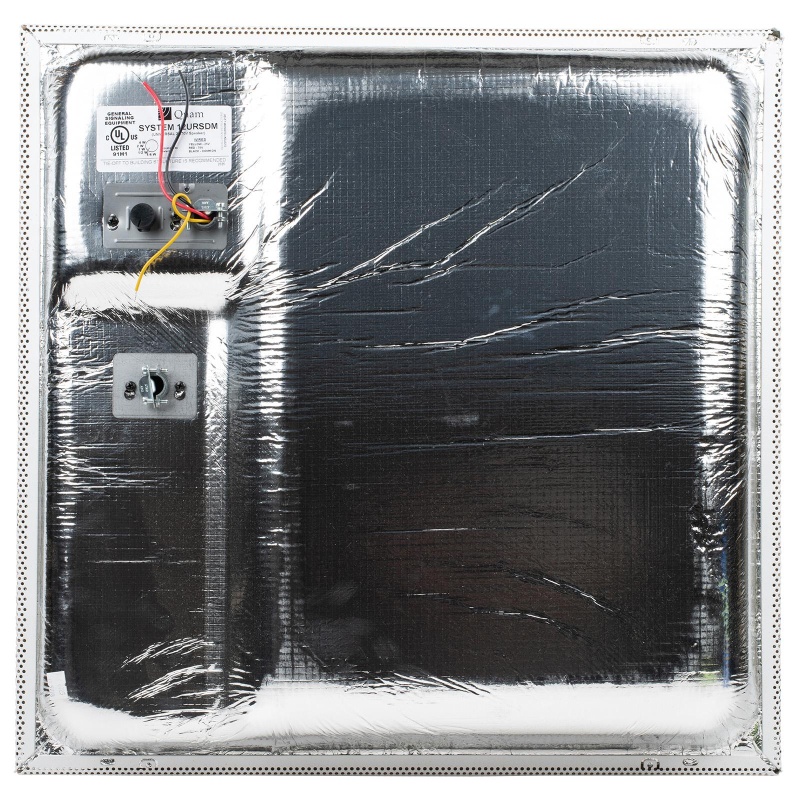

Quam SYSTEM 12URSDM 24" x 24" Lay-In Ceiling Tile Speaker with Mount for 3rd Party HardwareThe SYSTEM 12URSDM is a fully pre-assembled package designed for fast installation, serving as a 2′ x 2′ lay-in ceiling tile replacement enclosure. It features a powder-coated, perforated steel baffle for durability and a lightweight speaker assembly with an 8″ high-efficiency driver, 5 oz. magnet, and a 4 Watt 25/70V transformer with a rotary tap selector. An integrated electrical box includes a faceplate opening for customer-supplied devices such as warning lights, cameras, fire strobes, or wireless access points.
Delivering high intelligibility, visual appeal, and dependable performance, the SYSTEM 12URSDM is suitable for a wide variety of commercial sound applications. UL Listed with four seismic tie-off points for compliance with most local codes, it installs into a ceiling tile grid in about one minute, reducing labor costs and maximizing efficiency. When you need a reliable, great-sounding speaker that saves time on installation, Quam’s SYSTEM 12URSDM is an ideal choice.
SpecificationsApplication
Intended Use: Lay-in ceiling tile replacementProgram Material: Signal tones, voice and background musicInstallation: Mounted parallel to the floor plane in a 24" ceiling gridAudio Performance
Average Sensitivity: 92dB SPL, 1W/1MLoudspeaker Power Rating: 12W RMS, EIA 426A Standard Maximum Power Rating:4W @ 25/70VCalculated Output: 98dB SPL, 4W/1M Magnet Weight & Weight: BeFe Ceramic, 5 oz. Nominal Frequency Response: 65Hz - 17kHz, EIA 426A Standard Nominal Coverage Angle: 100° Included Angle, -6dB/2kHz, Half Space Audio Connection: 7.5", Color-coded, Pre-tinned Leads
Component
Dimension: 3-1/2" (H) x 23-13/16" (W) x 23-13/16" (D) Weight: 6.37 lbs. Loudspeaker Model: 8C5PAX Loudspeaker Specs: 8" O.D. loudspeaker, 5 oz. magnet Transformer: 4W, 25/70V, rotary select with 5 taps (0.25W, 0.50W, 1W, 2W, 4W) Integral Enclosure: 1,283 CID molded fiber Grille: Standard perforated steel with four (4) seismic tie-off points Finish: White powder coat finish Device Mount: Built-in 4-square with single- and dual-gang adapterDevice Mount: Built-in 4-square with single- and dual-gang adapterCertification
UL Listed 1480: When installed with supplied installation instructions and requirements of NEC/AHJ. (UEAY, UEAY7- Canada)UL Listed 2043: Suitable for use in air-handling spaces
