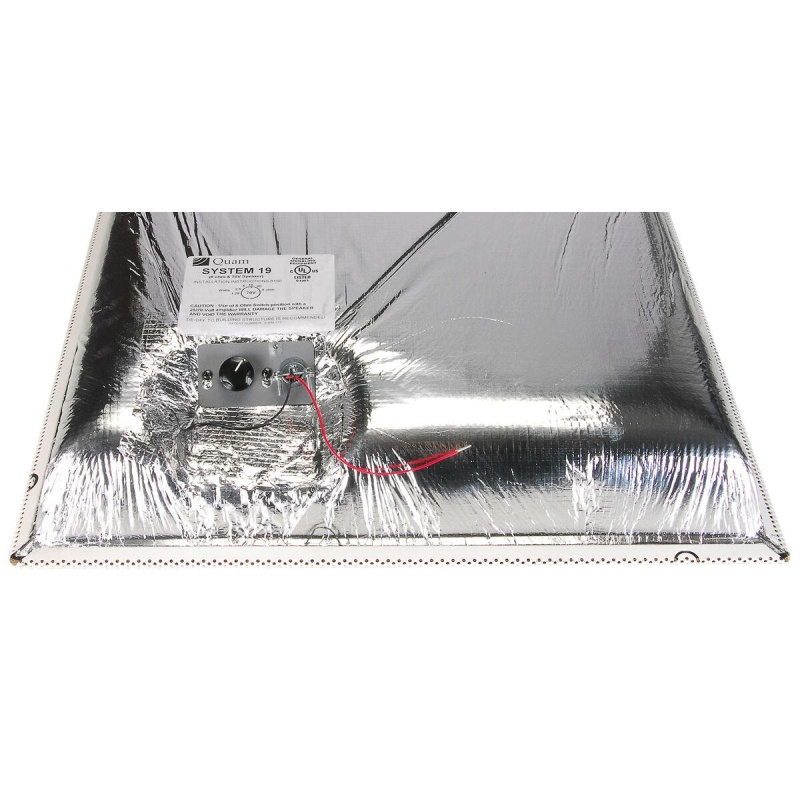

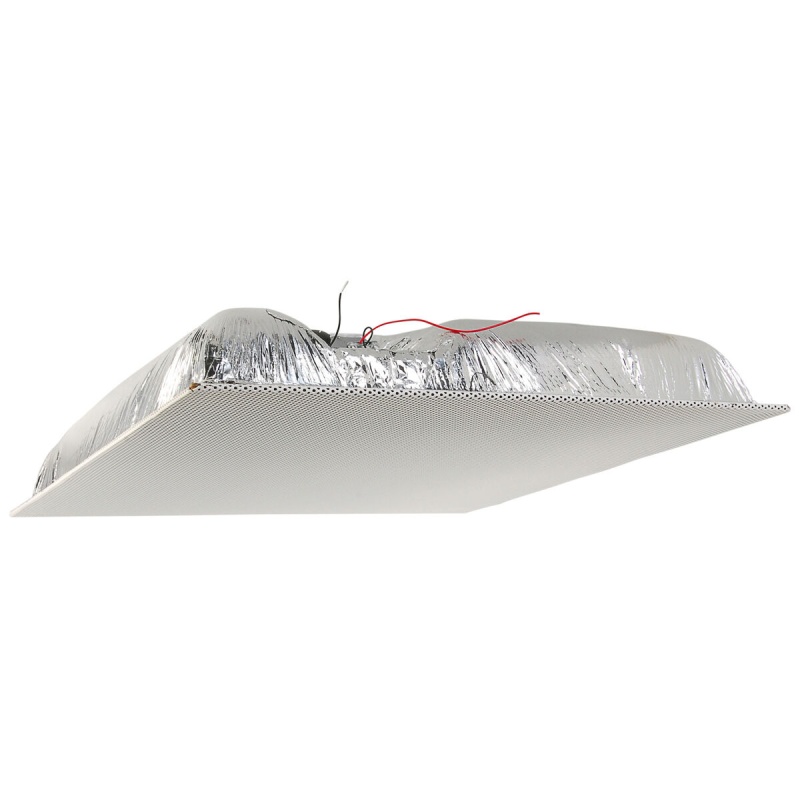

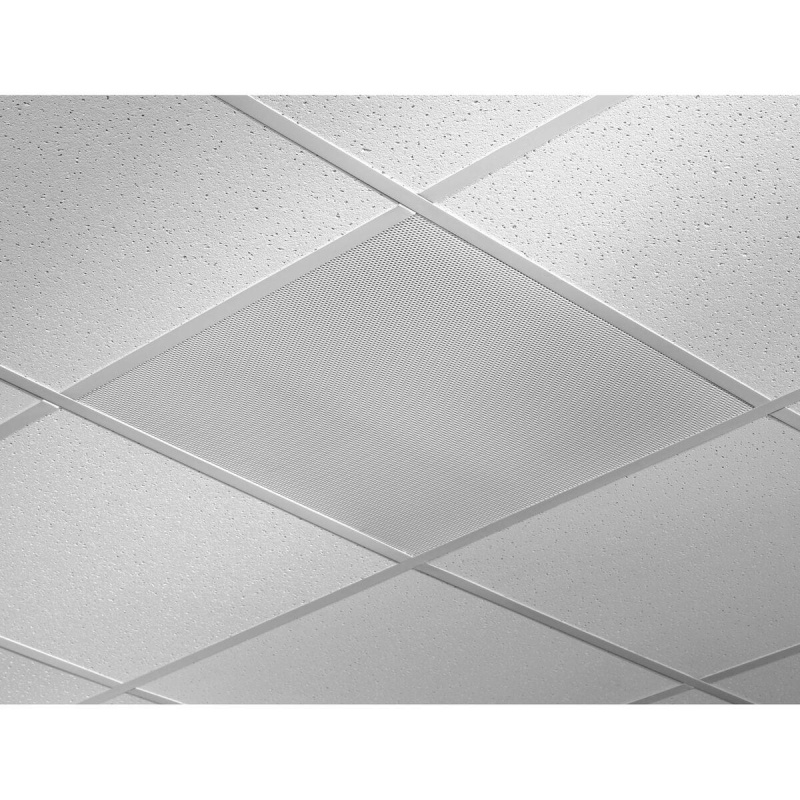

The QUAM SYSTEM 19 is a complete 2-way loudspeaker assembly with perforated steel baffle, and integral molded fiber enclosure. Finish is a white baked epoxy hybrid. Intended use in an indoor environment, mounted parallel to floor plane in a 24" wide suspended ceiling tile grid for signal tone, voice, and music. The QUAM SYSTEM 19 is UL Listed 1480-(UEAY, UAEY7-Canada) when installed in accordance with supplied installation instructions, requirements of NEC and AHJ. Made in Chicago, USA.
Specifications: • 70.7V transformer: 20, 10, 5, 2.5, 1.25 watt • Average sensitivity: 91 dB 1W/1m • Power rating: 30 watts RMS • Max. system output: 104 dB SPL, 20W/1m • Frequency response: 60 Hz - 20 kHz • Nominal coverage angle: 100° included angle, -6 dB/ 2 kHz, half space.
Constant Voltage (70-Volt) Audio SystemsAudio distribution systems, especially those commonly used in department stores, warehouses, restaurants, etc., require that many loudspeakers be driven from a single audio amplifier over long runs of speaker wire. The "constant voltage" or "high impedance distribution" audio systems can be complex to understand at first, however, provides many advantages. Learn how to design your own 70-volt or 25-volt loudspeaker system.
