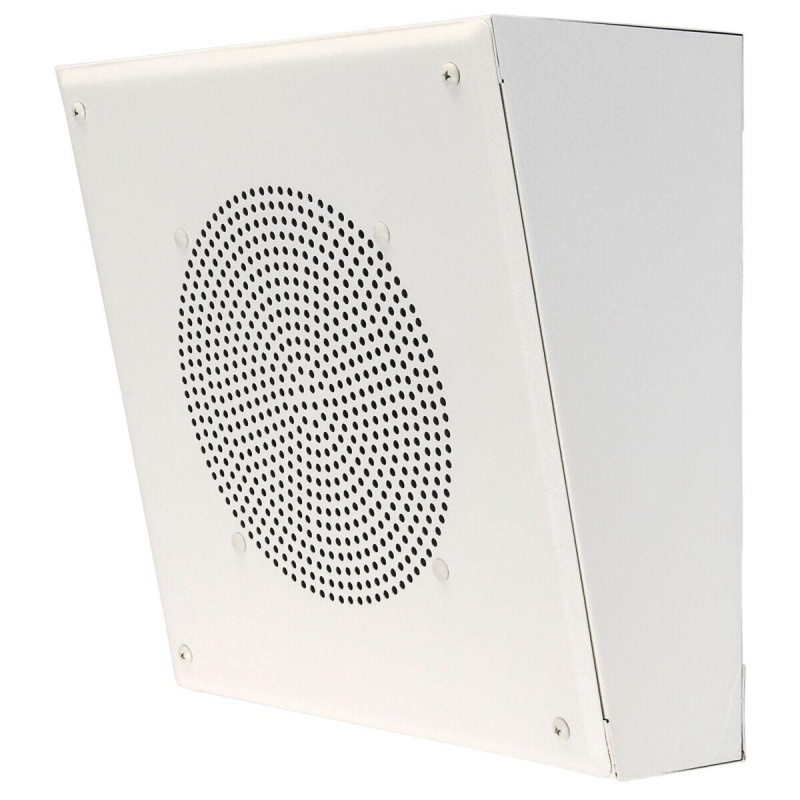

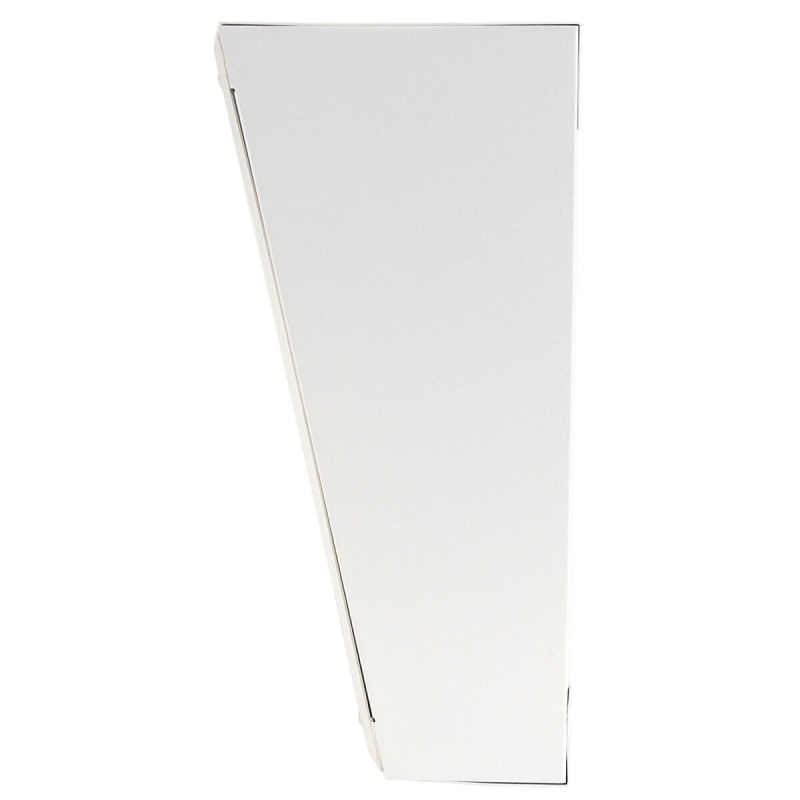

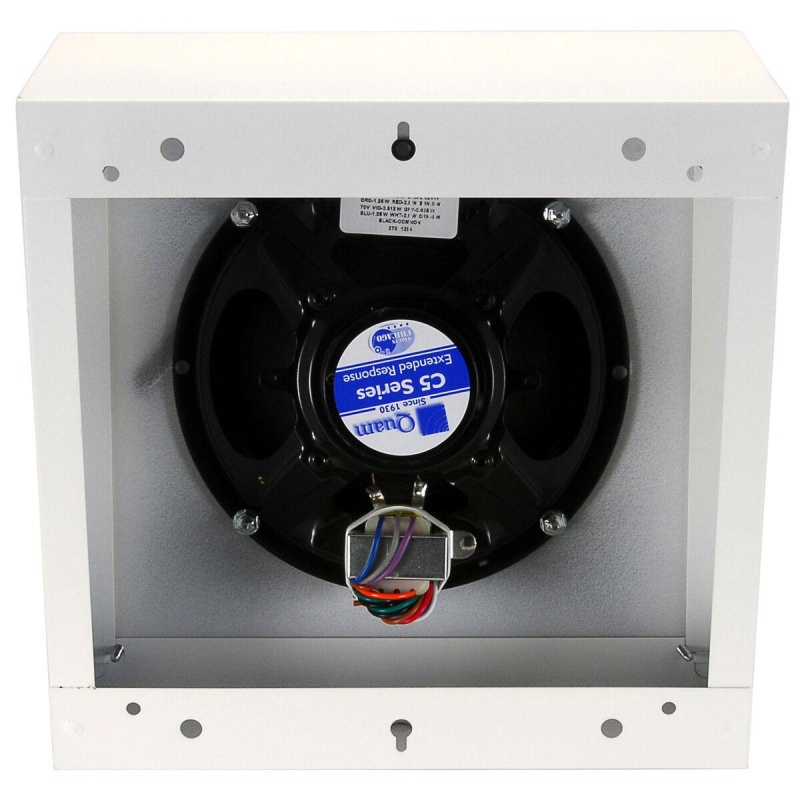

Quam's SYSTEM 3 has a 5 watt-25/70.7V pigtail transformer, and 22 gauge steel baffle and slanted enclosure. Both the baffle and enclosure are finished in a white baked epoxy hybrid. Intended use in an interior environment mounted on a vertical surface, downward firing for signal tones, voice, and music. Made in Chicago, USA.
Specifications: • 25/70.7V transformer: 5, 2.5, 1.25, 0.63, 0.31 watt • Average sensitivity: 92 dB 1W/1m • Power rating: 12 watts RMS • Max. system output: 99 dB SPL, 5W/1m • Magnet type, weight: BeFe ceramic, 4.8 oz. nominal • Frequency response: 65 Hz - 17 kHz • Nominal coverage angle: 100° included angle, -6 dB/ 2 kHz, half space • Audio connection: 7" color coded pigtails, pre-cut.
Constant Voltage (70-Volt) Audio SystemsAudio distribution systems, especially those commonly used in department stores, warehouses, restaurants, etc., require that many loudspeakers be driven from a single audio amplifier over long runs of speaker wire. The "constant voltage" or "high impedance distribution" audio systems can be complex to understand at first, however, provides many advantages. Learn how to design your own 70-volt or 25-volt loudspeaker system.
