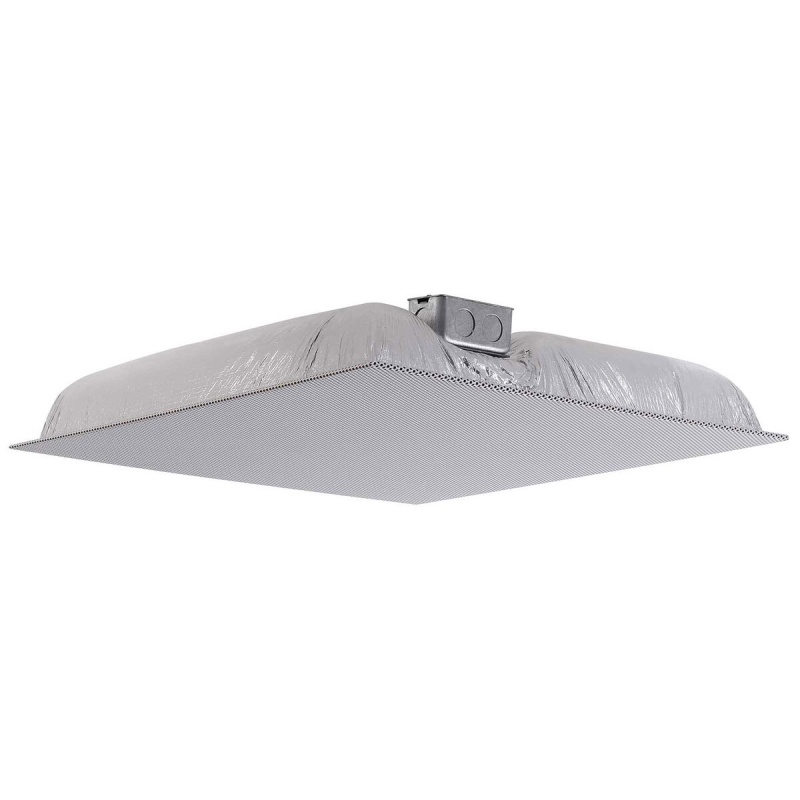

The Quam UL22/70/JB 24" x 24" lay-in tile speakers features an 8" loudspeaker with a 4W-70V rotary select transformer. In addition, the speaker has an integral junction box for secure and inspectable connections. The single gang mounting box includes a line supervision capacitor. The integral enclosure is constructed from 1,412 CID molded fiber. Grille is perforated steel with four seismic tie-off points with a white powder coat finish. No assembly required.
Specifications: • Woofer size: 8" • Sound pressure dB-SPL @ 10 ft. per tap: 0.25W = 78.5 dB; 0.5W = 81.3 dB; 1W = 84.1 dB; 2W = 87.2 dB; 4W = 89.8 dB • Power rating: 20W RMS, EIA 426A Standard • Frequency response: 60-17,000 Hz (EIA 426A Standard) • Magnet type & weight: BeFe Ceramic, 10 oz. nominal • Nominal coverage area: 100° (-6 dB / 2 kHz, half space) • Audio connection: Common, Dual, color-coded leads, pre-cut • Loudspeaker: 8C10PAFR • Transformer: 70V 4W-5 tap rotary select (4, 2, 1, 0.5, 0.25W) • UL listings: UL 1480-F, UL 2043, ASTM E84 • Installation: 2' x 2' or 2' x 4' wide ceiling tile • Dimensions: 23.75" L x 23.75" W x 3.44" D.
