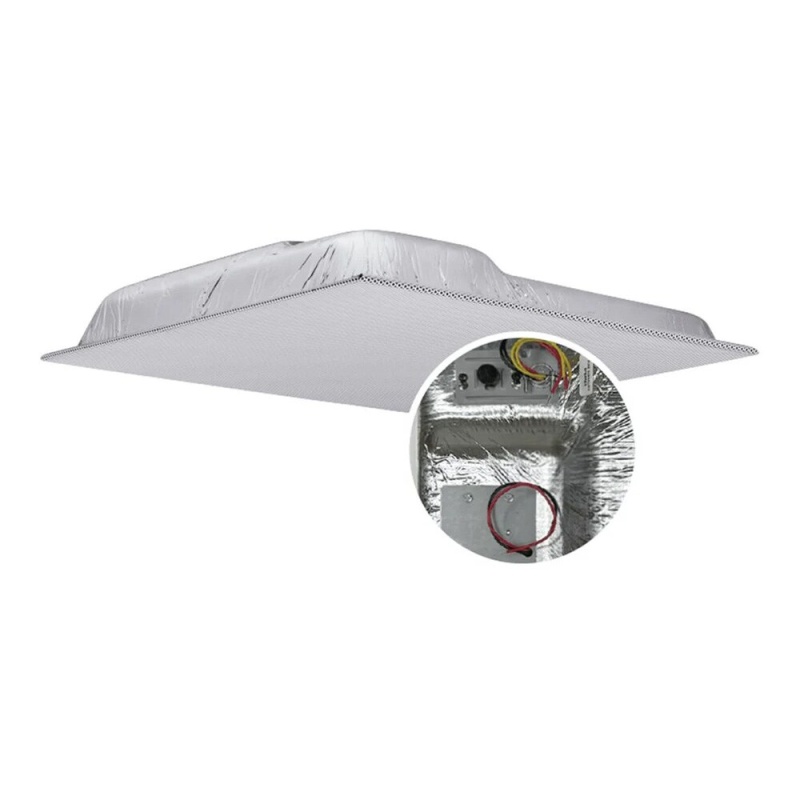

Quam UL24/8 24" x 24" Lay-in Ceiling Tile Replacement with Dual LoudspeakersUL24/8 is a UL Listed dual speaker unit designed for emergency communication and general paging, all housed in a space-saving tile-replacement configuration. The fire signaling speaker is intended solely for fire alarm and emergency communication use. The paging speaker is designed for standard signaling applications. This 2’ x 2’ unit delivers high voice clarity and efficient performance in a lightweight, low-profile design. The fire alarm speaker features a 4W-25/70V rotary tap transformer and includes a line supervision capacitor. The paging speaker operates with an 8 Ohm impedance. No assembly is needed.
SpecificationsApplication
Intended Use: Lay-in ceiling tile replacement - FIRE SIGNALING: Fire alarm and mass communication only, PAGING: General signaling only Program Material: Mass notification and emergency communications, signal tones, and voice Installation: Fits in a 2'x 2' or 2'x 4' wide ceiling tile grid
Audio Performance
Average Sensitivity at 10' per Tap: FIRE SIGNALING: 1/4W=74.5dB, 1/2=77.3, 1=80.3, 2=83.1, 4=85.5, PAGING: 89dB SPL, 1W/1MLoudspeaker Power Rating: FIRE SIGNALING: 20W RMS, EIA 426 Standard, PAGING: 12W RMS, EIA 426A Standard Magnet Type & Weight: FIRE SIGNALING: BeFe Ceramic, 10 oz. nominal, PAGING: BeFe Ceramic, 5 oz. nominal Frequency Response FIRE SIGNALING: 60Hz - 17kHz, EIA 426 Standard, PAGING: 65Hz - 17kHz, EIA 426A StandardNominal Coverage Angle: 100° Included Angle, -6dB/2kHz, Half space Audio Connection: 7 ½", Color-coded, Pre-tinned Leads
Component

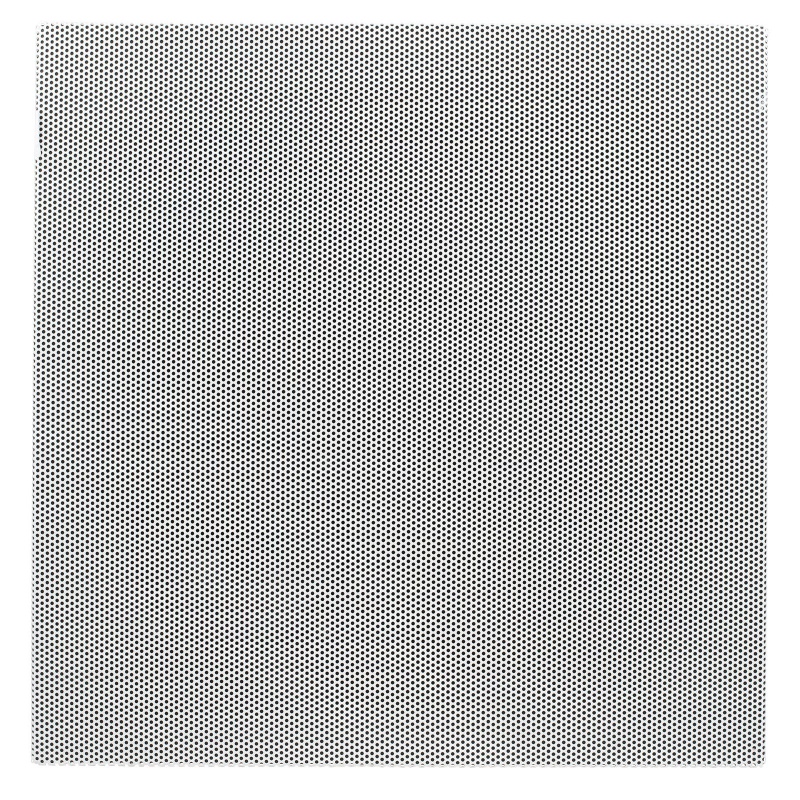

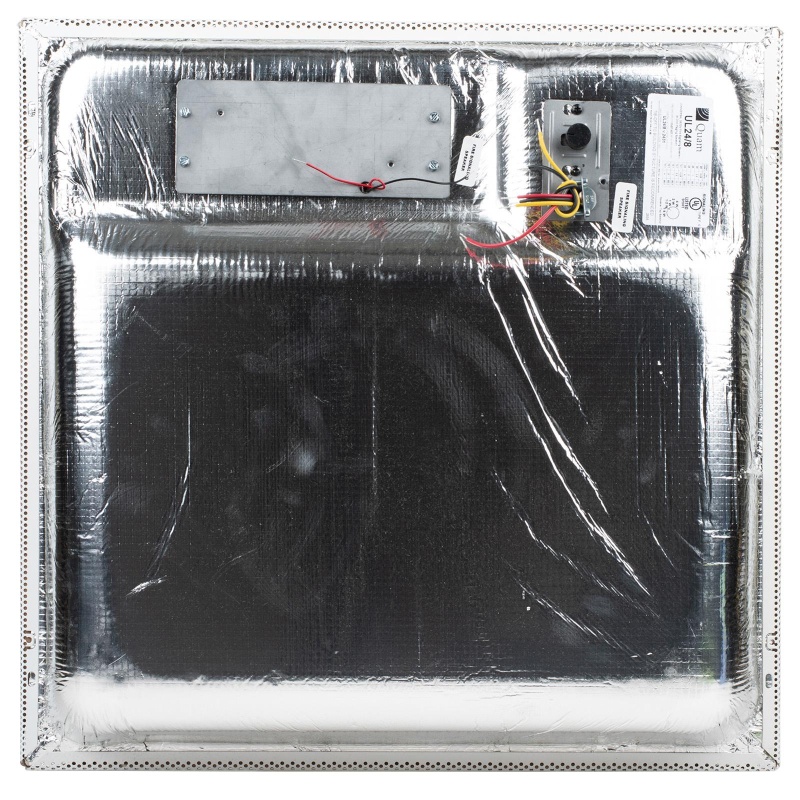

Dimensions:3-1/2" (H) x 23-13/16 " (W) x 23-13/16" (D) Weight:9 lbs. Loudspeaker Model: FIRE SIGNALING: 8C10PAFR, PAGING: 8C5PAX Loudspeaker Specs: FIRE SIGNALING: 8" O.D. loudspeaker, 10 oz. magnet, fire retardant, PAGING: 8" O.D. loudspeaker, 5 oz. magnet Transformer: FIRE SIGNALING: 4W, 25V (yellow) and 70V (red) rotary select with 5 taps (0.25W, 0.50W, 1W, 2W, 4W), PAGING: N/A-8 Ohm impedance Integral Enclosure: 1,283 CID, molded fiber Grille: Perforated steel, with four(4) seismic tie-off points Finish: White powder coat finish Other: FIRE SIGNALING: A 10uF, 150V, line supervision capacitor is includedUL Listed 1480: (FIRE SIGNALING) When installed per supplied installation instructions and requirements of NEC/AHJ. UL Listed 2043: (FIRE SIGNALING) Suitable for use in air-handling spaces. Material and construction permits use where ceiling plenum is part of the air handling system. ASTM E84: (FIRE SIGNALING) Includes integral backbox that meets/exceeds flame and smoke test w/ 3hr. burn rating. CSFM Certified #7320-2288:0500: (FIRE SIGNALING) Listed as speakers for use with separately listed compatible fire alarm control units. UL Listed 1480A (Type G): (PAGING) When installed per supplied installation instructions and requirements of NEC/AHJ. UL Listed 2043 (PAGING) Suitable for use in air-handling spaces. Material and construction permits use where ceiling plenum is part of the air handling system.
