NYS231BG – Overview

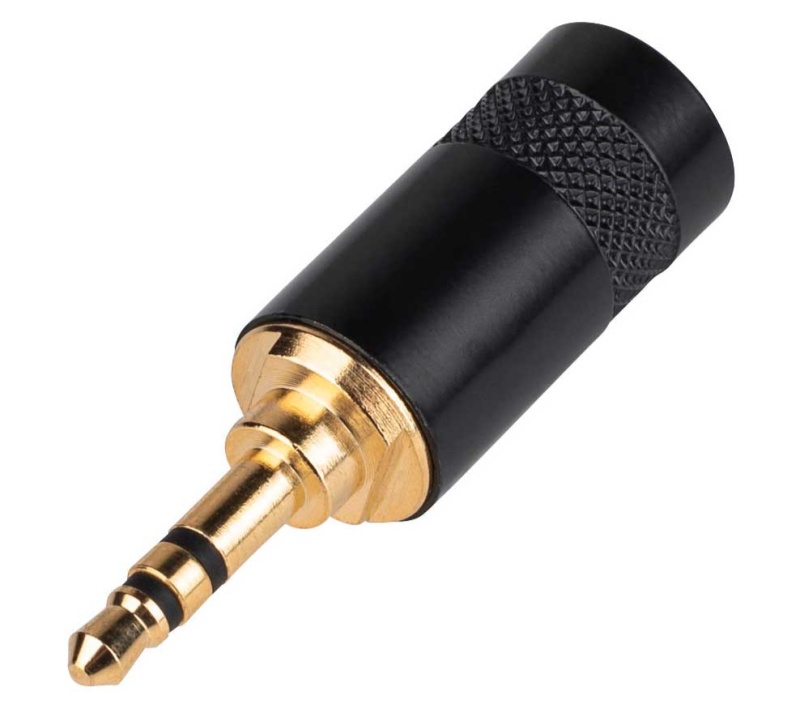

The Rean NYS231BG is a 3.5mm 3-Pole Plug that features Gold Plated Contacts & a Black Metal Handle.
Specifications:
Electrical Contact Resistance: ≤ 10 mΩ Insulation Resistance: ≥ 200 MO(Initial) Dielectric Strength 0.5 KVdc 50HZ Mechanical
Lifetime: > 5,000 Mating Cycles Insertion and Withdrawal Force: 5 – 40 N Cable O.D.: – max 4.5 mm for standard outlet – max 6.4 mm for large outlet (* L) – max 8.5 mm for large outlet (* LL) Material
Plug Finger: Brass Sleeve: Zinc Retainer Ring: PA66+30%GF Soldering Contact: Phosphor Bronze Cable Clamp: Steel Insulation: PP Housing: Zinc Plug Finger Plating: Nickel Sleeve Plating: Nickel Soldering Contact Plating: Tin Cable Clamp Plating: Tin Housing Plating: Nickel
