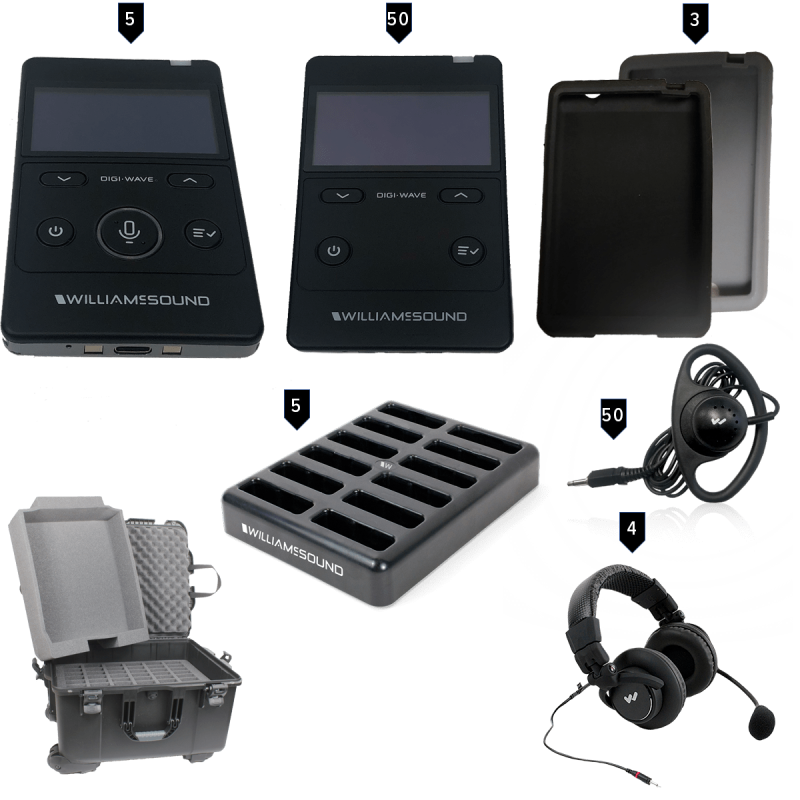

System Includes (5) DLT 400 transceivers (50) DLR 400 RCH receivers (4) MIC 158 headset microphones (50) EAR 022 surround earphones (5) CHG 412 12-bay charger (1) CCS 054 carry case (4) CCS 061 GR grey silicone skin (1) CCS 061 BK black silicone skins How It Works
CCS 054 Dimensions: 26.2″ L x 19.7″ W x 13.2″ H Weight: 23 lbs. Note: The CCS 054 replaces the CCS 049. CHG 412
Dimensions: 9″L x 7″W x 1.5″H (23 cm L x 17.8 cm W x 3.8 cm H) Weight: 1.8 lbs (845 g) Enclosure: Black, ABS plastic with metal base Power Supply Input: TFP 047, 90-240 VAC input, 1.5 A max * Power Supply: Universal DC adapter, 5 VDC – 6A output, center positive Output Rating: 5 VDC, 0.5 A per bay (12 charging bays) Charging Time: ~5 hours Unit Capacity: 12 Units Compatible Units: Transceiver: DLT 400 Receiver: DLR 400 RCH Indicators: Charge status indicators on DLT or DLR Approvals: CE, FCC, WEEE, RoHS, CB Warranty: 2-year (cables and power supply warranty for 90 days) * Eight separate CHG 412s (each powered by their own TFP 047 power supply) can be connected to a 15-amp circuit.
DLR 400 RCH Dimensions 4.22″W x 2.60″H x 0.50″D (107.3 mm x 66 mm x 12.6 mm) Weight 3.3 oz (94 g) including battery Color Black Battery type Lithium Polymer with smart charge built into transceiver; 1800 mAH Battery life Up to 32 hrs per charge @ 1ch Rx Power Save Auto Sleep Mode after 5 minutes of no RF signal from compatible devices Charge time 5 hrs. approx. System Voltage OLED 14VDC; RF 5VDC; Logic 3.3 VDC Operating frequencies 2.4 GHz (ISM band); 2402 – 2476 MHz FHSS Audio Frequency response (-3dB Level) Intercom Mode: 100 – 7,200 Hz Other Modes: 100 – 11,500 Hz SNR 73 dB (A-weighted) THD 0.1 % (Default Volume, 1kHz) Headphone Output 3.5 mm TRRS headphone jack; 25 mW, R32 Ω Line Audio Output USB-C, Adjustable Level Range Up to 900 ft (274 m) (depending upon environmental conditions) Modulation FSK RF Sensitivity -92 dBm Security 87-bit encryption (300 Series Compatible), 87+128 bit Encryption, Encryption PIN, Lock for settings Indicators OLED LEDs Bi-color, changing green and red LED at top Charging Connectors USB-C; Two contacts for use with CHG 412 Compatible Units DLT 400, DLT 300 with some limitations Operating Tempurature Range 14º to 113ºF (-10º to 45ºC) Approvals FCC, Industry Canada, CE, RoHS 3, WEEE, RCM, ANATEL, KC, Giteki Warranty 2-year warranty against component failure and manufacturing defects; 6 months on internal battery
This product is sold brand new. A manufacturer warranty applies only when the manufacturer provides one for this item.
Return requests must be submitted within 14 days of delivery and approved by our RMA department before the item is shipped back. Non-defective returns may be subject to a minimum 25% restocking fee and return shipping charges. Unauthorized returns are not eligible for credit or refund. Read the full return policy.
DLT 400 Dimensions 4.22″W x 2.60″H x 0.50″D (107.3 mm x 66 mm x 12.6 mm) Weight 3.3 oz (94 g) including battery Color Black/Silver (Front/Back) Case Material Black ABS plastic Battery type Lithium Polymer with smart charge built into transceiver; 1800 mAH Battery life Up to 16 hrs talk time per charge@ 1ch Tx and 1ch Rx Power Save Auto Sleep Mode after 5 minutes of no RF signal from compatible devices Charge time 5 hrs. approx. System Voltages OLED 14VDC; RF 5VDC; Logic 3.3 VDC Operating frequencies 2.4 GHz (ISM band); 2402 – 2476 MHz FHSS Audio Frequency response (-3dB Level) Intercom Mode: 100 – 7,200 Hz Other Modes: 100 – 11,500 Hz SNR 73 dB (A-weighted, default Rx volume with mic input ) THD 0.1 % (Default Volume, 1kHz) Microphone input Internal microphone (disabled when MIC jack engaged) and 3.5 mm phone jack (sleeve) with electret microphone bias, adjustable gain with 63dB range. Line Input USB-C, Adjustable level Headphone Output 3.5 mm TRRS headphone jack; 25 mW, R 32 ohms Audio Output Headphone: Max SSPL 90 111.8dB (EAR 013), 116.8dB (EAR 041) Line: USB-C, Adjustable level Range Up to 900 ft (274 m) (depending upon environmental conditions) Modulation FSK RF Output 19 dBm Typical Security 87-bit encryption (300 Series Compatible), 87+128 bit Encryption, Encryption PIN, Lock for settings Side tone -6 dB below volume, tone variation (Off, Low and High settings available) Indicators OLED LEDs Red LED around Talk button when enabled; Bi-color, changing green and red LED at top Charging Connectors USB-C; Two contacts for use with CHG 412 Compatible Receiver DLR 400 RCH, DLR 400 ALK, DLT 300 with some limitations and DLR 360 with some limitations Operating Temperature Range 14º to 113ºF (-10º to 45ºC) Approvals FCC, Industry Canada, CE, RoHS 3, WEEE, RCM, ANATEL, KC, Giteki Warranty 2-years warranty against component failure and manufacturing defects. 6 months on the internal battery. See Full Warranty on the website for details.
EAR 022 Style Around-ear speaker Plug 3.5mm mono Cord 39″ Driver Size 23 mm Nominal Impedance 32Ω Freq. Response 20 – 20kHz Weight 15g Max Power Input 30 mW Sensitivity 118 dB @ 1kHz
Warranty 2 Years
