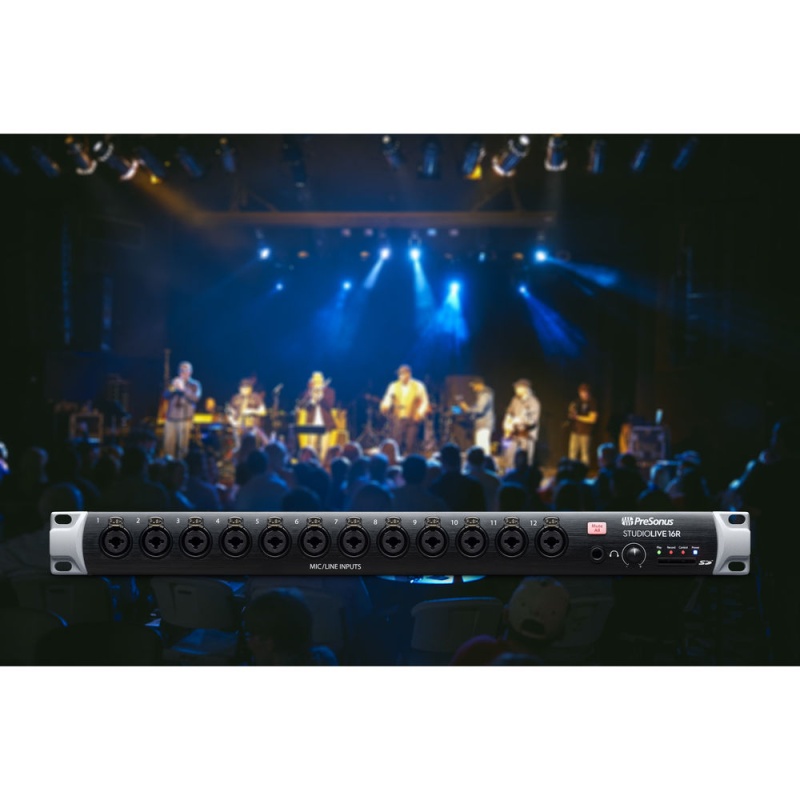

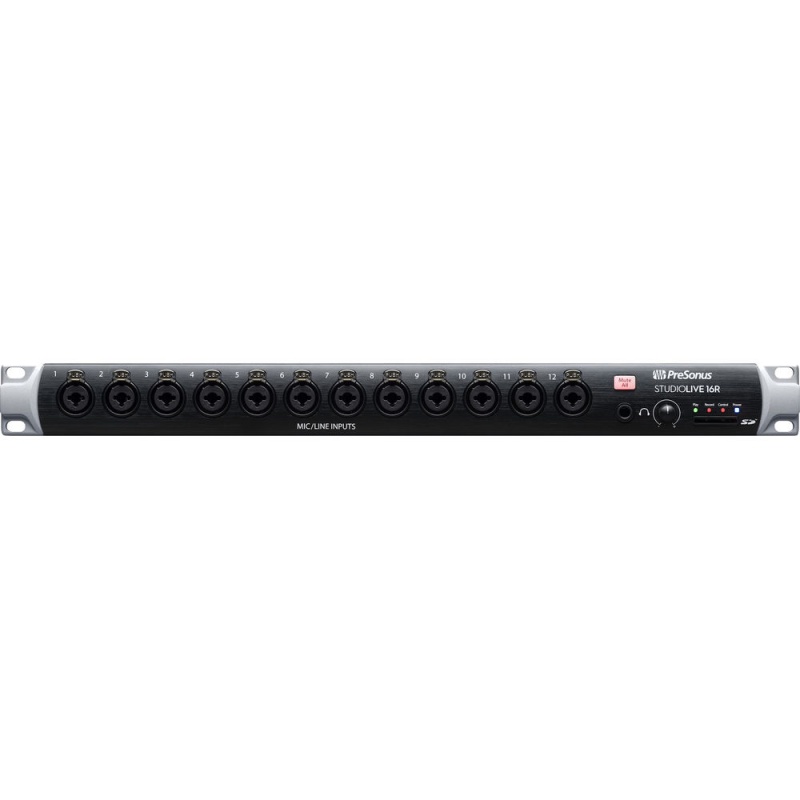

Key Features Metro: Live Remote Mixing Over Internet Rackmount Mixing and Processing Power Control with Mac, Windows & iOS 16 XLR-1/4″ Combo Inputs + RCA Stereo 16 Recallable XMAX Mic Preamps 6 x 1/4″ TRS FlexMix Outputs 3rd Generation Fat Channel Processing AVB Network Ready Built-In SD Recorder Includes Power Cord and USB Cable The PreSonus StudioLive 16R is a Series III, 16-channel 1 RU stagebox and rack mixer designed to serve as a simple stage box, rack mixer, or combination stagebox and monitor mixer. The 16R is equipped for AVB networking, allowing it to be connected to another Series III mixer via a single, lightweight Cat 5e or Cat 6 Ethernet cable, eliminating the need for heavy, expensive copper snakes, and the signal degradation caused by long cable runs. All the onboard XMAX microphone preamps can be remotely controlled from the front-of-house position. In stage box + monitor mixer mode, the StudioLive 16R not only serves as a professional networked stage box, but is a full-blown monitor mixer with advanced processing and mixing power.
The StudioLive 16R offers professional-quality sound with its on-board Series III processors and 3rd generation Fat Channel, which implements a plug-in-style workflow that features vintage-style EQ and compression options on every channel, from classic tube limiters to passive EQs. In addition to channel processing, the StudioLive 16R offers 6-band, fully parametric EQ on all mix outputs. There are six FlexMixes that can be individually designated as aux, subgroup, or matrix mixes, while eight Filter DCAs offer easy and flexible control over groups of channels.

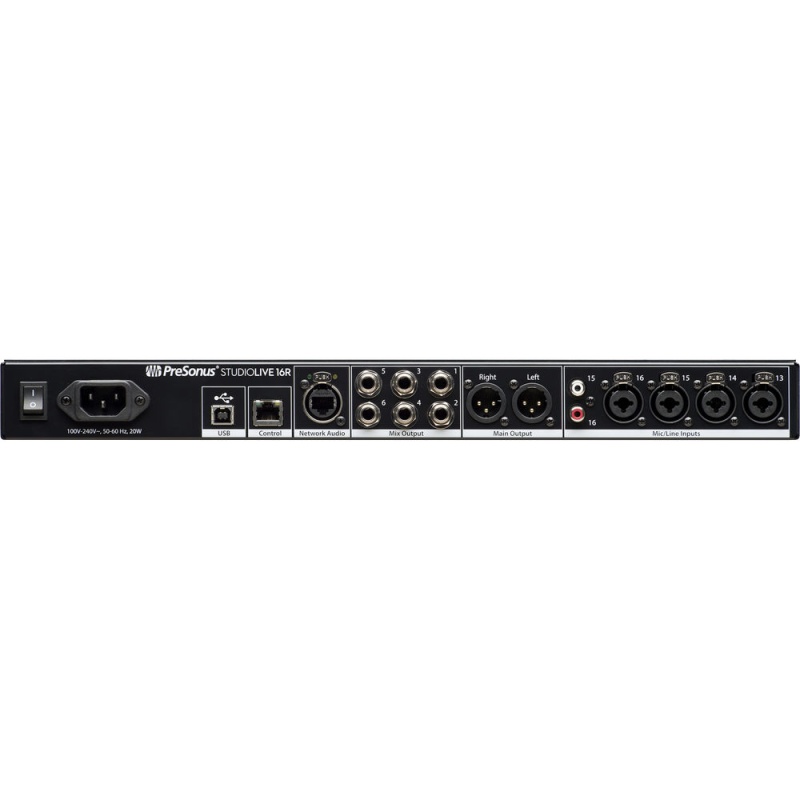

There are 16 combo XLR-1/4″ inputs (mic/line) and an additional set of stereo RCA inputs for flexibility. The six FlexMix outputs feature 1/4″ TRS connectors, while the main output offers balanced XLR connectors. A built-in SD card recorder allows you to quickly and easily record the main mix or any other stereo mix without the need for a computer. What’s more, you can simultaneously multitrack record to your laptop via USB or AVB and record in stereo to SD.
The StudioLive 16R ships with an integrated software package including Studio One Artist, UC Surface, and Capture. Studio One Artist is a full-featured DAW for recording, mixing, and playing back tracks. The software offers remote control over the XMAX preamps and the Fat Channel processing. UC Surface offers touch-control for Mac, Windows, Android, and iPad, allowing you to control the mixer wirelessly from anywhere in the room, while Capture allows you to completely automate virtual soundchecks and record shows. Additionally, the StudioMagic plug-in suite is included, which provides a wealth of fresh sounds and effects from companies such as Eventide, Lexicon, SPL, MAAG, Brainworks, and Arturia. The StudioLive 16R ships with a power cord and a USB cable.
PreSonus Metro, Live Remote Mixing PreSonus Metro is the latest innovation for StudioLive Series III mixers, delivering a first-to-market solution for live remote mixing over the Internet with high-quality low-latency audio streaming. With Metro, anyone anywhere in the world can connect to a StudioLive Series III mixer over the Internet and remote control the mixer using UC Surface while listening in real-time with their local audio device. For existing customers, a free firmware update with Metro is available from the PreSonus website. Inputs and Outputs 18 total inputs 16 mic/line channel inputs + 2 RCA inputs 6 x 1/4″ TRS FlexMix outputs 2 x XLR (L/R) main outputs Stereo headphone output Channels and Buses 16 input channels 1 stereo digital return (SD Card, AVB, or USB) 10 buses: 6 FlexMixes (can be designated as aux, subgroup, or matrix mixes) 2 internal effects sends Stereo main bus 6 Filter DCAs for easily and flexibly controlling groups of channels Networking Connections 1 Ethernet control network port Dynamic, self-assigned, and manual IP address modes 1 Ethercon AVB audio network port Recording On-board stereo SD recorder 18 x 18 USB recording interface 32 x 32 AVB recording interface Signal Processing Intuitive Fat Channel signal processing on every channel with: A/B settings comparison High-pass filter and polarity reverse Gate/expander with sidechain Compressor with sidechain 4-band parametric EQ on inputs 6-band parametric EQ on outputs Limiter Delay on every input Delay on every output Professionally programmed library of presets Vintage EQ and compressor models available on every input: Passive EQ Vintage EQ Tube compressor FET compressor 8 x 31-band graphic EQs 2 internal effects buses: Combination of reverbs and delays with modern and vintage options Built-in real-time analyze Scenes and Presets Create, save, and edit up to 100 scenes Scene management with: Scene Safe—prevents a scene change from affecting designated “safe” channels Create, save, and edit channel settings and copy/paste between channels Advanced channel preset options can save and recall: Channel type and name Input settings (preamp, +48V phantom power, polarity, pan) Fat Channel A & B settings Bus assignments Aux and effects send levels and pan Select button color 8 Quick Scenes 8 Mute groups Digital Studio-quality converters with 115 dB dynamic range 48 kHz operation with 24-bit resolution (44.1 kHz option coming soon) Actively Integrated Software UC Surface touch control software for Mac, Windows, iPad, and Android Studio One Artist digital audio workstation software for Mac and Windows Capture multitrack recording software for Mac and Windows QMix-UC aux-control software for iOS and Android available free from Apple App Store and Google Play PreSonus StudioLive 16R Specs Key Specs Max I/O Capacity 18x Input / 6x Output Number of Analog Input Channels 16 (0 Mono / 16 Stereo) Number of Mic Preamps 16 Number of Analog Output Channels 2 Faders & Level Adjustment No Analog Inputs 1x Stereo RCA Unbalanced Input 12x Combo XLR-1/4″ TRS Mic/Line Input Analog Outputs 6x 1/4″ TRS Balanced Mix Output 1x 1/4″ TRS Headphone Output 2x XLR Balanced Main Output Digital I/O 1x RJ45 (Control) 1x etherCON AVB USB I/O 1x USB-B 2.0 (Recording) Wireless Wi-Fi Rack Mountable Yes Mixer Max I/O Capacity 18x Input / 6x Output Number of Analog Input Channels 16 (0 Mono / 16 Stereo) Number of Mic Preamps 16 Number of Analog Output Channels 2 Mix Routing 10x Bus Presets Yes Faders & Level Adjustment No Signal Processing Gain/Trim Range Mic: 0 dB to +60 dB EQ 31-Band Graphic Audio Delay Yes Digital Audio Sample Rates 48 kHz Bit Depth AD/DA Conversion: 24-Bit Performance Frequency Response Headphone Output: 20 Hz to 20 kHz ±0.5 dB Main Output: 20 Hz to 20 kHz ±0.5 dBu (Unity Gain) Max Input Level Mic Input: +12 dBu RCA Input: +12 dBu Headphone Output Power 100 mW per Channel into 60 Ohms (Max) I/O Impedance 1/4″ Mix Output: 100 Ohms Mic Input: 1 Kilohms XLR Main Output: 100 Ohms SNR Headphone Output: 96 dB at Max Gain Mic/Line Input to Main Output: 94 dBA at Unity Gain (+4 dBu Reference) THD Mic Input to Main Output: THD+N Headphone Output: 0.01% at Max Gain (Unweighted) Connectivity Analog Inputs 1x Stereo RCA Unbalanced Input 12x Combo XLR-1/4″ TRS Mic/Line Input Analog Outputs 6x 1/4″ TRS Balanced Mix Output 1x 1/4″ TRS Headphone Output 2x XLR Balanced Main Output Phantom Power +48 V ±2 V (Selectable on Individual Inputs) Digital I/O 1x RJ45 (Control) 1x etherCON AVB MIDI I/O No USB I/O 1x USB-B 2.0 (Recording) USB I/O Capacity 18x Input / 18x Output Expansion Ports No Wireless Wi-Fi External Display I/O No Compatibility OS Compatibility Computer: Windows 7 or Later / macOS 10.8 or Later Mobile: Android/iOS RAM Requirements 4 GB, 8 GB Recommended Mobile Device Compatibility Android Tablet Android Smartphone iPad Power Input Power 90 to 230 VAC, 50 / 60 Hz Physical Rack Mountable Yes Rackmount Size 1 U Operating Conditions 32 to 104°F / 0 to 40°C Dimensions 1.8 x 19 x 12″ / 45 x 483 x 305 mm Weight 8.6 lb / 3.9 kg Packaging Info Package Weight 13.35 lb Box Dimensions (LxWxH) 24.2 x 17.7 x 6.1″
