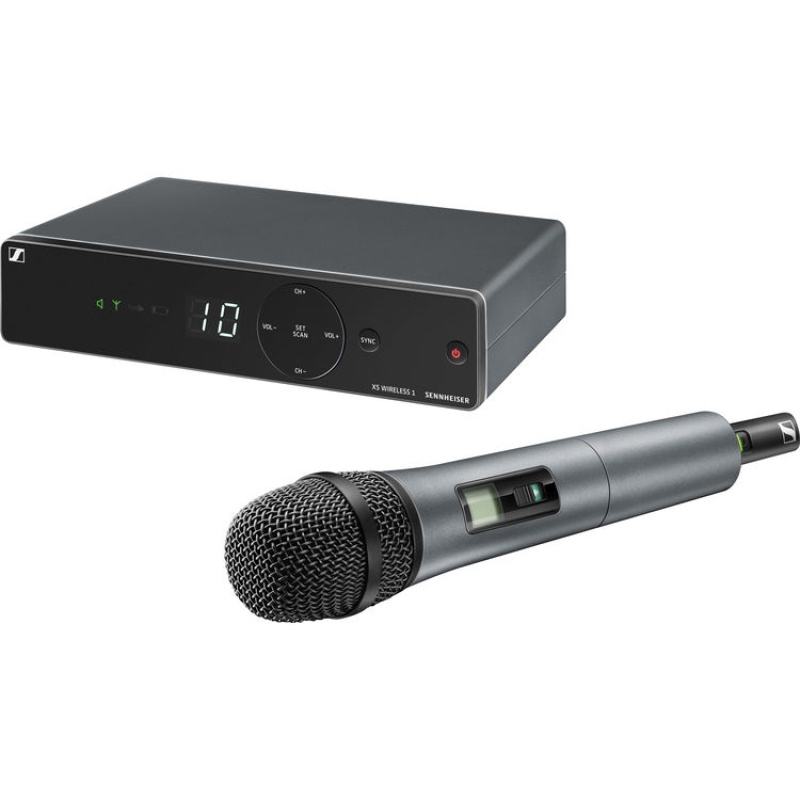

Sennheiser XSW 1-825 Overview The XSW 1-825-A UHF Vocal Set with e825 Dynamic Microphone from Sennheiser is an easy to use all-in-one wireless system for singers and presenters. It can be used to capture audio for live sound, stage, and theater applications.
The set includes an intuitive stationary receiver for quick set-up and hassle-free handling, as well as a vocal microphone and microphone clamp. It is built with antenna-switching diversity reception and features automatic frequency management and synchronization via remote channel. Up to 10 compatible channels are available. Additionally, an AC power adapter and two AA batteries are also included.
Featuring Sennheiser’s renowned evolution microphone capsule e825 Selectable UHF frequencies within a large bandwidth Up to 10 compatible channels Diversity reception Sennheiser XSW 1-825 Specs Key Specs Wireless Technology Analog UHF Diversity Yes Max Operating Range 100′ / 30.5 m Receiver Type 1x Tabletop Number of Audio Channels 1 Included Transmitters 1x Handheld Microphone Type 1x Handheld Included Charging Case No System Wireless Technology Analog UHF Diversity Yes RF Frequency Band A: 548 to 572 MHz Number of RF Channel Frequencies 80 Max Operating Range 100′ / 30.5 m Max Transmitters per Band 10 Encryption No Built-In Recorder No Timecode Support No Mobile App Compatible No Receiver Receiver Type 1x Tabletop Mounting Options No Antenna 2x Internal Number of Audio Channels 1 Audio I/O 1x XLR 3-Pin Balanced Mic/Line Output 1x 1/4″ TS Unbalanced Mic/Line Output Network I/O No USB/Lightning Connectivity No Gain Range 45 dB (5 dB Steps) Frequency Response 50 Hz to 16 kHz -3 dB Display Alphanumeric LED Power Requirements AC/DC Power Adapter Transmitters Included Transmitters 1x Handheld RF Output Power 10 mW Antenna Internal Input Level Microphone Audio I/O No USB I/O No Muting Off/On Switch Gain Range 0 to -30 dB (10 dB Steps) Auto-Level/Gain No Frequency Response 80 Hz to 14 kHz Sync Method 2.4 GHz QPSK Display LCD (Non-Backlit) Microphones Microphone Type 1x Handheld Polar Pattern Cardioid Frequency Response 80 Hz to 14 kHz Sensitivity 1.5 mV/Pa Color Black Power Transmitter Battery Type 2x AA (Included) Transmitter Battery Life 10 Hours Included Charging Case No AC/DC Power Adapter 12 VDC at 300 mA (Included) Physical Environmental Resistance No Housing ABS Dimensions Receiver: 7.9 x 5 x 1.7″ / 200 x 127 x 42 mm Transmitter: 10.2 x 2″ / 260 x 50 mm Weight Receiver: 12 oz / 340 g Transmitter: 8.6 oz / 245 g Microphone: 8.6 oz / 245 g Packaging Info Package Weight 3.11 lb Box Dimensions (LxWxH) 13.8 x 12.7 x 3.5″
