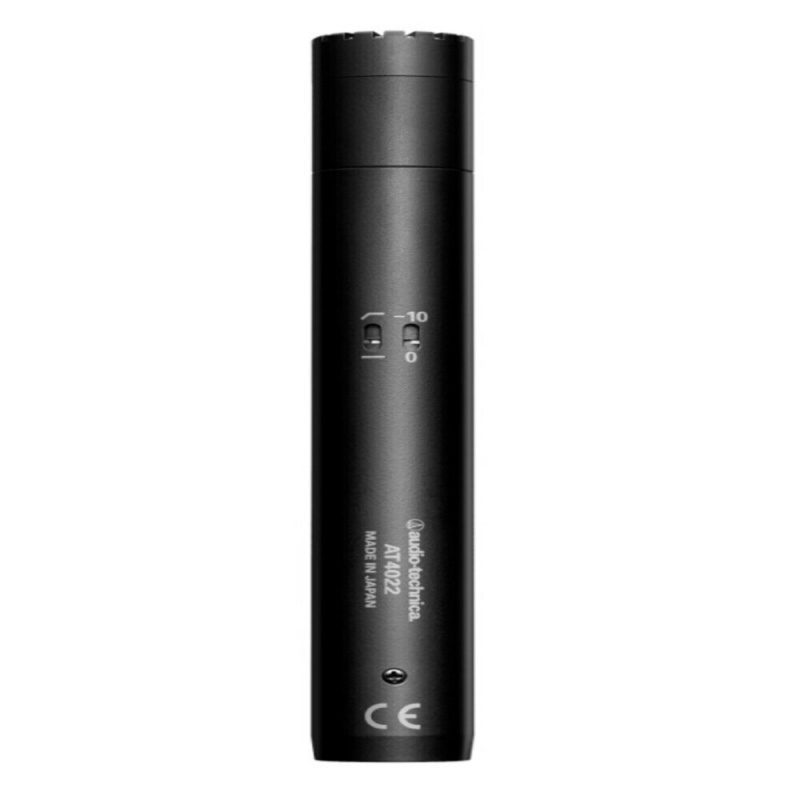

The low-profile AT4022 omnidirectional condenser recording mic is outstanding for piano, acoustic guitar, and other acoustic instruments. With flat, extended frequency response and wide dynamic range ideal for critical studio and live applications, the AT4022 handles high SPLs with ease. The microphones omnidirectional polar pattern preserves the sound of the recording location, delivers flat response and freedom from proximity effect. Its low-mass diaphragm improves transient response and reduces handling/mechanical noise transfer.
– Outstanding performance and rugged construction, ideal for critical studio & live applications – High SPL handling and wide dynamic range – Flat, extended frequency response – Switchable 80 Hz hi-pass filter and 10 dB pad – Omnidirectional polar pattern provides maximum ambient pickup – Low self noise perfectly suited for digital recording equipment – Exceptional reproduction of low frequency sounds – Low-mass element for superb transient response SPECIFICATIONS ELEMENT Fixed-charge back plate, permanently polarized condenser POLAR PATTERN Omnidirectional FREQUENCY RESPONSE 20-20,000 Hz LOW FREQUENCY ROLL-OFF 80 Hz, 12 dB/octave OPEN CIRCUIT SENSITIVITY -34 dB (19.9 mV) re 1V at Pa IMPEDANCE 250 ohms MAXIMUM INPUT SOUND LEVEL 146 dB SPL, kHz at 1% T.H.D.; 156 dB SPL, with 10 dB pad (nominal) NOISE 13 dB SPL DYNAMIC RANGE (typical) 133 dB, kHz at Max SPL SIGNAL-TO-NOISE RATIO 81 dB, kHz at Pa PHANTOM POWER REQUIREMENTS 48V DC, 3.0 mA typical SWITCHES Flat, roll-off; 10 dB pad WEIGHT 124 (4.4 oz) DIMENSIONS 144.0 mm (5.67″) long, 21.0 mm (0.83″) maximum body diameter OUTPUT CONNECTOR Integral 3-pin XLRM-type ACCESSORIES FURNISHED AT8405a stand clamp for 5/8″-27 threaded stands; windscreen; protective carrying case AUDIO-TECHNICA CASE STYLE S1
SPECIFICATION GRAPHS Click on the chart to view the larger image POLAR PATTERN FREQUENCY RESPONSE
