Easy to Build Portable Bluetooth Boombox One of the best things about this kit is that it requires no soldering. That's right, you won't need to fuss with any intricate soldering techniques. Instead, all the connections are designed to be direct plug-ins. This means that you can easily connect the various components together with a few simple crimped terminals.
Not only does this kit save you from the headache of soldering, but it also ensures a hassle-free assembly process. The clear wiring instructions and hole/enclosure dimensions provided will guide you step-by-step through the entire process, making it an enjoyable and stress-free experience. The simple wooden enclosure pictured is an approximate size to get the best sound from the 2-1/2" speakers. Use your creative woodworking skills and make a unique speaker/boombox come to life playing your favorite tunes.
Imagine the convenience of being able to listen to FM radio, play music saved on a flash drive, input music from another device, or stream your favorite play list wirelessly through Bluetooth, all thanks to this versatile kit. No matter what your preferred audio source is, you can be confident that your creation will be enjoyed by everyone around you.
But that's not all - we've made sure that recharging a Lithium Polymer battery is a breeze (battery not included). Simply plug the included USB cable into any USB-A powered port, and in a few hours you're ready to go. And here's the best part – you can still enjoy your music while it's charging! Which ever design you choose make sure you add a battery for true portable use.
Note: A 3.7V Lithium Polymer (LiPo) battery with a JST PH2.0 plug is required for full cordless operation.
Let's talk 3D printer. We've attached 3D printer zip files to enable you to create a vertical style Bluetooth speaker. The amplifier's faceplate is on the backside which enables charging in the rear so no cables are sticking out of the front. Front bass ports shoot the low end right at you, and are built into the 3D design. This is a simple box style design which is the perfect size for over all sound quality, but feel free to create your own unique shapes with your 3D printer.
This product is sold brand new. A manufacturer warranty applies only when the manufacturer provides one for this item.
Return requests must be submitted within 14 days of delivery and approved by our RMA department before the item is shipped back. Non-defective returns may be subject to a minimum 25% restocking fee and return shipping charges. Unauthorized returns are not eligible for credit or refund. Read the full return policy.
So, whether you are a seasoned woodworker, into 3D printing or just starting out, this kit offers a great opportunity to combine your love for woodworking with the ever-growing world of Bluetooth audio. With its ease of assembly and no-soldering-required design, you can confidently bring your vision to life and create a unique and functional piece that you can proudly display or gift to someone special.
Note: Use silicon sealer around the faceplate's rear sockets (after you plug everything in) to prevent air leaks. Use the power wire for the antenna wire since the battery comes with the a power plug.

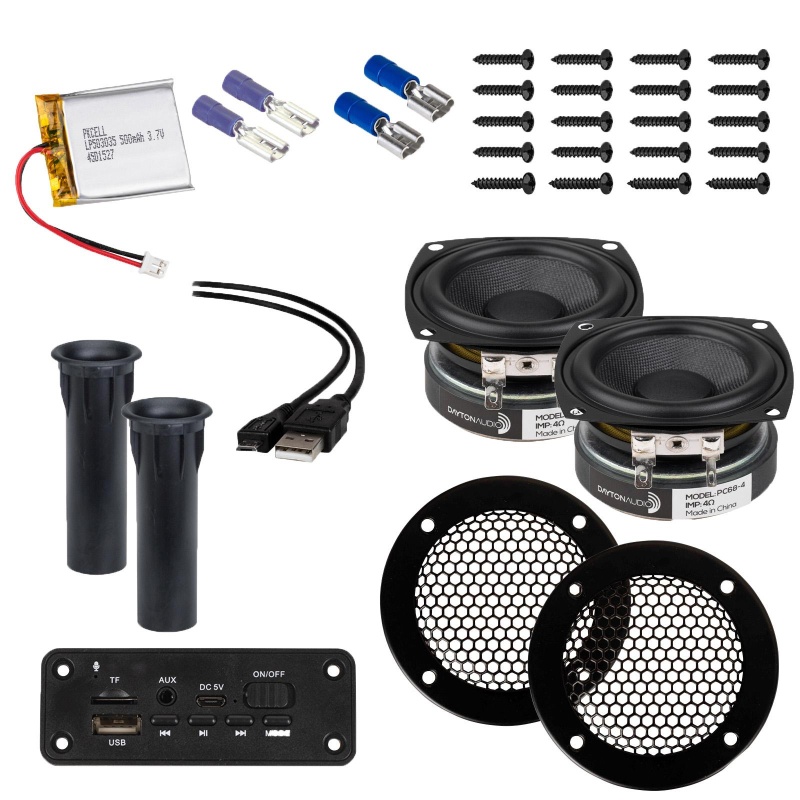

Kit Components:Part #QtyDescription1Bluetooth 5.0, FM, Media Player Faceplate 2 x 3W 5 VDC Amp Board2Dayton Audio PC68-4 2-1/2" Full-Range Poly Cone Driver23" Black Metal Speaker Grille2Port Tube 1" ID x 4" L Flared1USB 2.0 A Male to Micro-B Male Charge & Sync Cable 6 ft. -20.110" (16-14) Female Disconnect. -2#6 x 3/4" Philip Carbon Steel Pan Head Screw-Black -20.205" (16-14) Female Disconnect Note: Battery is not included. A 3.7V Lithium Polymer (LiPo) battery with a JST PH2.0 plug is required for full cordless operation.
Additional items (sold separately) that will help with the overall sound output and portability: – Sonic Barrier Acousta-Blue Denim Fiber Sound Damping Material – Acousta-Fill Nylon Polyfill Sound Damping Material – Adhesive Rubber Feet – Strap Type Cabinet Handle 10" – USB-C PD and USB-A QC3.0 Low Profile Car Lighter AdapterA 3.7V Lithium Polymer (LiPo) battery with a JST PH2.0 plug.
