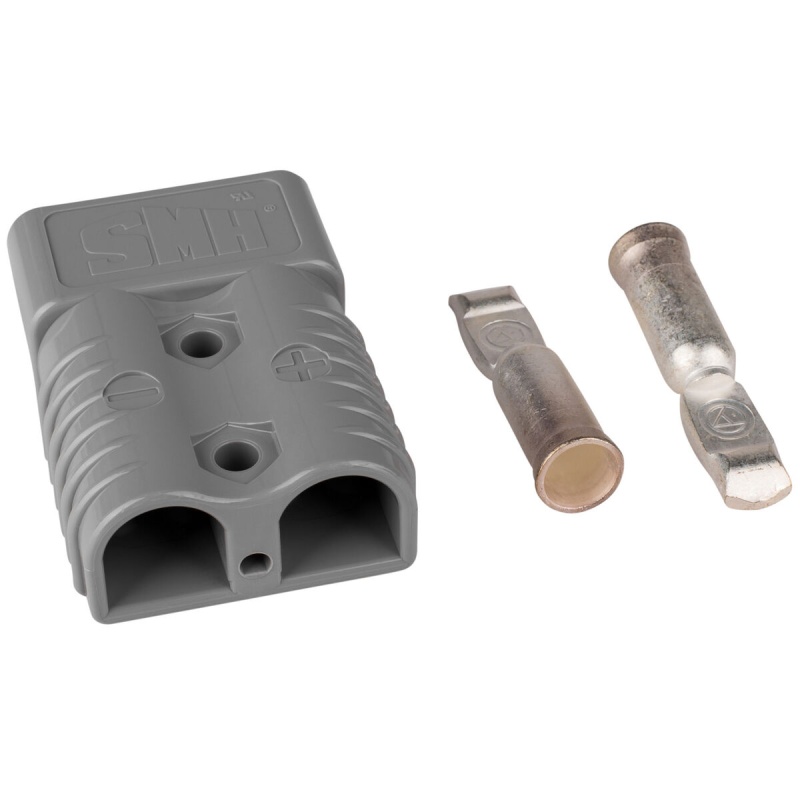

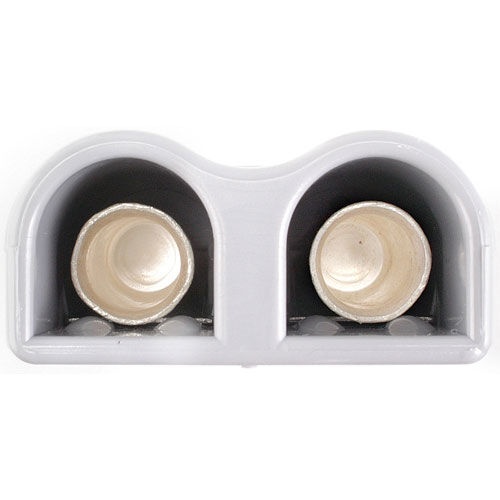

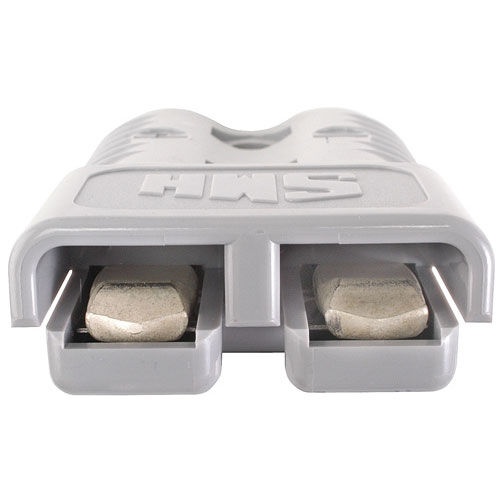

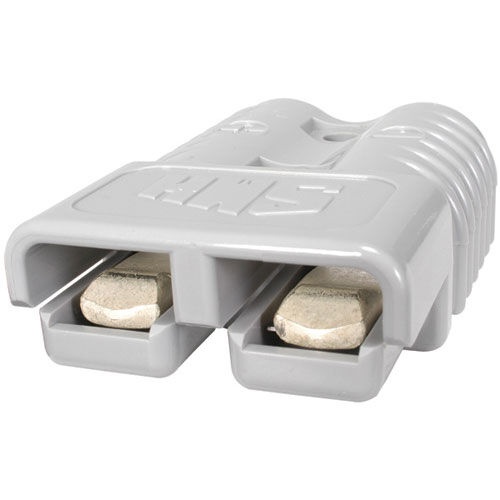

SMH high-current breakaway DC battery connectors are perfect for use as a quick disconnect for car audio amplifier power, RV and marine applications, and other high-current DC charging circuits. Underwriters Laboratories recognizes compatibility of SY Series battery connectors with Anderson Power Products SB® Series connectors. Requires two pieces for operation, sold individually. Dimensions: 3.13" L x 2.19" W x 1.0" H. SMH #SY6325G1.
Specifications
UL amperage*/voltage rating: 175 amps/600 VDC Operating temperature range: -20° to 105° C Current rating*: 175 amps on 1/0 AWG wire produces 30° C rise Insulation with standing test voltage (volts, dc): 2200dc Maximum wire insulation diameter: 0.75"/19 mm Average contact retention force: Approximately 300 lbs. Average contact resistance: With 1-3/4" (45 mm) of 1/0 AWG wire 100 µΩ Vibration resistance: Excellent Mating cycles: 10,000 / For disconnect use only Impact resistance: High Environmental restrictions: Protected-no hydrocarbon fluids Flammability Rating: UL94V-0 Average mating and unmating force: 25 lbs (11.25 kg) * For largest wire or cable size
• Recognized under the component program of Underwriters Laboratories, Inc. File No. E81817 • Listed by Canadian Standards Association for use with certified equipment. File No. LR82704
