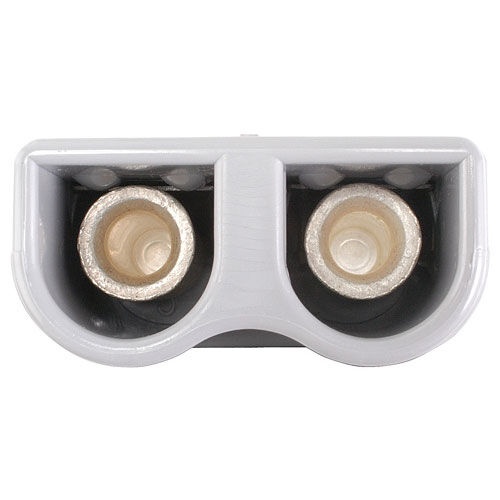

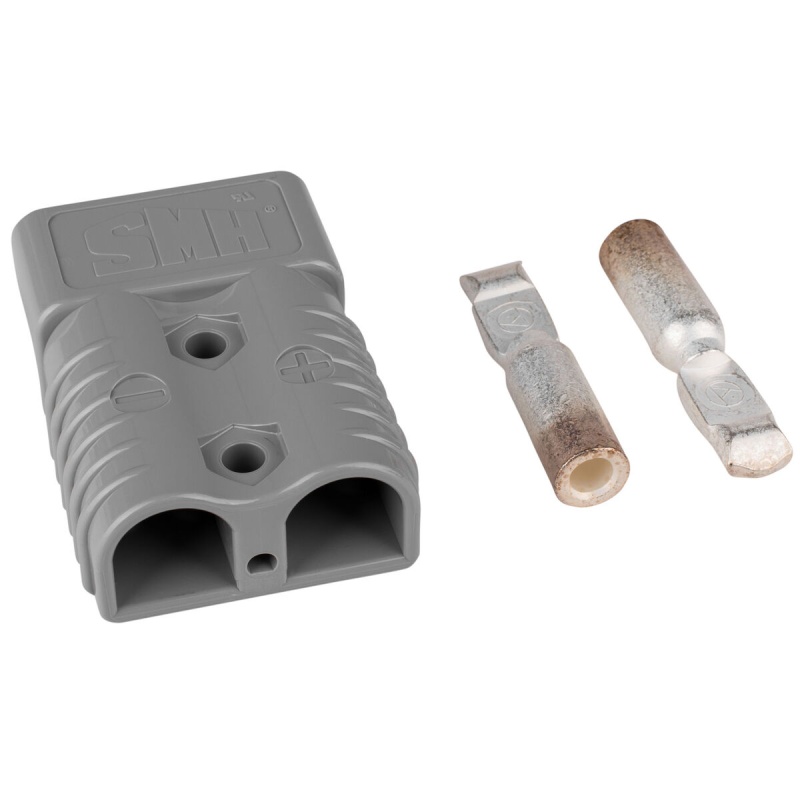

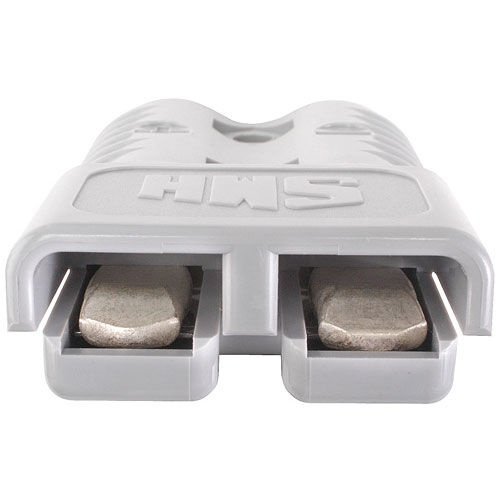

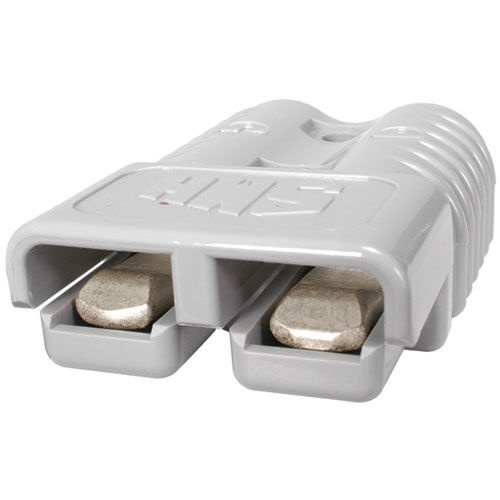

The Smh SY175 Series 4 AWG 175A breakaway DC power connector is designed for car audio amplifier power, RV and marine applications, and other high-current DC charging circuits. Underwriters Laboratories recognizes SY Series connector compatibility with Anderson Power Products SB® Series connectors. Two pieces are required for operation; this connector is sold individually.
The connector measures 3.13" L x 2.19" W x 1.0" H. Its UL amperage/voltage rating is 175 amps/600 VDC, and its operating temperature range is -20° to 105° C. The 175-amp current rating is specified on 1/0 AWG wire at a 30° C rise. Maximum wire insulation diameter is 0.75"/19 mm.
Other specifications: insulation withstand test voltage of 2200dc; average contact retention force of approximately 300 lbs; average contact resistance of 100 µΩ with 1-3/4" (45 mm) of 1/0 AWG wire; excellent vibration resistance; 10,000 mating cycles for disconnect use only; high impact resistance; protected environmental rating with no hydrocarbon fluids; UL94V-0 flammability rating; and average mating and unmating force of 25 lbs (11.25 kg).
Recognized under the component program of Underwriters Laboratories, Inc. (File No. E81817) and listed by the Canadian Standards Association for use with certified equipment (File No. LR82704).
