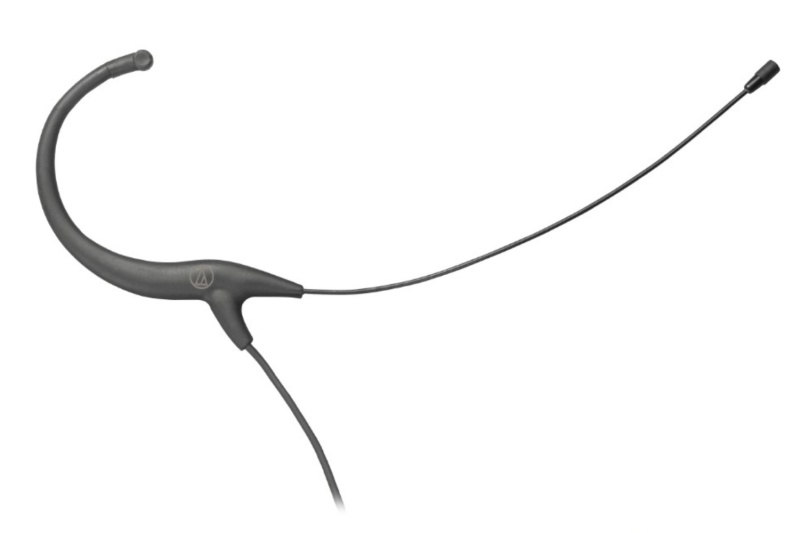

BP892cH Subminiature Omnidirectional Condenser Headworn Microphone, less power module. 1.4 (55 inches) permanently attached miniature cable terminated with locking 4-pin connector for use with Audio-Technica UniPak body-pack wireless transmitters.
Handles high sound pressure levels with ease Extremely intelligible natural audio Inconspicuous, lightweight headset with capsule diameter of just 2.6 mm is ideal for applications requiring minimum visibility Ergonomic under-ear design flexible, lightweight contoured loop hooks behind the ear for an ultra-secure, comfortable fit with or without glasses Audio-Technica’s high-SPL BP892cH MicroSet offers the ultimate in low-profile, high-performance audio. Delivering clear and accurate sound in an inconspicuous package, the ultra-lightweight BP892 hooks securely behind either ear and can be worn for hours without fatigue.
The microphone features flat, extended frequency response and other outstanding performance specifications, resulting in extremely intelligible, natural audio for stage and television talent, lecturers and houses of worship. Protected by highly durable Parylene coating, the new headworn mic is built to stand up to the rigors of day-to-day use.
SPECIFICATIONS
ELEMENT Fixed-charge back plate, permanently polarized condenser POLAR PATTERN Omnidirectional FREQUENCY RESPONSE 20-20,000 Hz LOW FREQUENCY ROLL-OFF N/A OPEN CIRCUIT SENSITIVITY 49 dB (3.5 mV) re 1V at Pa IMPEDANCE 250 ohms MAXIMUM INPUT SOUND LEVEL 135 dB SPL, kHz at percent T.H.D. DYNAMIC RANGE (typical) 104 dB, kHz at Max SPL (wired only) SIGNAL-TO-NOISE RATIO 63 dB, kHz at Pa PHANTOM POWER REQUIREMENTS N/A SWITCH N/A CURRENT CONSUMPTION 0.1 mA typical at 5V (wireless only) VOLTAGE RANGE 2.5-11V WEIGHT (MICROPHONE) Microphone, boom & earpiece: 2.6 (0.09 oz) WEIGHT (POWER MODULE) N/A DIMENSIONS Microphone: 8.1 mm (0.32 inch) long, 2.6 mm (0.10 inch) diameter
Boom: 98.4 mm (3.87 inch) long, 1.07 mm (0.04 inch) diameter DIMENSIONS (POWER MODULE) N/A OUTPUT CONNECTOR (POWER MODULE) Threaded Hirose “cH style) 4 pin connector for Audio Technica Unipak transmitters CABLE 1.4 (55 inch) long (permanently attached to microphone), 1.6 mm (0.06 inch) diameter, 2-conductor shielded cable with threaded locking 4-pin connector ACCESSORIES FURNISHED N/A AUDIO-TECHNICA CASE STYLE M31
