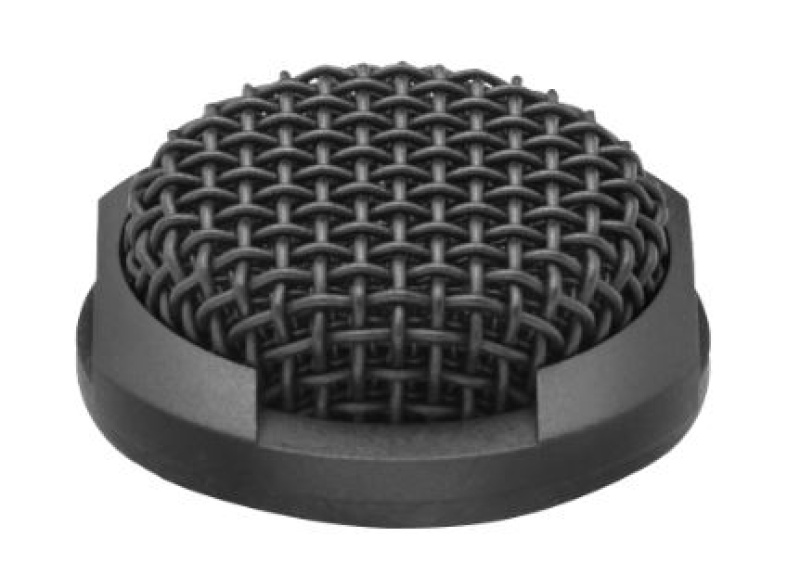

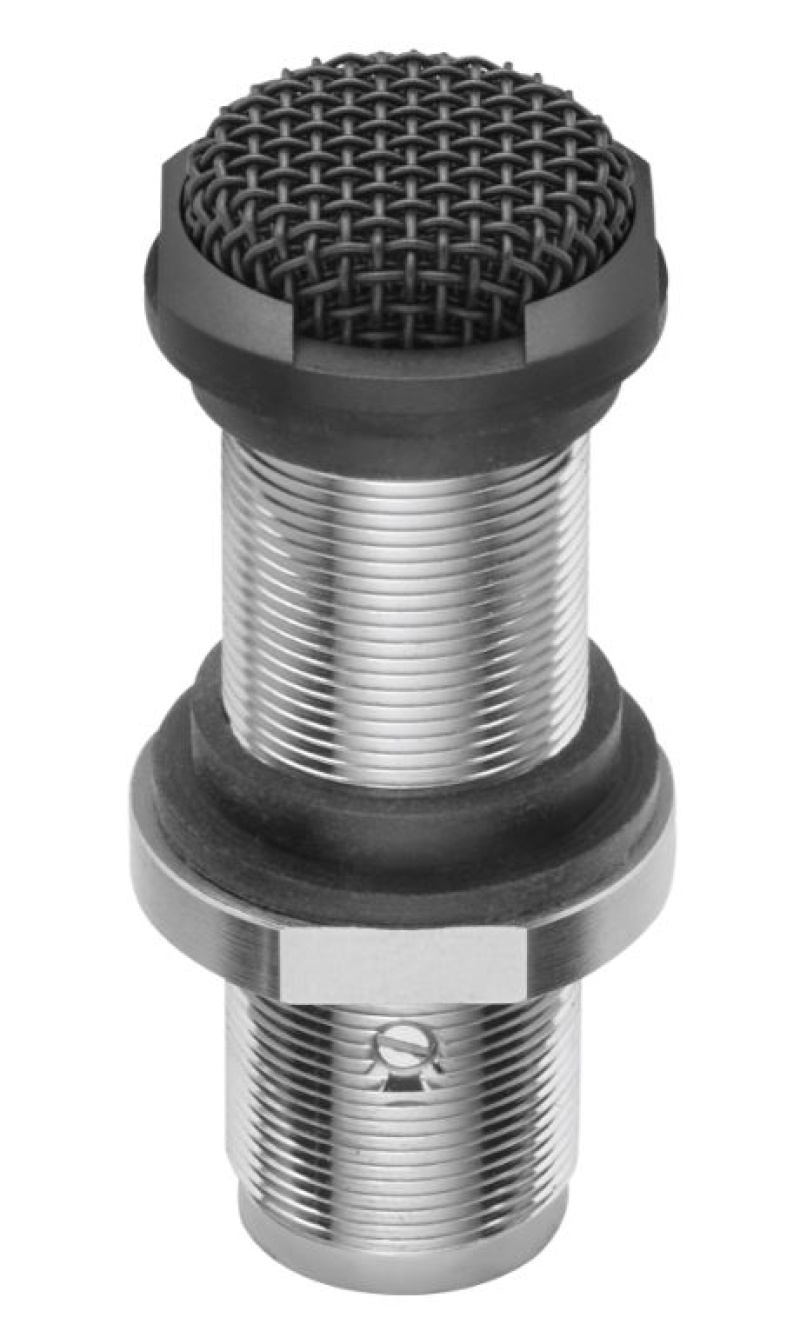

This low-profile phantom-powered omnidirectional condenser boundary microphone is designed for clear, highly intelligible sound reinforcement, professional recording and teleconferencing in table, ceiling, or panel-mount applications. Equipped with UniGuard® RFI-shielding innovations. The ES945 is available in black and white. RoHS compliant. Contractor-exclusive line.
Designed for surface-mount applications such as high-quality sound reinforcement, professional recording and teleconferencing Low-profile element provides uniform omnidirectional polar pattern with 360º acceptance angle Mounts unobtrusively in table-tops, ceilings and wall panels Self-contained power module with XLRM-type output connector Rugged all-metal case with a two-layer steel mesh grille Isolators provide mechanical dampening of mounting-surface vibration Requires 11V to 52V DC phantom power UniGuard® RFI-shielding technology offers outstanding rejection of radio frequency interference (RFI) Available in two colors: black (ES945) and white (ES945W) RoHS compliant—free from all substances specified in the EU directive on hazardous substances Specifications Microphones Element Fixed-charge back plate, permanently polarized condenser Polar Pattern Omnidirectional Frequency Response 40-18,000 Hz Open Circuit Sensitivity -42 dB (7.9 mV) re 1V at 1 Pa Maximum Input Sound Level 142 dB SPL, 1 kHz at 1% T.H.D. Dynamic Range 112 dB, 1 kHz at Max SPL Signal-to-Noise Ratio 64 dB, 1 kHz at 1 Pa Phantom Power Requirements 11-52V DC, 2 mA typical Weight 63 g (2.2 oz) Dimensions 69.0 mm (2.72″) long, 28.0 mm (1.10″) diameter Output Connector Integral 3-pin XLRM-type Accessories Included One pair isolators
