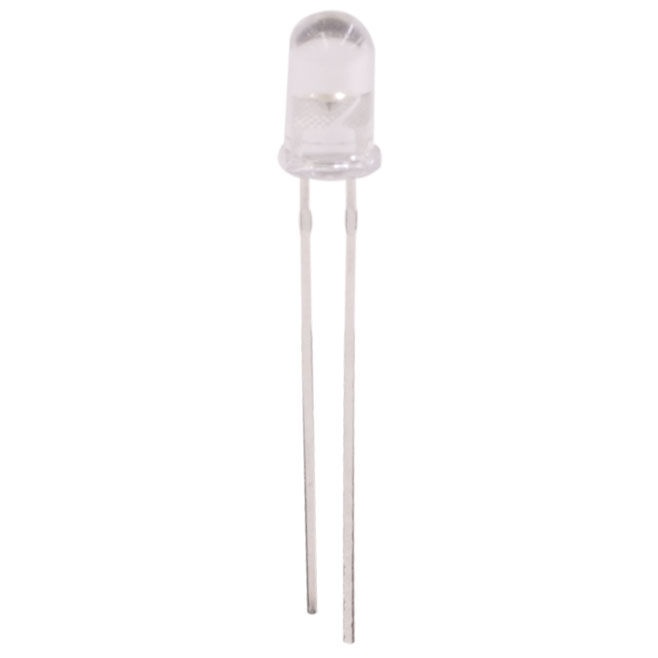

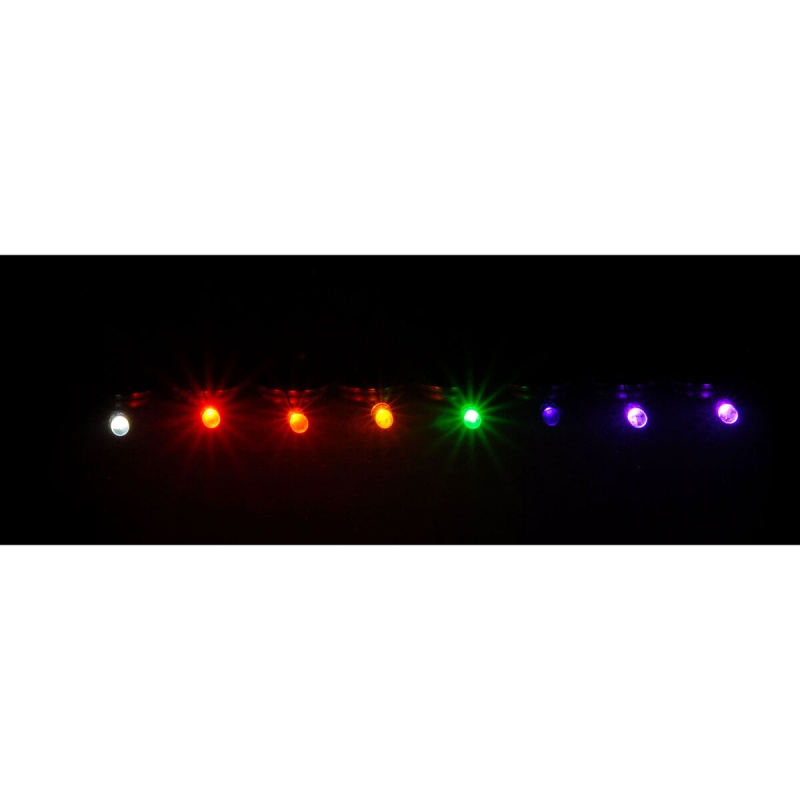

When only the best and the brightest LEDs will do for your project, select Super Ultra-Bright LEDs. On average, one of these LEDs is about twice as bright as its standard Ultra-Bright counterpart. Each Super Bright LED is designed with a clear, 5 mm diameter lens (T 1-3/4).
Description:
Source material: AlGalnP Emitting color: YELLOW Electrical/Optical Characteristics (TA= 25°C, IF= 20 mA):
Luminous intensity (Lv): 10000 mcd Forward voltage (VF): 2.2 VDC (typ), 2.5 V (max) Viewing angle (2?1/2): 8° Absolute Maximum Rating (TA= 25°C):
Peak forward current: 200 mA Average forward current (IF): 50 mA Reverse voltage (VR): 5.0 V Reverse current (IR, VR=5V): 10 µA Operating temperature: -40°C to +85°C Note: LEDs are static-sensitive devices. Observe static sensitivity handling precautions. When forming leads, the leads should be bent at a point at least 3 mm from the base. Avoid damage to LEDs by soldering for no longer than 3 seconds with 700° iron. Always use current limiting series resistors with LEDs. For help with designing your project and selecting correct resistors, use the by Rob Arnold.
