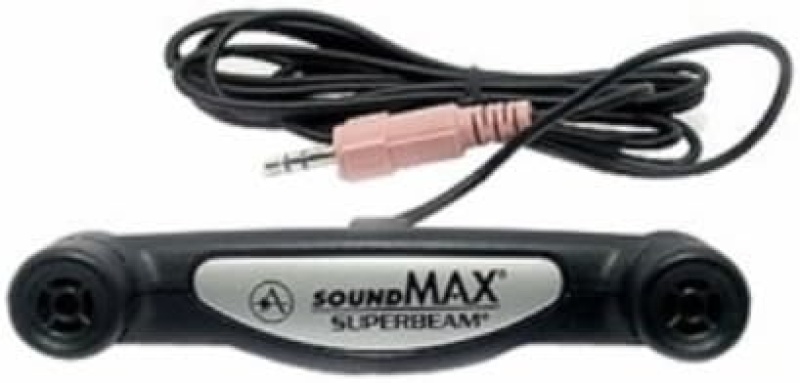

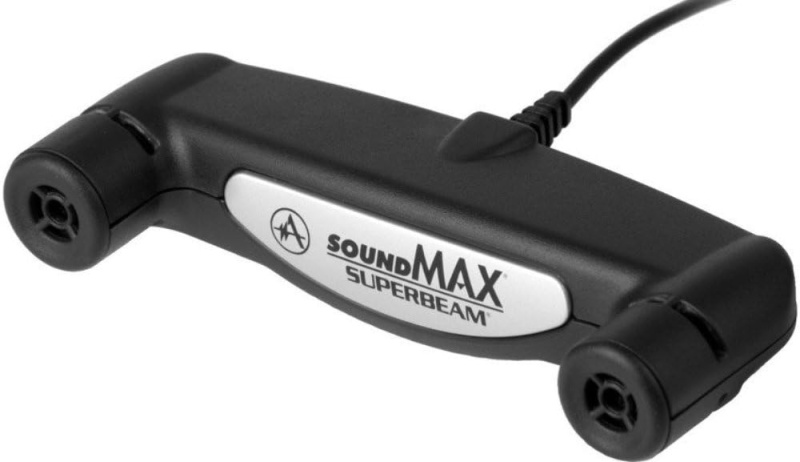

Superbeam SoundMAX Array Microphone
Andrea digital microphone products and technologies enable more accurate and reliable communication as well as high performance speech recognition in noisy office environments.
Product Features
Compatible with most stereo digital audio recorders (with plug in power mic inputs), and Andrea USB-SA audio adapter (will not work with mono microphone inputs) Sleek, stylish two-microphone design (4.3 inches length, 1.7 inches width, 0.9 inches deep). Unsurpassed in performance. Unprecedented price point. The Andrea Array is far-field, 2-microphone array with stereo output. Offers the highest quality and performance of low cost upgrade over single element microphone. Small size for unobtrusive mounting on monitor or laptop. Specifically designed for use with Andrea USB SA sound adapters Continuous Speech Recognition Command and Control Voice over IP Internet Telephony Andrea’s DSDA and PureAudio noise canceling algorithms allow for superior audio quality by cancelling out background noise resulting in increased intelligibility of communications. Compatible with Andreas Audio Commander audio interface software to optimize multimedia control applications. Performance
Acoustic Characteristic Microphone configuration: Two unidirectional microphones with individual channels to stereo outpu Recommended operating distance: 12 inches 48 inches (Varies with application Acoustic signal reduction at 1 KHz and 180 degrees: 10 dB Electrical Characteristics
Operating Mic bias Supply Voltage Range (with up to dB sensitivity variation): 2.5 to VD Supply series resistor: KOhms plus/minus 0.5 Operating Current (each channel): 0.6 m Output Impedance at KHz: less than 200 Ohm Max SPL Input at KHz: 115 dB (3 percent THD at 3.7V Max Output (THD less than percent at 1 KHz): 120 mV rm Sensitivity (Re: 1V at 0.1 Pa): -44 dB, plus/minus d Frequency Response: 50 Hz 8000 H Noise: 20 u Connector: Stereo TRS 3.5 mm plug, left mic power and left audio on tip, right mic power and right audio on ring. Sleeve common ground.
