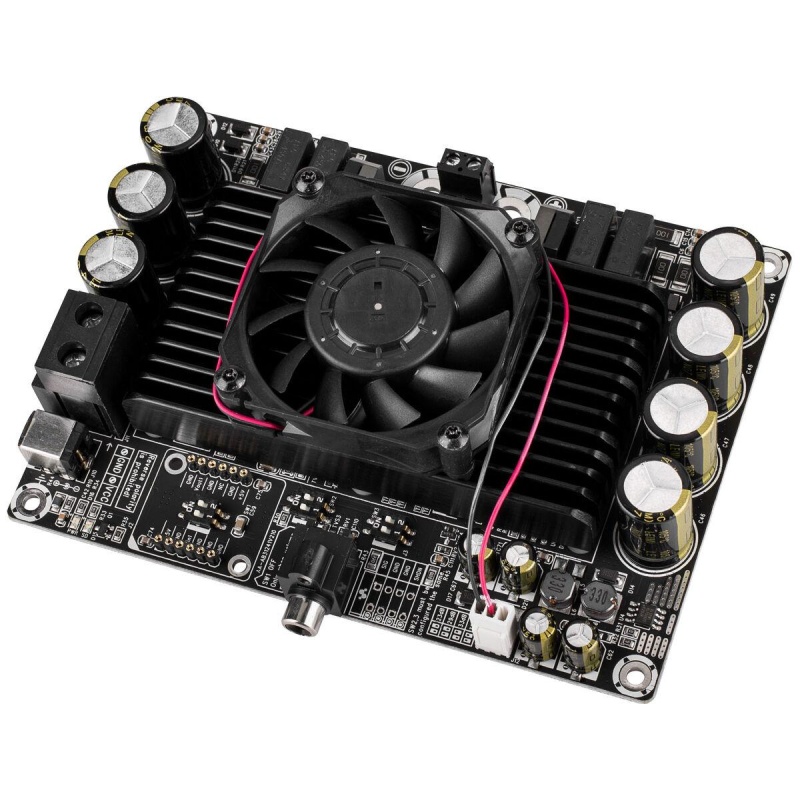

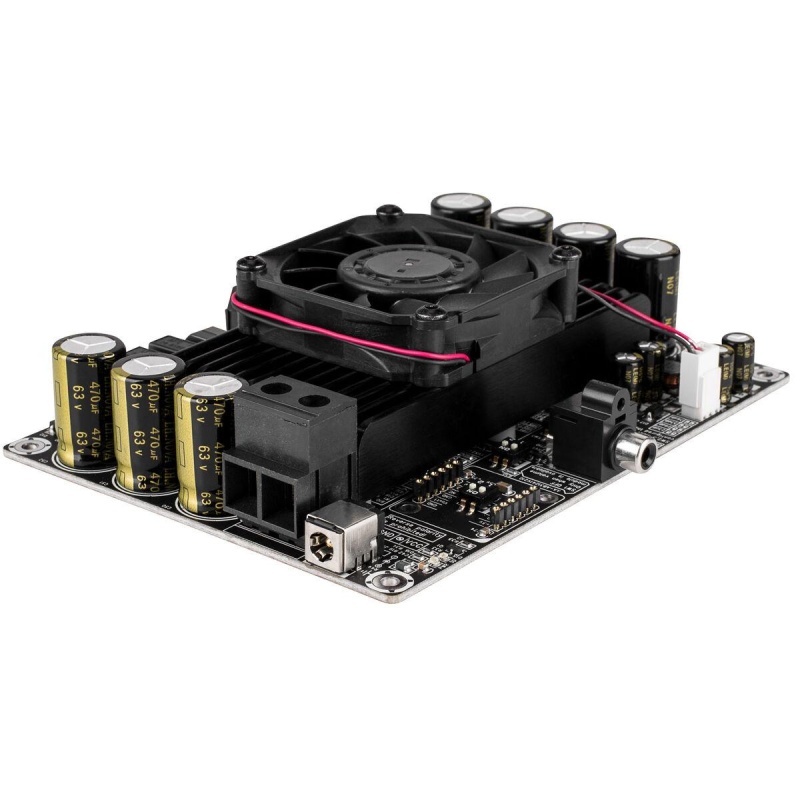

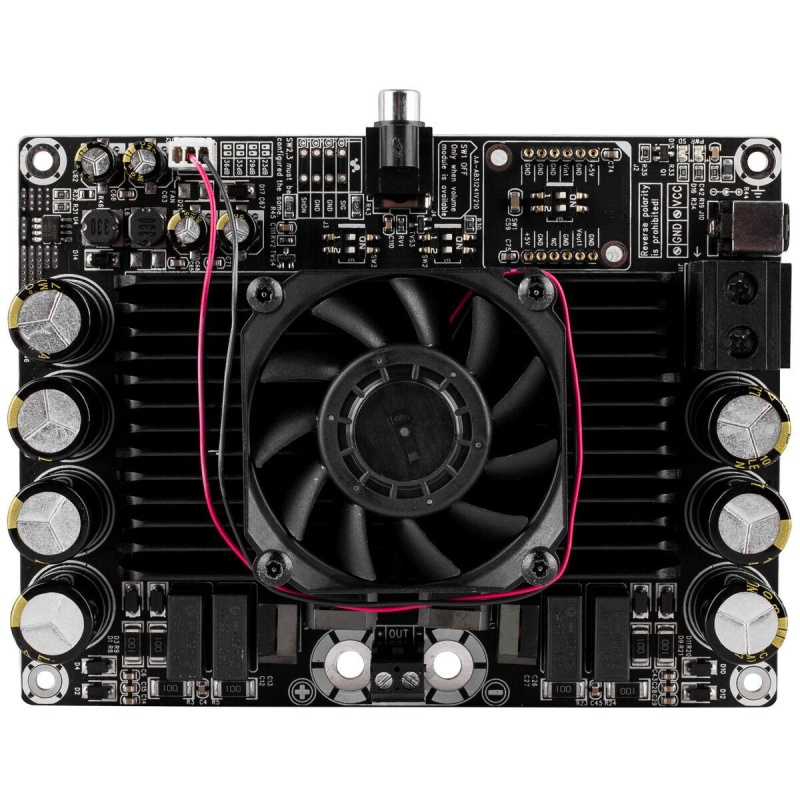

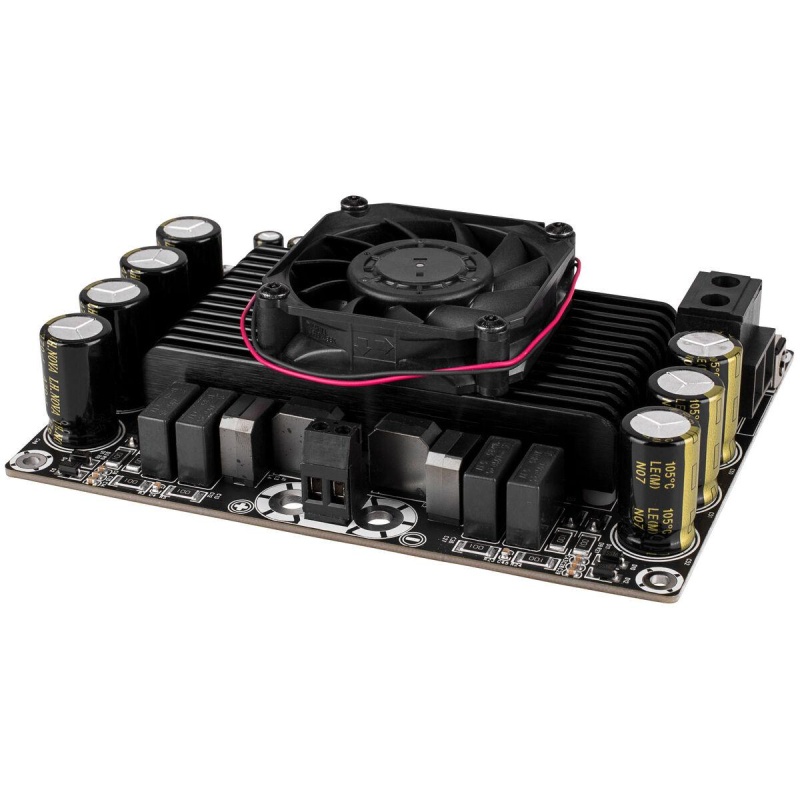

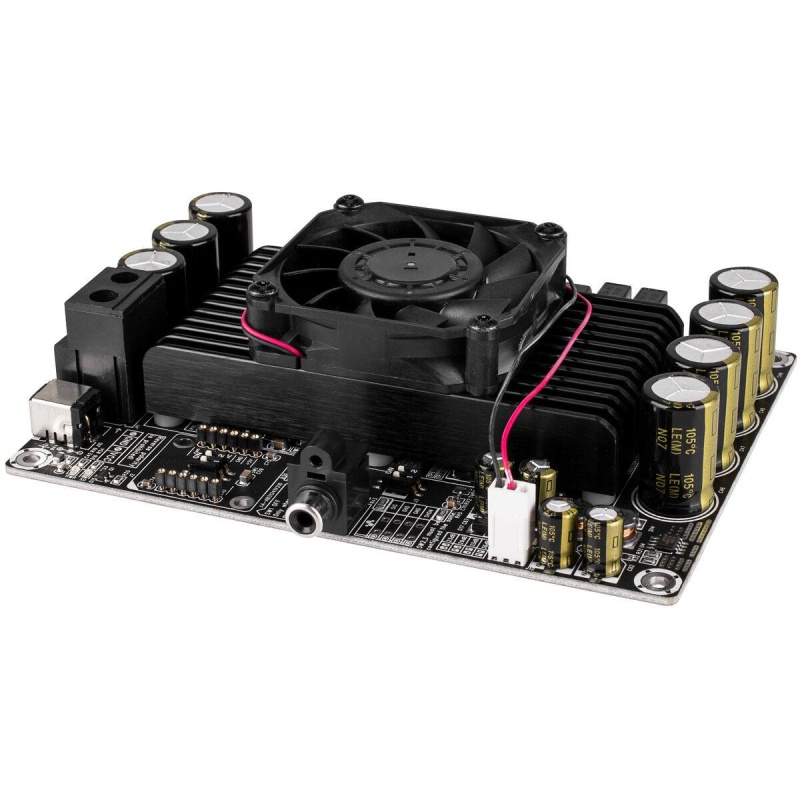

This mono-block amplifier board means serious business! A Class D TAS5630 with enabled integrated feedback develops up to 600W into a single channel with complete control and accuracy. For do-it-yourselfers looking for a subwoofer amplifier—look no further!
A robust heatsink, two-stage cooling fan, as well as protection circuits to protect against over/under voltage, over current, short circuit, and over temperature conditions are built-in for years of enjoyment. Four fixed gain settings allow you to match the amplifier to your source, and use your source as the volume control. A 25 to 52 VDC power supply is required.
Recommended power supply Note: The minimum recommended wire gauge to be used for power is 16 AWG.
Features: • Class D TAS5630 with enabled integrated feedback • Robust heatsink with two-stage cooling fan • Pre-drilled mounting holes • Over/under voltage, over current, short circuit, and over temperature protection circuits • Click and pop noise reduction • Phoenix-type speaker terminals • One line-level RCA inputs • Large screw-down power input terminals
Specifications: • Power output (w/ 48 VDC power supply): 600W x 1 (2 ohms, THD 10%), 350W x 1 (2 ohms, THD 1%) • Minimum impedance: 1.5 ohms • Frequency response: 20 to 20,000 Hz (±3 dB) • Recommended power supply: 25 to 52 VDC, 13.5A regulated • Fixed gain settings: 23 dB, 29 dB, 33 dB, 35 dB • Power input jack: 2.5 x 5.5 mm, center positive • Dimensions: 6" L x 4.5" W x 1.53" H
