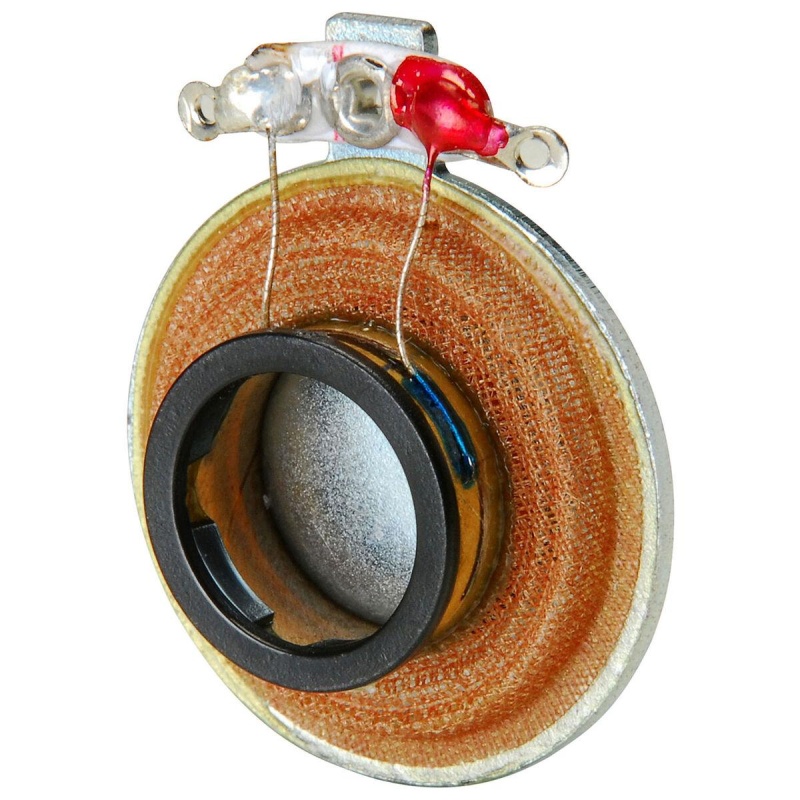

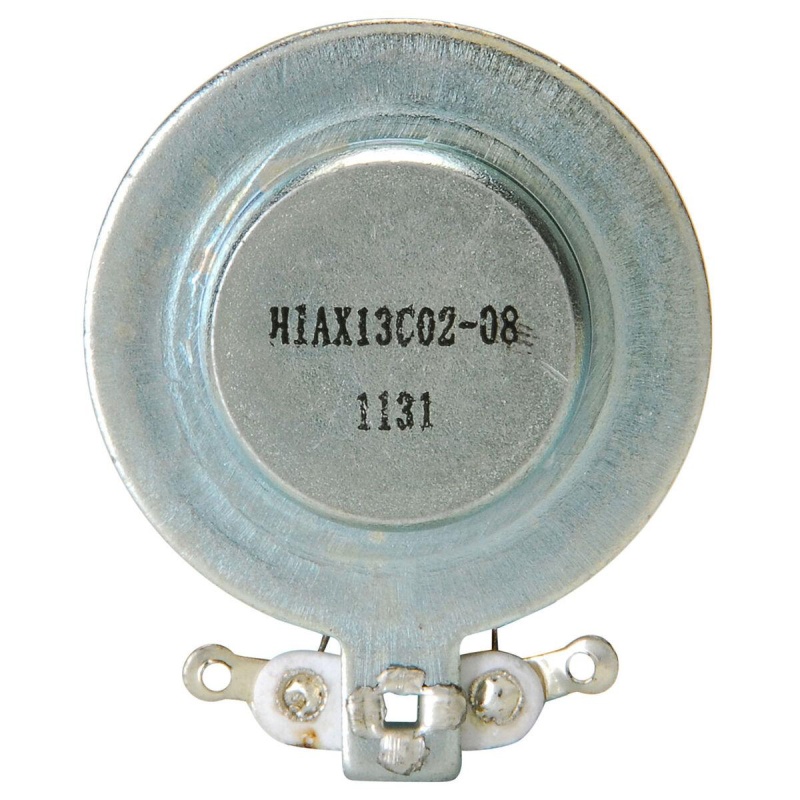

Tectonic 13 mm TEAX13C02-8/RH turns virtually any surface into a high fidelity loudspeaker. This exciter's extremely small size enables audio reproduction in places never imagined: toys, monitors, cabinet doors... even windows!
The TEAX13C02-8/RH exciter employs a neodymium magnet for maximum magnetic flux around the voice coil and increased sensitivity. In turn, this reduces power requirements and makes it possible to use very small audio amplifiers, without sacrificing total output.
To ensure maximum acoustic energy transfer between the transducer and the surface to which it is attached, two-part epoxy is recommended. Two terminals extend from the exciter for wire soldering purposes.
Note: An exciter's frequency response and sensitivity are completely dependent on the exciter's designated surface. Thinner, smaller materials will tend to be louder and create a mid/tweeter response. Thicker, larger materials (with multiple exciters) will be slightly quieter but result in a more full-range sound.
Specifications: • Power handling: 2 watts RMS • VCdia: 13 mm • Nominal impedance: 8 ohms • Dimensions: 1.25" (31.75 mm) dia. x 0.35" (9 mm) H • Weight: 10 grams.
