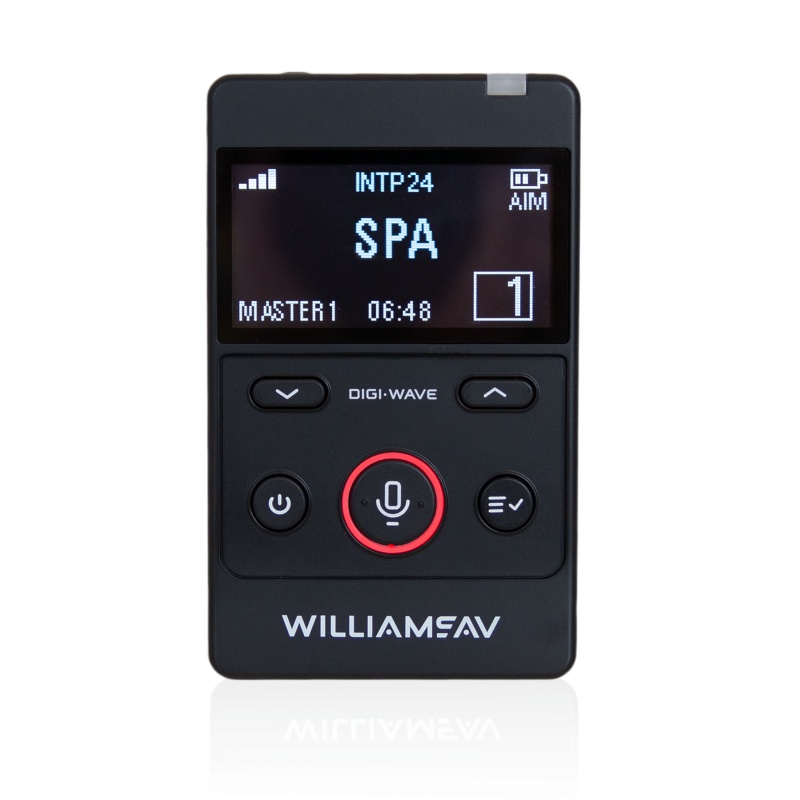

The Digi-Wave AIM Transceiver is designed to simplify simultaneous interpretation during trainings, presentations, meetings, and tours. It supports bilingual, two-way guided tours, language interpretation with Q&A, and bilingual meetings. With Digi-Wave Advanced Interpretation Mode, you can enjoy all the features of Digi-Wave 400 plus; effortless Q&A mode for switching languages during interpreted discussions, customized channel naming, a control mode for offline programming, subgroup division, and an industry-leading 24 available channels.
Q&A Mode – Industry unique feature enables easy Questions and Answers switching between two languages. With this device, every participant can listen and speak, enabling seamless discussions with two open microphones per language at a time. The industry-unique feature of two-way communication between the interpreter and the audience also allows audience members to ask questions back to the interpreter. Custom Channel Naming – Customize room names or choose from 100 ISO language codes 24 Channels – Industry-leading channel count with up to 24 channels available for interpretation Control Function – The control function allows administrators to program channel names and subgroups offline and update all devices in the system when convenient for the administrator. Subgroup Division– The subgroups function allows administrators to program custom channel names and subgroups offline, making it easy for guests to identify the language they are hearing or the subgroup they belong to. Great for divisible rooms or changing group needs. *To upgrade your current DLT 400 to include the Advanced Interpretation Features, please .
System Includes The DLT 400-AIM has an internal rechargeable battery and includes the charging pack DW ACC PAC4.
Features Q&A Mode – Industry unique feature enables easy Questions and Answers switching between two languages for simultaneous interpreting Custom Channel Naming – Customize room names or choose from 100 ISO language codes 24 Channels – Industry-leading channel count with up to 24 channels available for interpretation Control Function – Program channel naming and subgroups offline Subgroup Division– Divide interpretation groups into subsets of channels. Great for divisible rooms or changing group needs. How It Works
Dimensions 2.60”W x 4.22”H x 0.50”D (66 mm x 107.3 mm x 12.6 mm)
Weight 3.3 oz (94 g) including battery Color Black/Silver (Front/Back) Case Material Black ABS plastic Battery type Lithium Polymer with smart charge built into transceiver; 1800 mAH Battery life Up to 16 hrs talk time per charge@ 1ch Tx and 1ch Rx Power Save Auto Sleep Mode after 5 minutes of no RF signal from compatible devices Charge time 5 hrs. approx. System Voltages OLED 14VDC; RF 5VDC; Logic 3.3 VDC Operating frequencies 2.4 GHz (ISM band); 2402 – 2476 MHz FHSS Audio Frequency response
This product is sold brand new. A manufacturer warranty applies only when the manufacturer provides one for this item.
Return requests must be submitted within 14 days of delivery and approved by our RMA department before the item is shipped back. Non-defective returns may be subject to a minimum 25% restocking fee and return shipping charges. Unauthorized returns are not eligible for credit or refund. Read the full return policy.
(-3dB Level) Intercom Mode, Court Mode, INTP24 Mode, Q&A INTP: 100 – 7,200 Hz Other Modes: 100 – 11,500 Hz
SNR 73 dB (A-weighted, default Rx volume with mic input ) THD 0.1 % (Default Volume, 1kHz) Microphone input Internal microphone (disabled when MIC jack engaged) and 3.5 mm phone jack (sleeve) with electret microphone bias, adjustable gain with 63dB range. Line Input USB-C, Adjustable level Headphone Output 3.5 mm TRRS headphone jack; 25 mW, R 32 ohms Audio Output Headphone: Max SSPL 90 111.8dB (EAR 013), 116.8dB (EAR 041)
Line: USB-C, Adjustable level Range Up to 900 ft (274 m) (depending upon environmental conditions) Modulation FSK RF Output 19 dBm Typical Security 87-bit encryption (300 Series Compatible), 87+128 bit Encryption, Encryption PIN, Lock for settings Side tone -6 dB below volume, tone variation (Off, Low and High settings available) Indicators OLED LEDs Red LED around Talk button when enabled; Bi-color, changing green and red LED at top Charging Connectors USB-C; Two contacts for use with CHG 412 Compatible Receiver DLR 400 RCH (with firmware 1.3.0 or greater) Operating Temperature Range 14º to 113ºF (-10º to 45ºC) Approvals FCC, Industry Canada, CE, RoHS 3, WEEE, RCM, ANATEL, KC, Giteki Warranty 2-years warranty against component failure and manufacturing defects. 1 year on the internal battery. See Full Warranty on the website for details. Warranty
2 Years
Understanding Interpretation Tech Tutorial | Digi-Wave™ Connect (DWD 401) Tech Tutorial | Digi Wave AIM 24 Channel Interpretation Mode Digi-Wave 400 – Fundamentals & Advanced Settings
