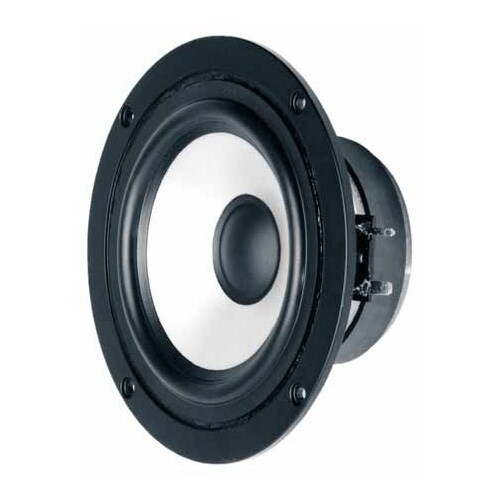

The AL 130 M's design includes a shorter voice coil compared to the standard AL 130, enhancing efficiency by 2-3 dB above 500 Hz, making it particularly suitable for midrange applications. Its compact dimensions, with a cutout diameter of 115 mm, facilitate easy integration into various speaker systems. This versatility makes the AL 130 M an excellent choice for audiophiles and speaker builders aiming for superior midrange performance in their custom speaker designs.
Technical Data
Rated power: 60 WMaximum power: 90 WNominal impedance Z: 8 OhmFrequency response: fu–8000 Hz (fu: Lower cut-off frequency depending on cabinet)Mean sound pressure level: 90 dB (1 W/1 m)Opening angle (-6 dB): 94°/4000 HzExcursion limit: ±5.5 mmResonance frequency fs: 57 HzMagnetic induction: 0.95 TMagnetic flux: 450 µWbHeight of front pole-plate: 6 mmVoice coil diameter: 25 mmHeight of winding: 12 mmCutout diameter: 115 mmNet weight: 1 kgD.C. resistance Rdc: 5.4 OhmMechanical Q factor Qms: 4.39Electrical Q factor Qes 0.52Total Q factor Qts: 0.46Equivalent volume Vas: 9.1 lEffective piston area Sd: 79 cm²Dynamically moved mass Mms: 7.4 gForce factor Bxl: 5.3 T mInductance of the voice coil L: 0.8 mHConnections: 4.8 x 0.8 mm (+)/2.8 x 0.8 mm (-)
