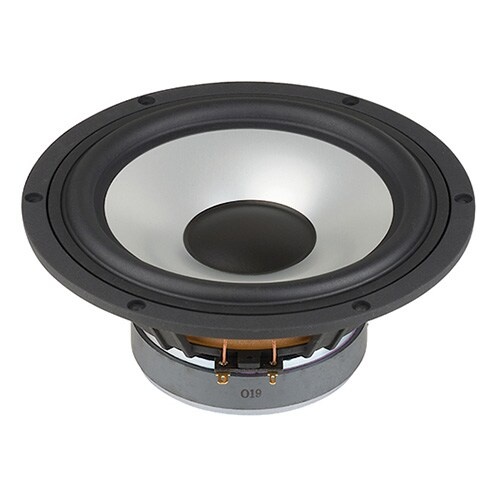

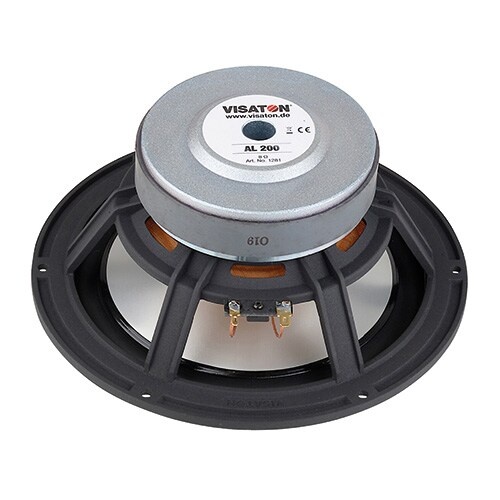

The AL 200's lightweight aluminum cone ensures a fast pulse response, making it suitable for high-fidelity audio applications. Its design allows for integration into various cabinet sizes, with recommended volumes ranging from 30 liters to 70 liters in bass reflex configurations, achieving tuning frequencies between 27 Hz and 40 Hz. This versatility makes the AL 200 an excellent choice for audiophiles and speaker builders aiming for superior low-frequency performance in their custom speaker designs.
Technical Data
Rated Power: 120WMaximum Power: 180WNominal impedance: 8 Ohm Frequency response: fu-30000 Hz (fu: Lower cut-off frequency depending on cabinet)Mean sound pressure level: 88 dB (1 W/1 m) Opening angle: (-6 dB) 122°/4000 Hz Excursion Limit: +/−10 mmResonance frequency fs: 32 Hz Magnetic induction: 1.3 TMagnetic flux: 930 µWb Height of front pole-plate: 6 mm Voice coil diameter: 38 mm Height of winding: 20 mm Cutout diameter: 190 mm Net weight: 2.5 kg D.C. resistance Rdc: 6.6 Ohm Mechanical Q factor Qms: 3.73Electrical Q factor Qes: 0.39Total Q factor Qts: 0.35Effective volume Vas: 77 lEffective piston area Sd: 216 cm² Dynamically moved mass Mms: 21 g Inductance of the voice coil L: 1.2 mH Connections: 4.8 x 0.8 mm (+)/2.8 x 0.8 mm (-)
