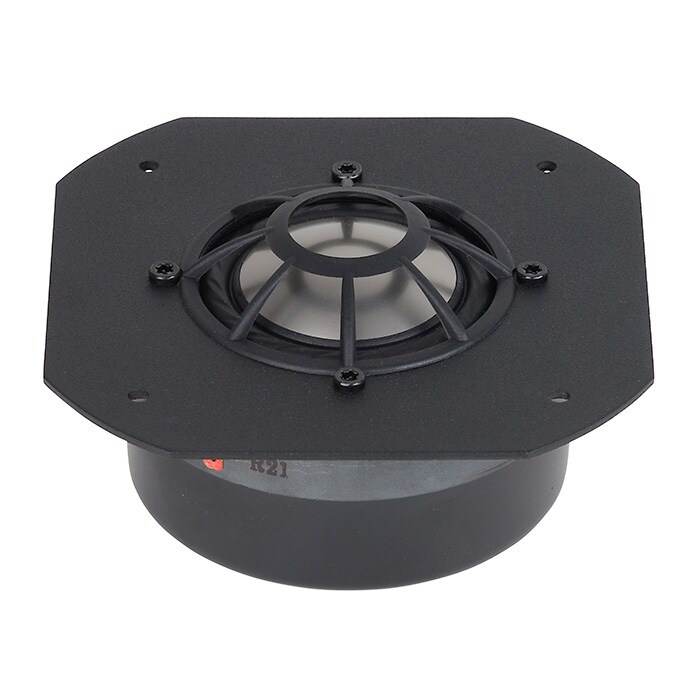

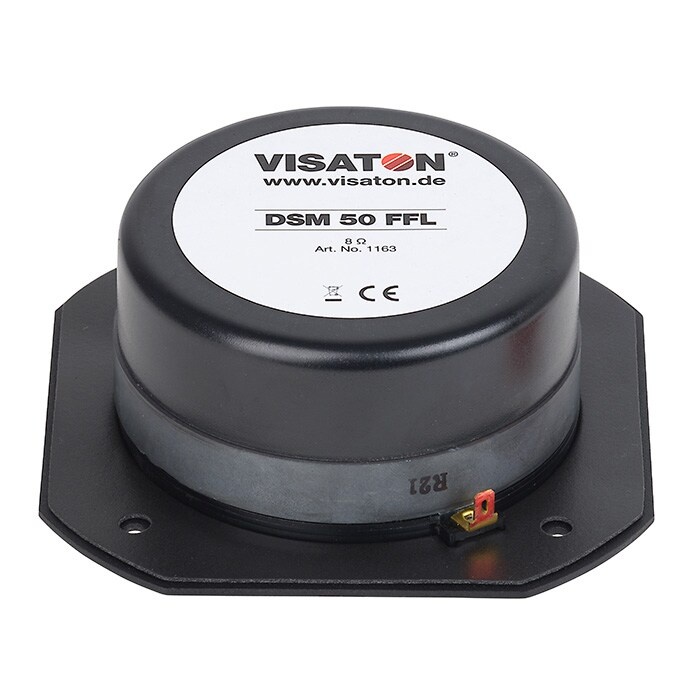

The DSM 50 FFL is designed to deliver precise and balanced midrange sound, featuring a titanium dome that minimizes distortion and ensures high-frequency accuracy. Its robust build quality and carefully engineered components make it a dependable choice for high-end audio systems, providing clarity and detail that audio enthusiasts demand.
Technical Data
Nominal impedance: 8 Ohm Frequency response: 400-15000 Hz Mean sound pressure level: 90 dB (1 W/1 m) Opening angle: (-6 dB) 180°/4000 Hz Resonance frequency fs: 430 Hz Magnetic induction: 1.4 T Magnetic flux: 880 µWb Height of front pole-plate: 3.5 mm Voice coil diameter: 50 mm Height of winding: 3 mm Cutout diameter: 106 mm Net weight: 1.26 kg D.C. resistance Rdc: 6.7 Ohm Mechanical Q factor Qms: 1.19 Electrical Q factor Qes: 0.7 Total Q factor Qts: 0.44 Equivalent volume Vas: 0.05 Effective piston area Sd: 20 cm² Dynamically moved mass Mms: 1.2 g Inductance of the voice coil L: 0.16 mH Connections: 4.8 x 0.8 mm (+)/2.8 x 0.8 mm (-) Peak power handling with high pass: 180 W (12 dB/Okt.; 800 Hz) Nominal power handling with high pass: 120 W (12 dB/Okt.; 800 Hz)
