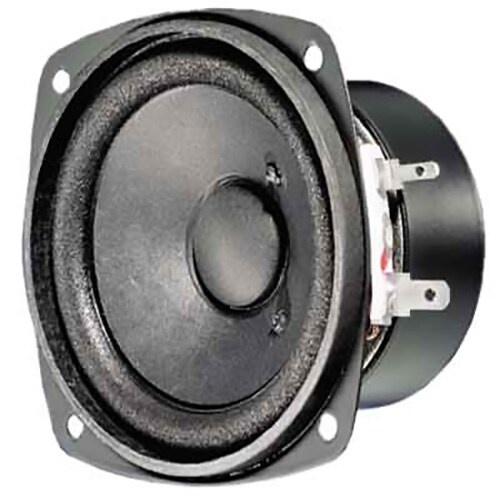

The Visaton 3.3-inch magnetically shielded full-range driver is designed for compact audio applications including multimedia systems, video monitoring screens, TVs, and computer terminals. Its stated strengths include balanced sound reproduction, high efficiency, and compact size.
It has a rated power of 20 W, maximum power of 30 W, and nominal impedance Z of 8 Ohm. Frequency response is 80–15000 Hz, mean sound pressure level is 82 dB (1 W/1 m), opening angle (-6 dB) is 180°/4000 Hz, excursion limit is ±2.5 mm, and resonance frequency fs is 125 Hz.
Magnetic induction is 0.8 T and magnetic flux is 150 µWb. Height of front pole-plate: 3 mm; voice coil diameter: 20 mm; height of winding: 4.5 mm; cutout diameter: 76 mm; net weight: 0.25 kg. D.C. resistance Rdc: 7.9 Ohm; mechanical Q factor Qms: 2.94; electrical Q factor Qes: 1.29; total Q factor Qts: 0.9.
Equivalent volume Vas is 1.0 l, effective piston area Sd is 30 cm², dynamically moved mass Mms is 2 g, force factor Bxl is 2.2 Tm, and voice coil inductance L is 0.3 mH. Connections: 4.8 x 0.8 mm (+)/2.8 x 0.8 mm (-). Temperature range: –25 - 70 °C.
