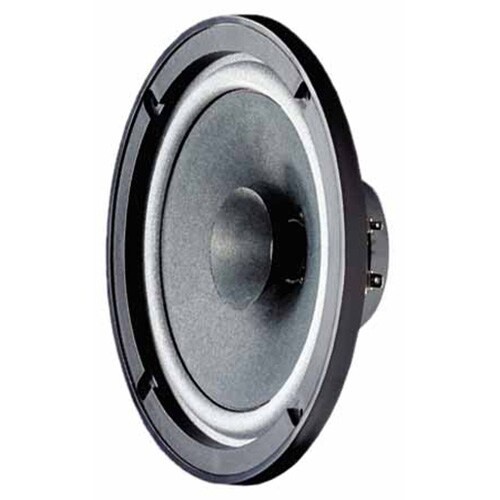

The FR6.5-8's combination of wide frequency response, high efficiency, and water-resistant construction makes it an excellent choice for ceiling-mounted speakers, public address applications, and electronic musical instruments.
Technical Data
Rated power: 40 W Maximum power: 60 W Nominal impedance Z: 8 Ohm Frequency response: 70–20000 Hz Mean sound pressure level: 87 dB (1 W/1 m) Opening angle (-6 dB): 41°/4000 Hz Excursion limit: ±3 mm Resonance frequency fs: 75 Hz Magnetic induction: 0.75 T Magnetic flux: 190 µWb Height of front pole-plate: 4 mm Voice coil diameter: 20 mm Height of winding: 4 mm Cutout diameter: 143 mm Net weight: 0.47 kg D.C. resistance Rdc: 6.8 Ohm Mechanical Q factor Qms: 4.94 Electrical Q factor Qes: 3.26Total Q factor Qts: 1.96 Equivalent volume Vas: 16 l Effective piston area Sd: 129 cm² Dynamically moved mass Mms: 5.9 g Force factor Bxl: 2.5 T m Inductance of the voice coil L: 0.8 mH Connections: 4.8 x 0.8 mm (+)/2.8 x 0.8 mm (-) Temperature range: –25 - 70 °C
