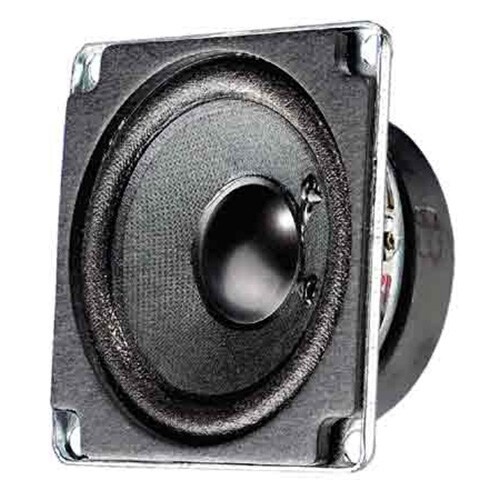

The FRWS5-8's compact dimensions and balanced frequency response make it an excellent choice for applications where space is limited but high-quality sound is essential. Its moisture-resistant membrane and metal design ensure durability, making it suitable for both indoor and outdoor use. Whether integrated into very narrow network column speakers, used as a monitoring speaker for electronic devices, or employed in model construction, this speaker delivers reliable and efficient audio performance.
Technical Data
Rated power: 2 W Maximum power: 10 W Nominal impedance Z: 8 Ohm Frequency response: 150–20000 Hz Mean sound pressure level: 84 dB (1 W/1 m) Opening angle (-6 dB): 180°/4000 Hz Excursion limit: ±2 mm Resonance frequency fs: 250 Hz Magnetic induction: 0.75 T Magnetic flux: 65 µWb Height of front pole-plate: 2 mm Voice coil diameter: 14 mm Height of winding: 2.7 mm Cutout diameter: 45 mm Net weight: 0.1 kg D.C. resistance Rdc: 6.8 Ohm Mechanical Q factor Qms: 3.31 Electrical Q factor Qes: 3.22 Total Q factor Qts: 1.63 Equivalent volume Vas: 0.1 l Effective piston area Sd: 12 cm² Dynamically moved mass Mms: 0.5 g Force factor Bxl: 1.4 Tm Inductance of the voice coil L: 0.1 mH Connections: Solder lugs Temperature range: –25 - 70 °C
