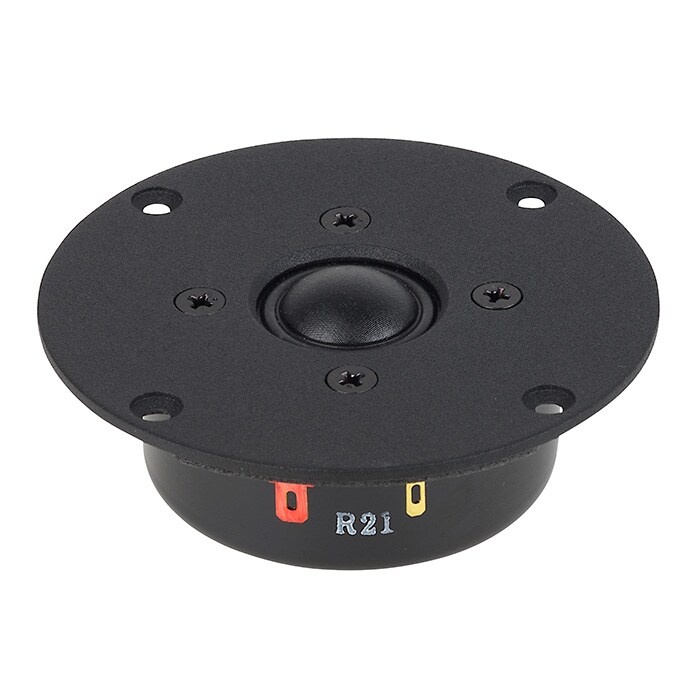

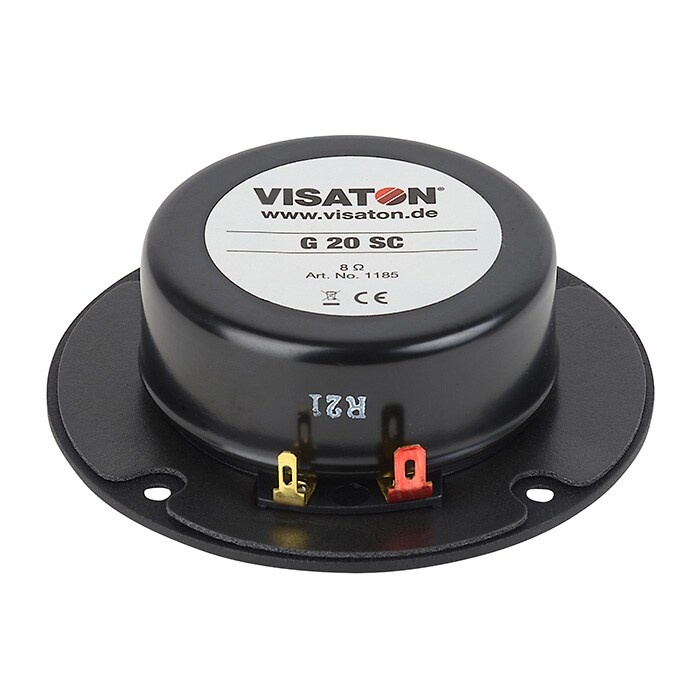

The G 20 SC's design includes a 20 mm voice coil diameter and an effective piston area of 4 cm², contributing to its precise high-frequency reproduction. Its compact dimensions, with a cutout diameter of 66 mm, facilitate easy integration into various speaker systems. The tweeter's construction ensures durability and consistent performance, making it a reliable choice for both new builds and replacement applications in high-fidelity audio systems.
Technical Data
Nominal impedance: 8 Ohm Frequency response: 1200-30000 Hz Mean sound pressure level: 88 dB (1 W/1 m) Opening angle: (-6 dB) 180°/8000 Hz Resonance frequency fs: 1890 Hz Magnetic induction: 1.3 T Magnetic flux: 200 µWb Height of front pole-plate: 2.5 mm Voice coil diameter: 20 mm Height of winding: 2 mm Cutout diameter: 66 mm Net weight: 0.39 kg D.C. resistance Rdc: 4.8 Ohm Mechanical Q factor Qms: 0.36 Electrical Q factor Qes: 1.34 Total Q factor Qts: 0.28 Effective piston area Sd: 4 cm² Dynamically moved mass Mms: 0.15 g Inductance of the voice coil L: 0.02 mH Connections: 4.8 x 0.8 mm (+)/2.8 x 0.8 mm (-) Peak power handling with high pass: 140 W (12 dB/Okt.; 2000 Hz)180 W (12 dB/Okt.; 4000 Hz) Nominal power handling with high pass: 80 W (12 dB/Okt.; 2000 Hz)120 W (12 dB/Okt.; 4000 Hz)
