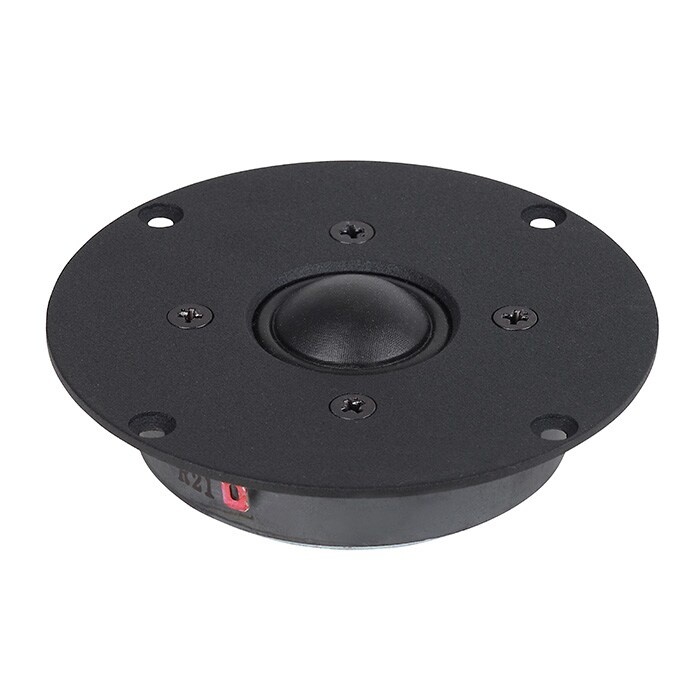

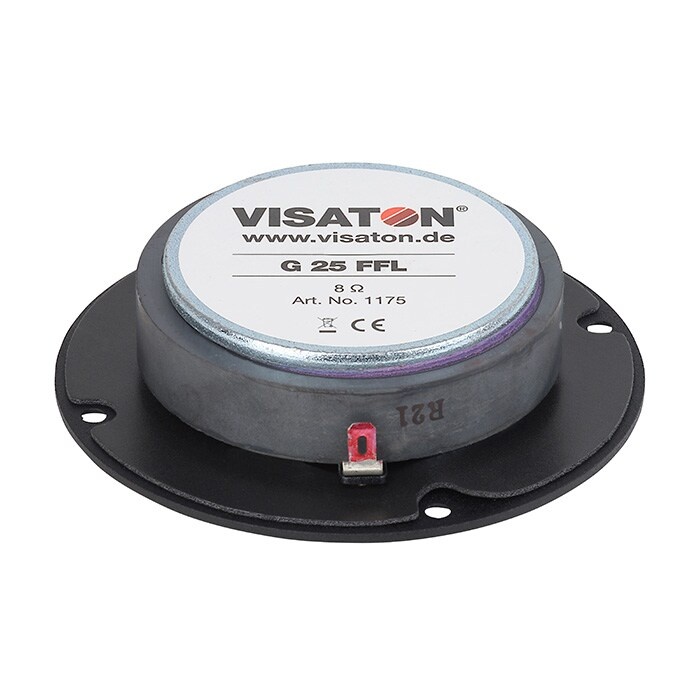

The Visaton G25ffl8 is a 1" fabric dome tweeter with 8 Ohm nominal impedance, designed for high-frequency reproduction in high-fidelity speaker builds and replacement applications. Its voice coil diameter is 25 mm, effective piston area is 4.9 cm², and cutout diameter is 80 mm.
Technical data: Frequency response: 1000–30000 Hz; mean sound pressure level: 90 dB (1 W/1 m); opening angle: (-6 dB) 167°/8000 Hz; resonance frequency fs: 1600 Hz; magnetic induction: 1.7 T; magnetic flux: 425 µWb; height of front pole-plate: 2.5 mm; height of winding: 2 mm; net weight: 0.56 kg.
Electrical and mechanical data: D.C. resistance Rdc: 5.6 Ohm; mechanical Q factor Qms: 0.66; electrical Q factor Qes: 1.11; total Q factor Qts: 0.41; dynamically moved mass Mms: 0.3 g; voice coil inductance L: 0.05 mH; connections: 4.8 x 0.8 mm (+)/2.8 x 0.8 mm (-).
Power handling with high pass: Peak: 140 W (12 dB/Okt.; 2000 Hz) and 180 W (12 dB/Okt.; 4000 Hz). Nominal: 80 W (12 dB/Okt.; 2000 Hz) and 120 W (12 dB/Okt.; 4000 Hz).
