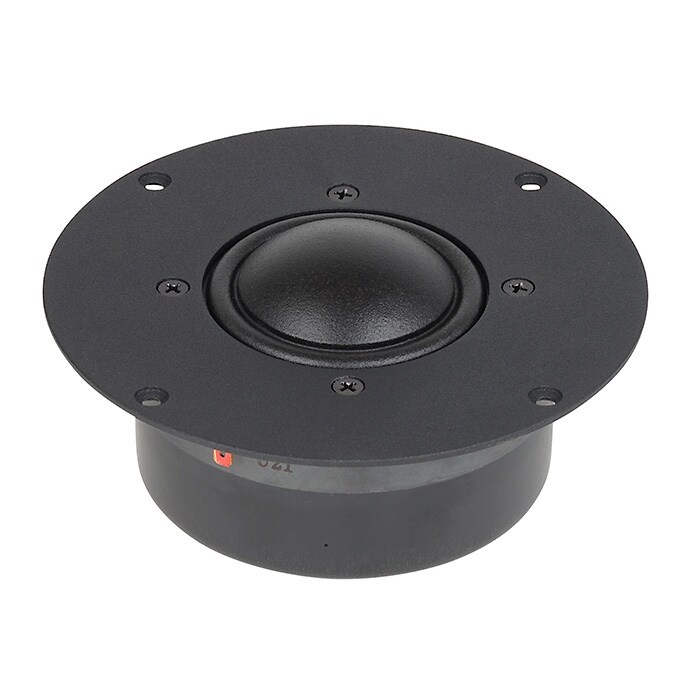

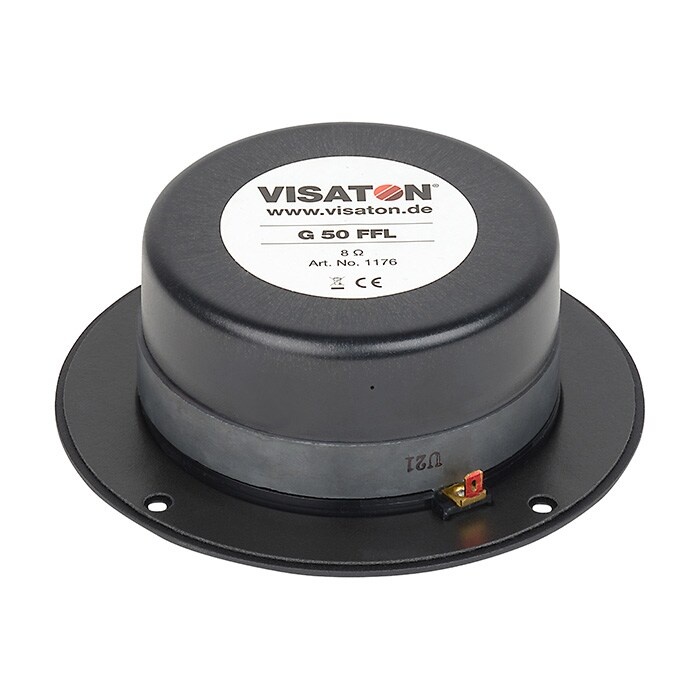

The G 50 FFL's design includes a 50 mm voice coil diameter and an effective piston area of 20 cm², contributing to its precise midrange reproduction. Its compact dimensions, with a cutout diameter of 106 mm, facilitate easy integration into various speaker systems. The tweeter's construction ensures durability and consistent performance, making it a reliable choice for both new builds and replacement applications in high-fidelity audio systems.
Technical Data
Nominal impedance: 8 Ohm Frequency response: 300-12000 Hz Mean sound pressure level: 90 dB (1 W/1 m) Opening angle: (-6 dB) 180°/4000 Hz Resonance frequency fs: 455 Hz Magnetic induction: 1.4 T Magnetic flux: 880 µWb Height of front pole-plate: 3.5 mm Voice coil diameter: 50 mm Height of winding: 3 mm Cutout diameter: 106 mm Net weight: 1.0 kg D.C. resistance Rdc: 6.4 Ohm Mechanical Q factor Qms: 0.48 Electrical Q factor Qes: 0.37 Total Q factor Qts: 0.28 Equivalent volume Vas: 0.037 l Effective piston area Sd: 20 cm² Dynamically moved mass Mms: 1.2 g Inductance of the voice coil L: 0.16 mH Connections: 4.8 x 0.8 mm (+)/2.8 x 0.8 mm (-) Peak power handling with high pass: 180 W(12 dB/Okt.; 800 Hz) Nominal power handling with high pass: 120 W(12 dB/Okt.; 800 Hz)
