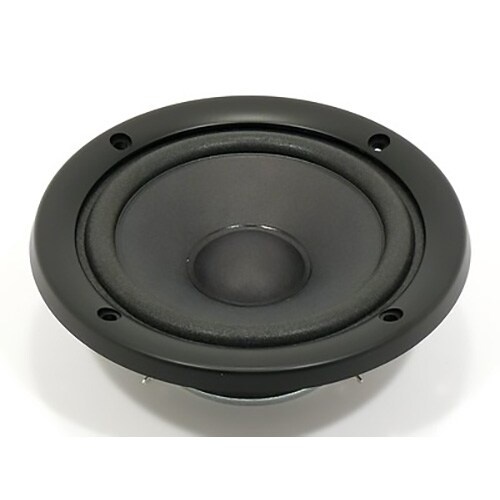

The Visaton MR130-8 is a 5" midrange driver with an enclosed rear design, balanced frequency response and efficient performance for audio systems requiring midrange sound reproduction. Its nominal impedance is 8 Ohm, frequency response is 400–13000 Hz, and mean sound pressure level is 89 dB (1 W/1 m). The opening angle is 79°/4000 Hz at -6 dB.
Key performance specifications: excursion limit ±2 mm; resonance frequency fs 500 Hz; peak power handling with high pass 100 W (12 dB/octave; 800 Hz); nominal power handling with high pass 80 W (12 dB/octave; 800 Hz). Magnetic induction is 0.9 T and magnetic flux is 260 µWb.
Dimensions and construction data: height of front pole-plate 4 mm; voice coil diameter 25 mm; height of winding 8 mm; cutout diameter 110 mm; net weight 0.55 kg. Effective piston area Sd is 70 cm², dynamically moved mass Mms is 5 g, and force factor Bxl is 4.3 Tm.
Electrical specifications: D.C. resistance Rdc 6.8 Ohm; mechanical Q factor Qms 8.67; electrical Q factor Qes 5.85; total Q factor Qts 3.49; voice coil inductance L 0.4 mH. Connections: 4.8 x 0.8 mm (+)/2.8 x 0.8 mm (-).
