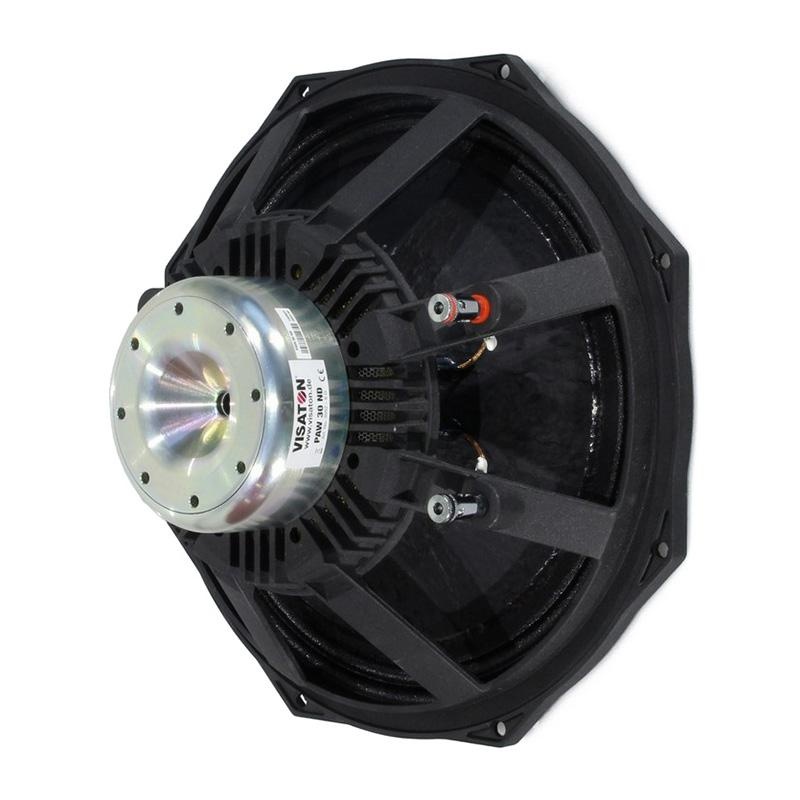

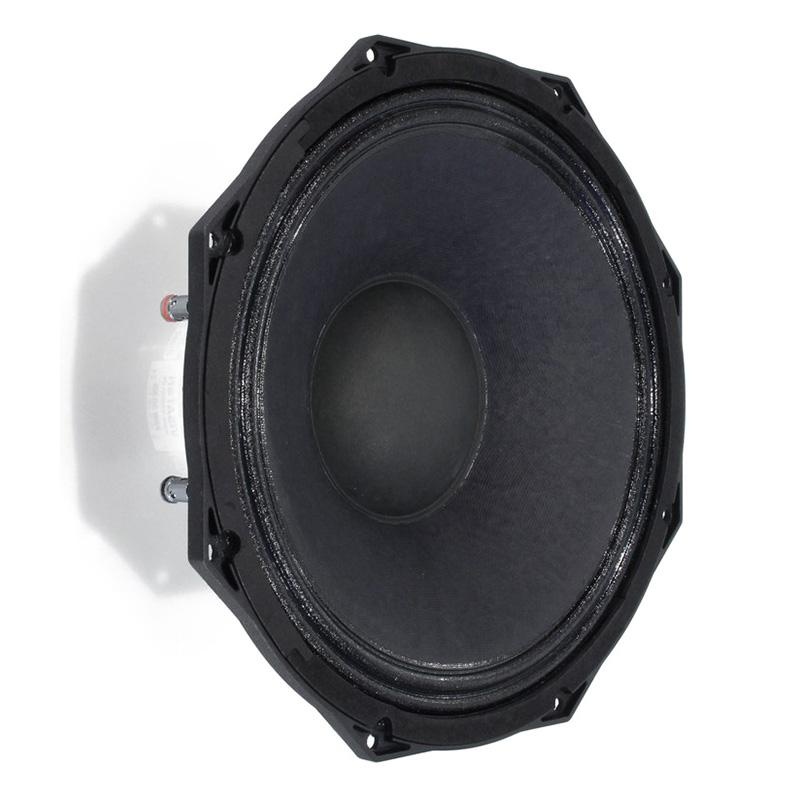

The PAW30ND8 combines high power handling, advanced cooling mechanisms, and robust construction to meet the rigorous demands of professional PA systems. Its wide frequency response and durable materials ensure reliable and high-quality bass-midrange reproduction, making it an excellent choice for large-scale audio installations.
Technical Data
Cm: 0.19 mm/N Rated power: 400 W Maximum power: 600 W Nominal impedance Z: 8 Ohm Frequency response: fu–5500 Hz (fu: Lower cut-off frequency depending on cabinet)Mean sound pressure level: 99 dB (2.83 V/1 m) Maximum linear displacement: ±4 mm Excursion limit: ±8 mm Resonance frequency fs: 45 Hz Height of front pole-plate: 8 mmVoice coil diameter: 75 mm Height of winding: 16 mm Cutout diameter: 286 mm Net weight: 3.05 kg D.C. resistance Rdc: 6.1 Ohm Mechanical Q factor Qms: 7.63 Electrical Q factor Qes: 0.37 Total Q factor Qts: 0.36Equivalent volume Vas: 78 l Effective piston area Sd: 539 cm²Dynamically moved mass Mms: 69 g Force factor Bxl: 17.6 Tm Inductance of the voice coil L: 0.55 mH Connections: Spring terminals
