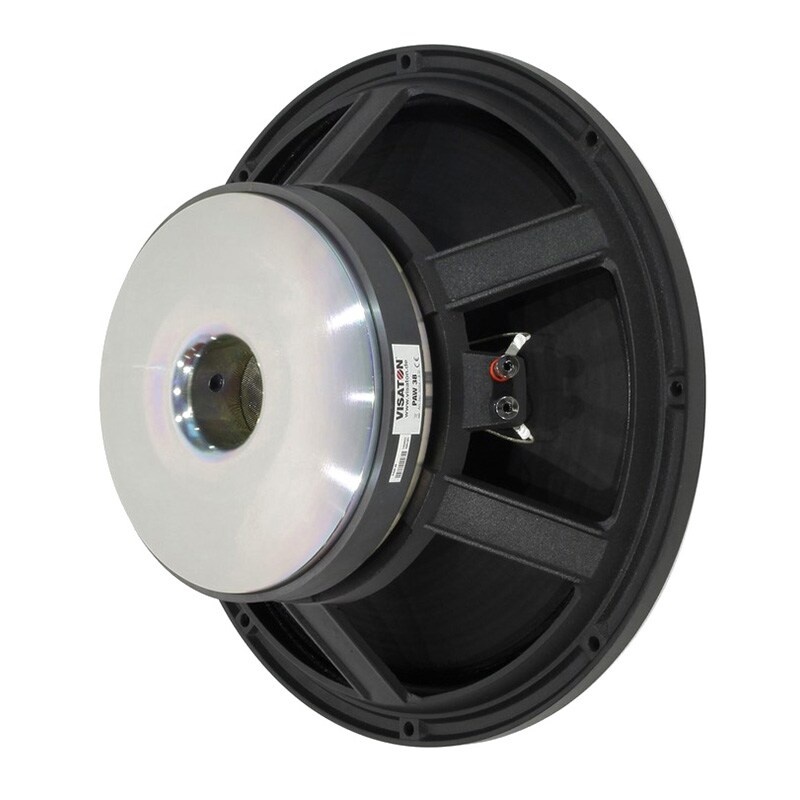

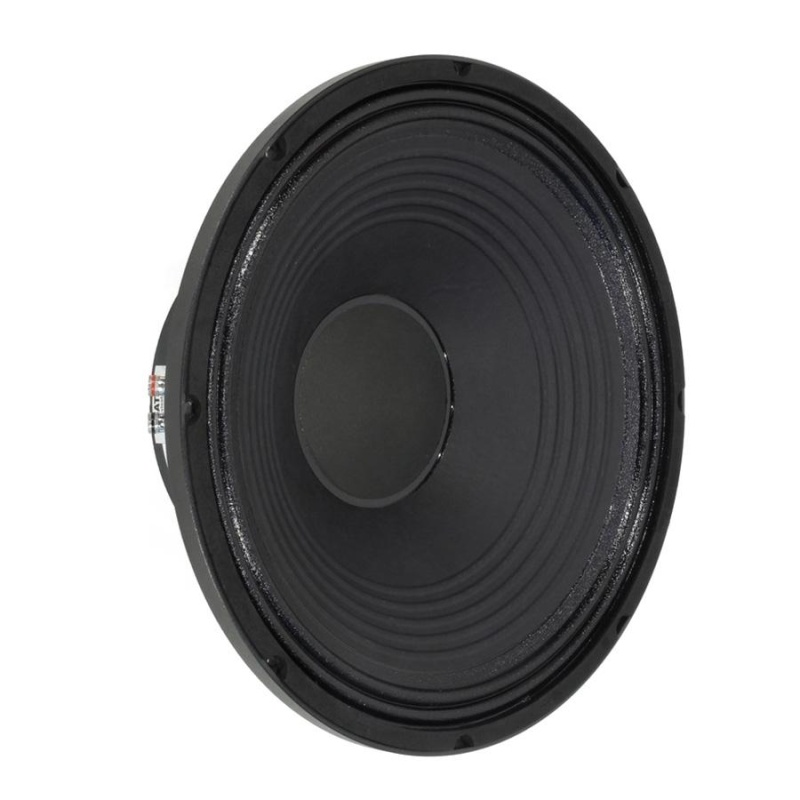

The PAW38-8's combination of high power handling, efficient cooling mechanisms, and robust construction makes it an excellent choice for demanding PA systems requiring reliable and high-quality bass sound reproduction.
Technical Data
Cm: 0.18 mm/N Rated power: 700 W Maximum power: 1000 W Nominal impedance Z: 8 Ohm Frequency response: fu–3700 Hz (fu: Lower cut-off frequency depending on cabinet)Mean sound pressure level: 92 dB (2.83 V/1 m) Maximum linear displacement: ±5.5 mm Excursion limit: ±12 mm Resonance frequency fs: 36 Hz Height of front pole-plate: 12 mmVoice coil diameter: 100 mm Height of winding: 23 mm Cutout diameter: 358 mm Net weight: 11.5 kg D.C. resistance Rdc: 7.2 Ohm Mechanical Q factor Qms: 9.0 Electrical Q factor Qes: 0.31 Total Q factor Qts: 0.29Equivalent volume Vas: 195 l Effective piston area Sd: 898 cm²Dynamically moved mass Mms: 125 g Force factor Bxl: 25 Tm Inductance of the voice coil L: 2.6 mH Connections: Spring terminals
