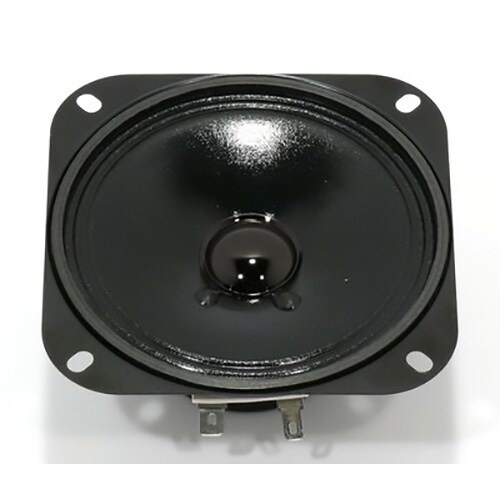

The R10SCSpezial8 is built to meet the demands of harsh environments, featuring IP64-rated protection against environmental elements such as dust and splashing water. Its wide operating temperature range ensures reliable functionality in both hot and cold conditions, while magnetic shielding prevents interference when placed near sensitive electronics. This speaker is an excellent choice for public transport systems, control devices, or industrial installations where rugged and efficient audio performance is critical.
Technical Data
Rated power: 20 W Maximum power: 30 W Nominal impedance Z: 8 Ohm Frequency response: 100–13000 Hz Mean sound pressure level: 90 dB (1 W/1 m) Opening angle (-6 dB): 92°/4000 Hz Excursion limit: +/−1.5 mm Resonance frequency fs: 165 Hz Magnetic induction: 0.95 T Magnetic flux: 135 µWb Height of front pole-plate: 3 mm Voice coil diameter: 15 mm Height of winding: 4 mm Cutout diameter: 93 mm Net weight: 0.24 kg D.C. resistance Rdc: 7.4 Ohm Mechanical Q factor Qms: 5.3 Electrical Q factor Qes: 2.63 Total Q factor Qts: 1.76 Equivalent volume Vas: 2.3 l Effective piston area Sd: 56 cm² Dynamically moved mass Mms: 2.2 g Force factor Bxl: 2.4 T m Inductance of the voice coil L: 0.5 mH Connections: 6.3 x 0.8 mm (+)/4.8 x 0.8 mm (-) Protective system: IP 64 *) Temperature range: −40 - 70 °C
