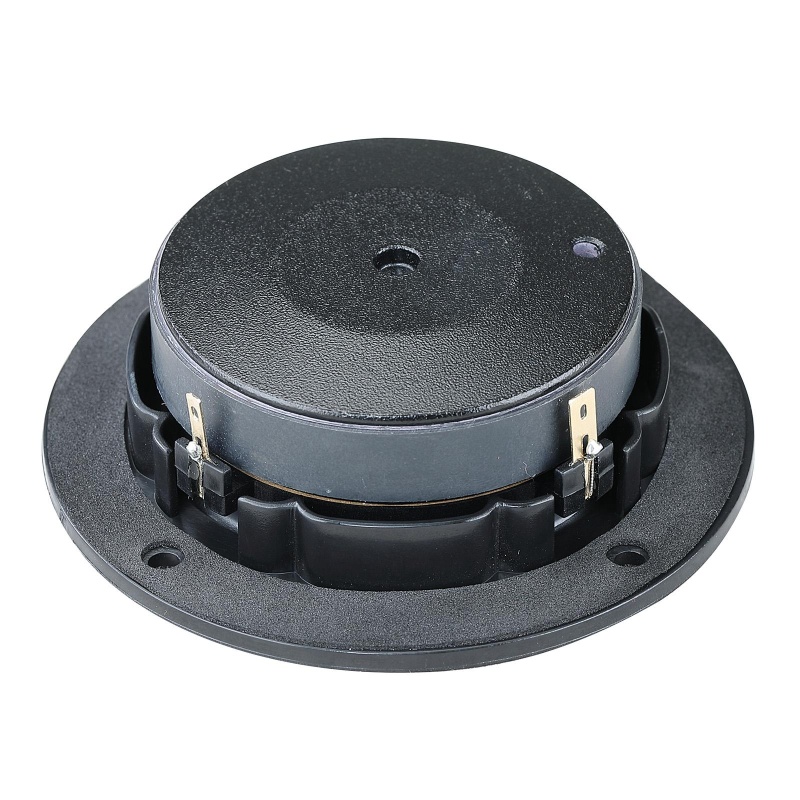

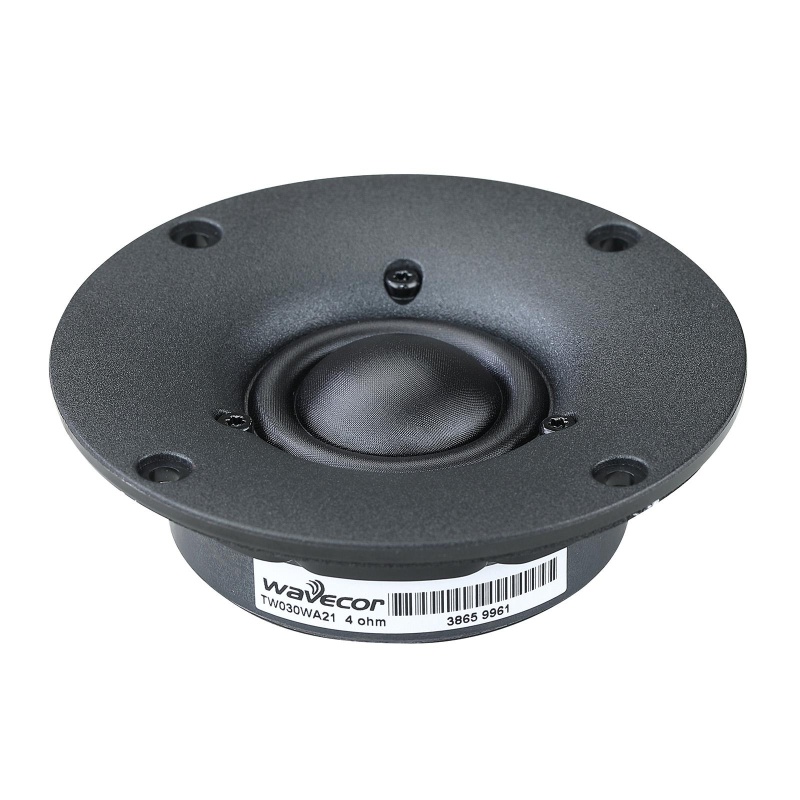

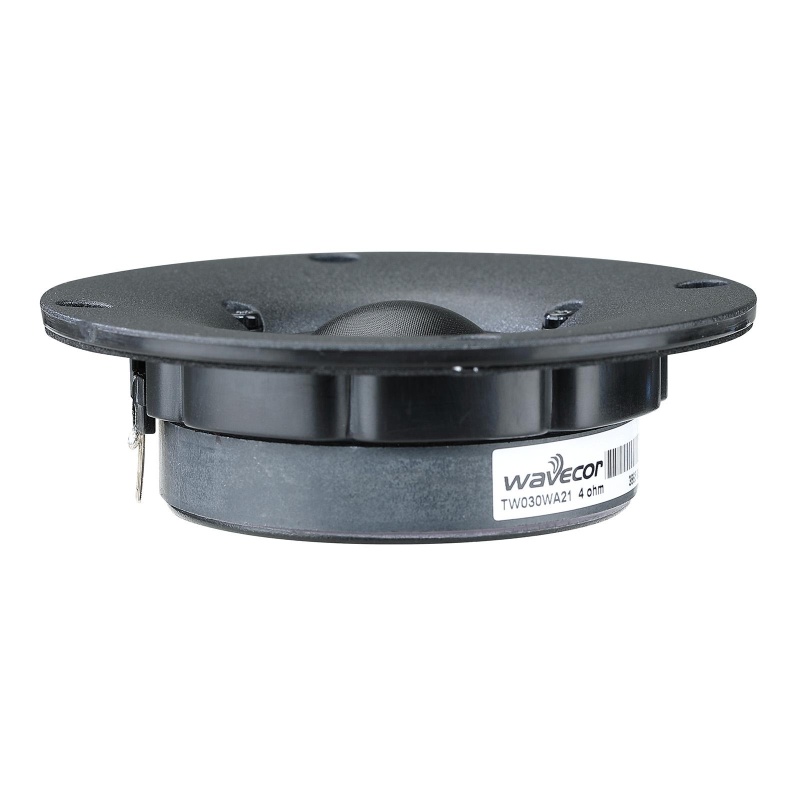

Wavecor TW030WA21 30mm Graphene Dome Tweeter 4 OhmThe TW030WA21 tweeter features a graphene-reinforced textile dome that delivers improved high-frequency extension, consistent performance, and enhanced thermal durability. The 30 mm motor design provides controlled off-axis dispersion and power response, along with high power handling and a low resonance frequency. Carefully engineered internal volumes help suppress unwanted resonances and reduce distortion, while the optimized dome geometry supports a higher frequency cutoff. A vented voice coil former reduces compression and distortion, and the use of copper-clad aluminum wire minimizes moving mass for greater efficiency and transient clarity. Additional refinements include built-in cavities under the dome and surround to equalize pressure, flexible lead wires to accommodate higher excursions, and gold-plated terminals for a corrosion-resistant, dependable connection. A pre-attached foam gasket simplifies installation and enhances cabinet sealing for consistent acoustic performance.
Measuring conditions, SPL Driver mounting: Flush in infinite baffle, back side open (no cabinet) Microphone distance: 1.0 m Input signal: 2.83 VRMS stepped sine wave Smoothing: 1/6 oct.
Measuring conditions, impedance Driver mounting: Free air, no baffle, back side open (no cabinet) Input signal: Stepped sine wave, semi-current-drive, nominal current 2 mA Smoothing: None
Measuring conditions, harmonic distortion Driver mounting: In infinite baffle Microphone distance: 0.5 m Input signal: Stepped sine wave, 2.0 VRMS Smoothing: 1/12 oct.
