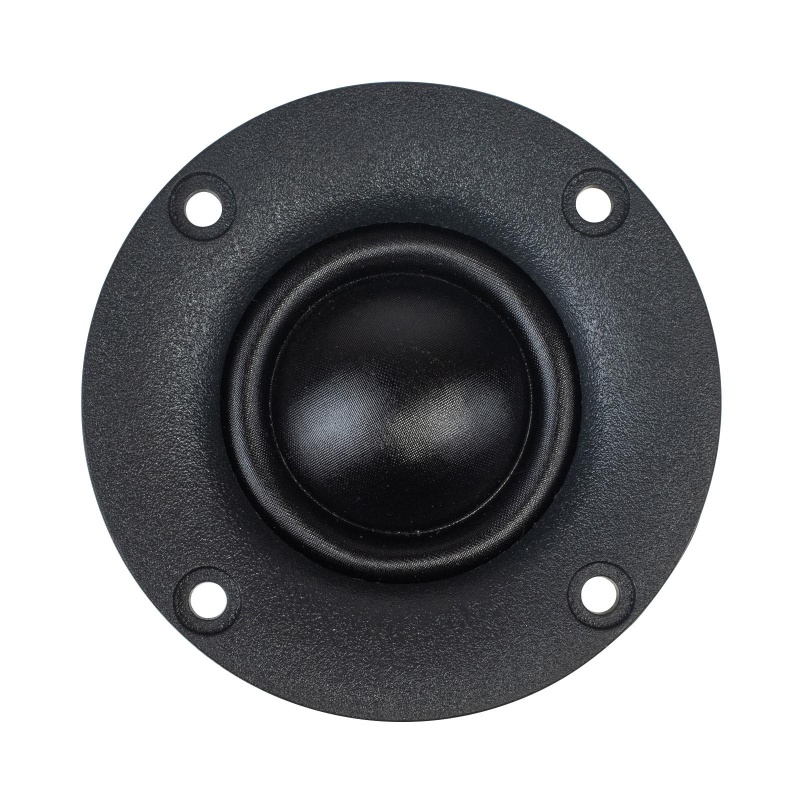

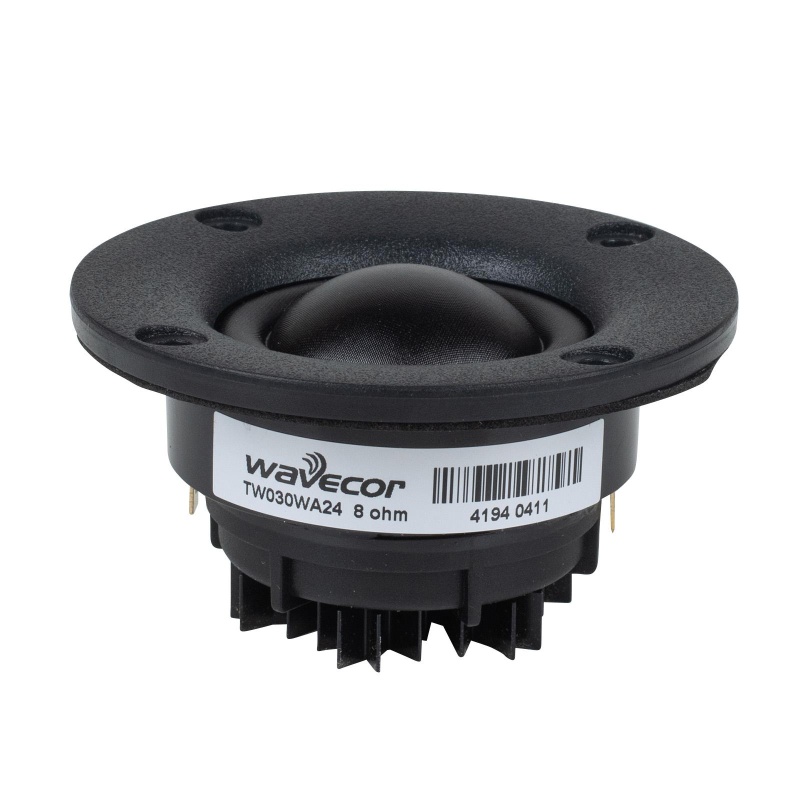

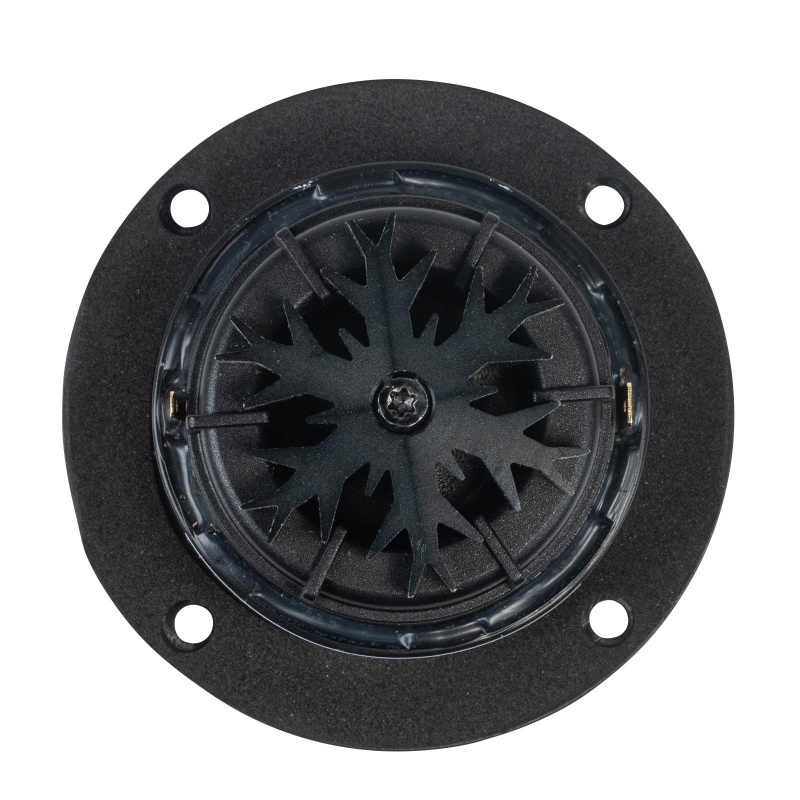

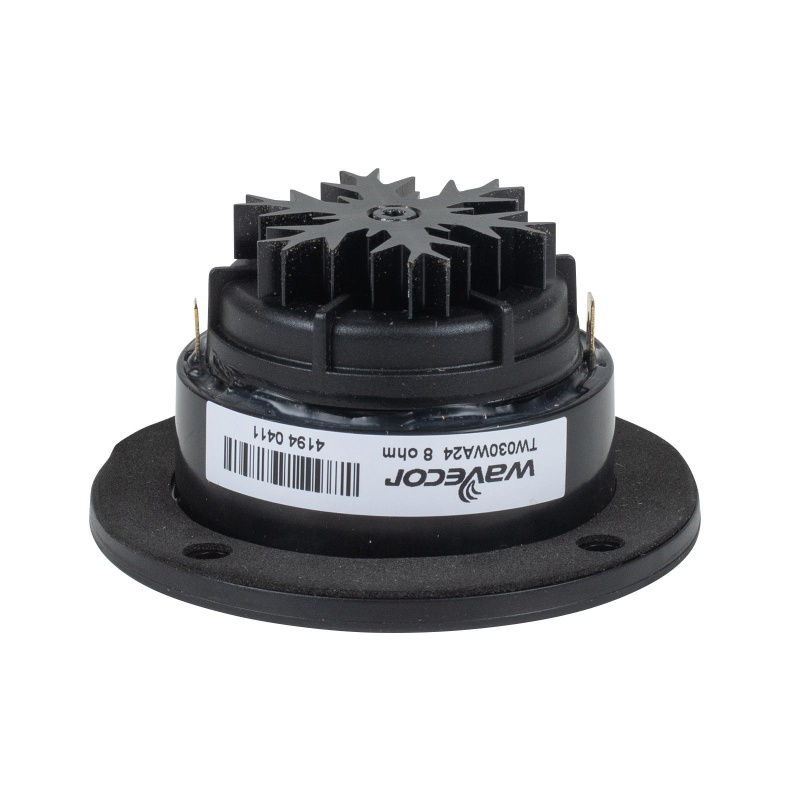

Wavecor TW030WA24 30mm Chambered Graphene Dome Neo Tweeter 8 OhmThe TW030WA24 high-performance tweeter features a graphene-reinforced textile dome that enhances high-frequency extension, thermal endurance, and consistency across the listening range. Its 30 mm voice coil is designed for high power handling and a low resonance frequency, while the copper-clad center pole lowers inductance to reduce distortion and improve high-frequency output. The motor is vented into a damped rear chamber to further suppress resonance and distortion, and a dedicated rear heat sink improves long-term power handling under demanding conditions. A vented voice coil former minimizes compression, and the copper-clad aluminum wire keeps moving mass low for better transient response and overall efficiency. Additional design details include internal cavities under the dome and surround to equalize pressure, flexible lead wires for increased excursion capacity, and gold-plated terminals for a corrosion-resistant, reliable connection. A foam gasket is pre-installed to simplify mounting and maintain a secure acoustic seal.
Measuring conditions, SPL Driver mounting: Flush in infinite baffle, back side open (no cabinet) Microphone distance: 1.0 mInput signal: 2.83 VRMS LogChirp, 64k, Hanning/2 Smoothing: 1/6 oct.
Measuring conditions, impedance Driver mounting: Free air, no baffle, back side open (no cabinet) Input signal: Stepped sine wave, semi-current-drive, nominal current 2 mA Smoothing: None
Measuring conditions, harmonic distortion Driver mounting: In infinite baffle Microphone distance: 0.5 m Input signal: Stepped sine wave, 2.83 VRMS Smoothing: 1/12 oct.
