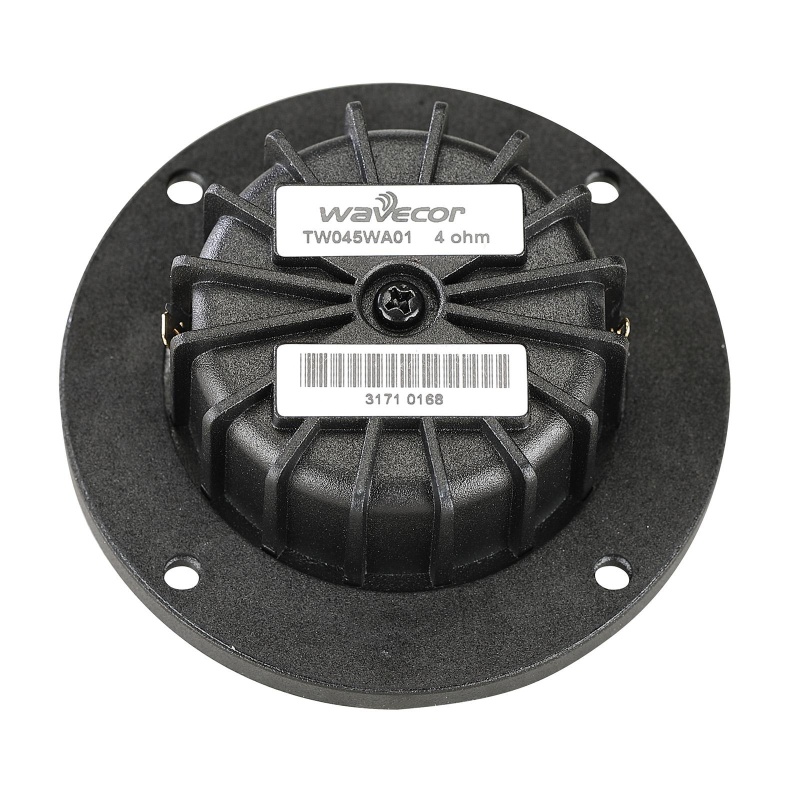

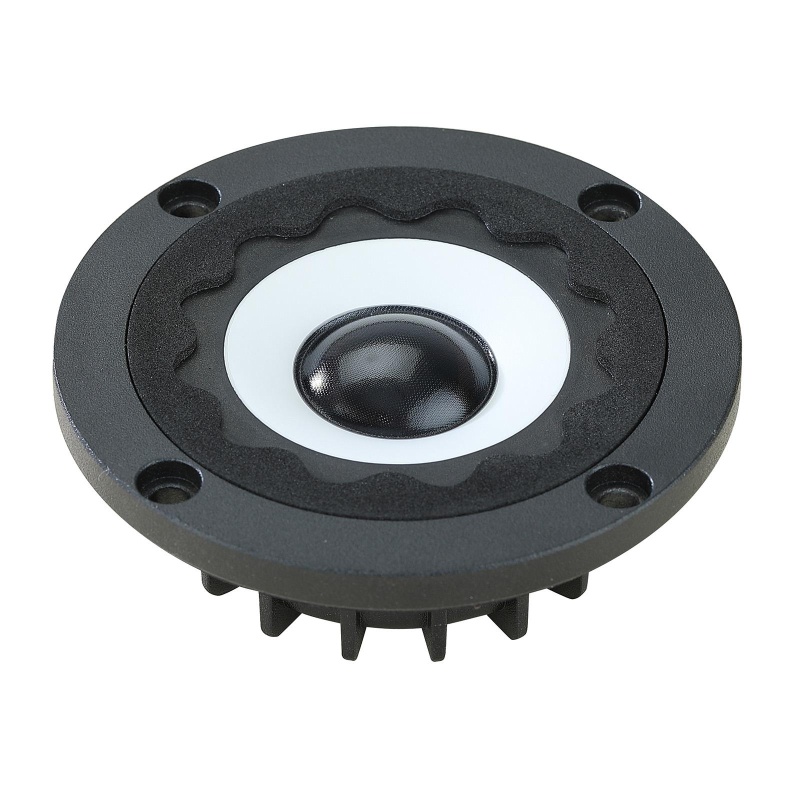

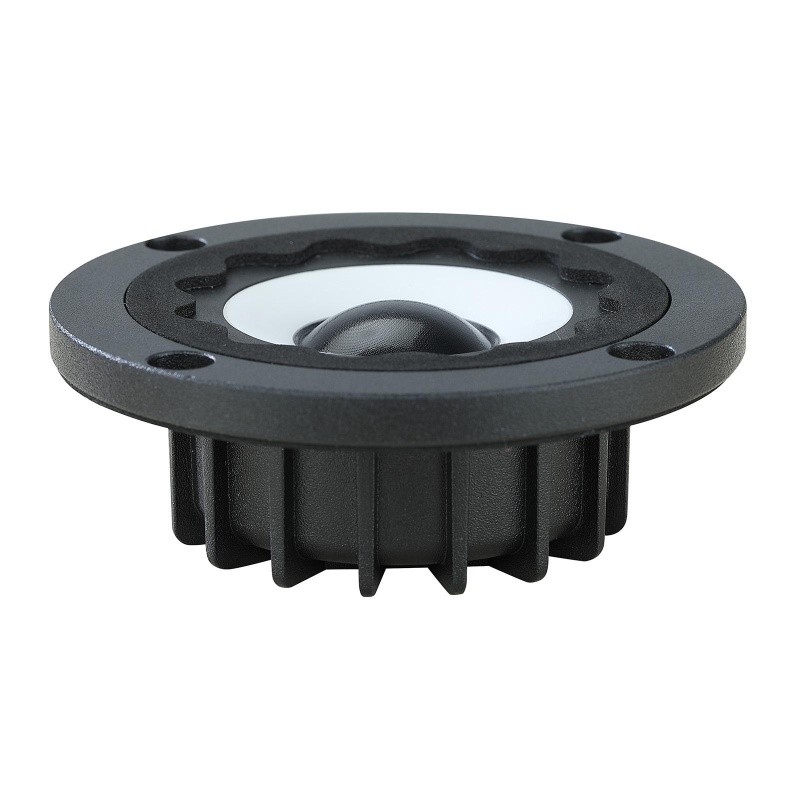

Wavecor TW045WA01 45mm Coaxial Neo Tweeter 4 OhmThe TW045WA series features a unique Dual-Piston design that pairs a 22 mm precision textile dome with a 45 mm cone—ceramic in the and black anodized aluminum in the —delivering both extended high-frequency performance and enhanced low-frequency efficiency. The copper-clad center pole minimizes voice coil inductance, resulting in lower distortion and greater high-frequency output, while the optimized dome shape and underhung voice coil further contribute to linear, wideband response. A foam ring around the dome reduces front-side reflections, and the low-damping IIR surround maintains control without introducing unwanted coloration. The vented voice coil leads to a damped rear die-cast chamber for suppressed resonance, and the robust aluminum chassis integrates a heat sink for improved long-term power handling. Additional design elements include a dual-neodymium magnet structure for strong motor force, copper-clad aluminum coil wire for efficiency and transient clarity, and flexible lead wires to support large excursions and high power levels. Gold-plated terminals and a pre-applied foam gasket round out the package for reliable connectivity and simplified cabinet integration.
Measuring conditions, SPL Driver mounting: Flush in infinite baffle, back side open (no cabinet) Microphone distance: 1.0 m Input signal: 2.83 VRMS LogChirp, 64k, Hanning/2 Smoothing: 1/6 oct.
Measuring conditions, impedance Driver mounting: Free air, no baffle, back side open (no cabinet) Input signal: Stepped sine wave, semi-current-drive, nominal current 2 mA Smoothing: None
Measuring conditions, harmonic distortion Driver mounting: In infinite baffle Microphone distance: 0.5 m Input signal: Stepped sine wave, 2.0 VRMS Smoothing: 1/12 oct.
