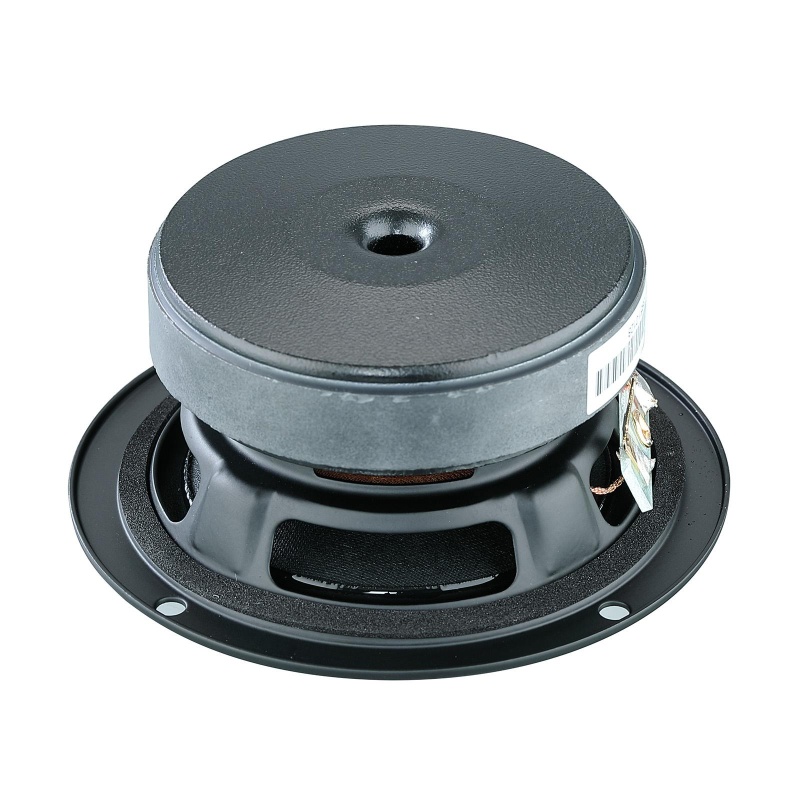

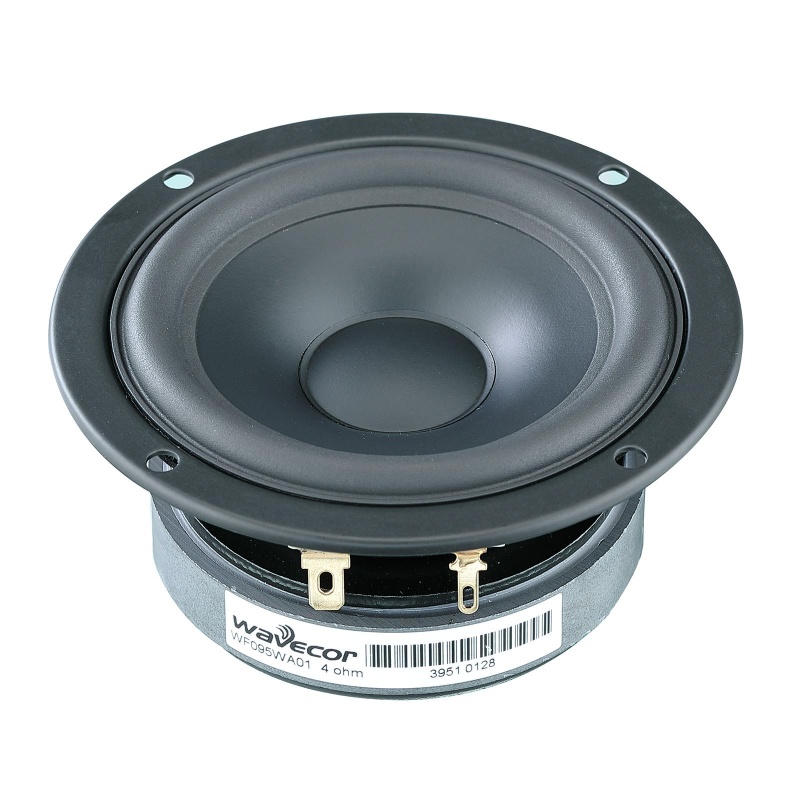

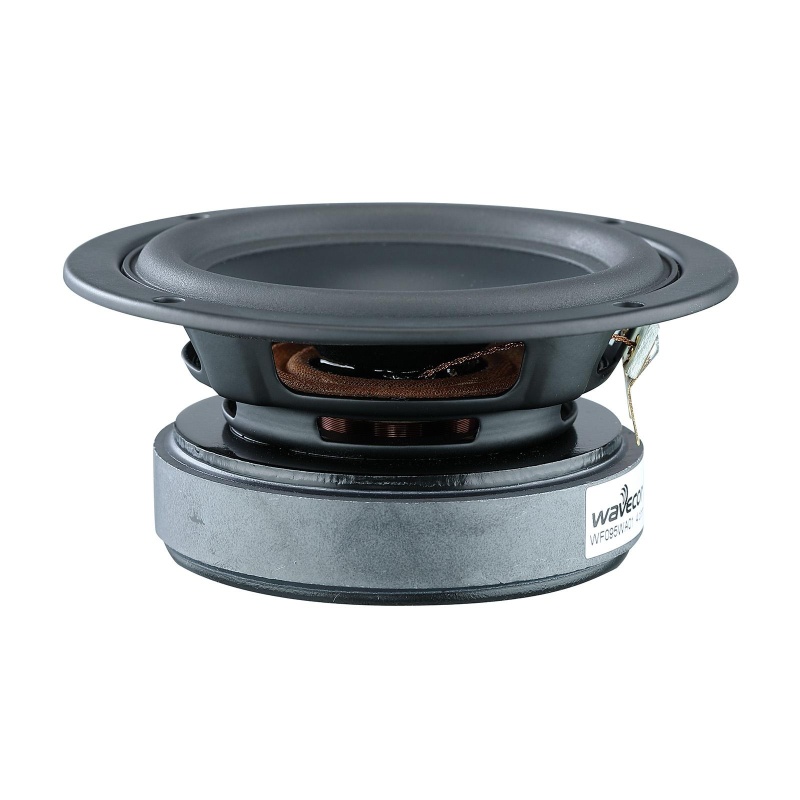

Wavecor WF095WA01 3-3/4" Paper Cone Midwoofer 4 OhmThe WF095WA01 is engineered for high-performance sound reproduction with a vented voice coil former and center pole that work together to reduce distortion and compression during demanding playback. Its vented chassis design lowers air flow speed, minimizing turbulence-related noise and preserving detail. The voice coil is wound with copper-clad aluminum wire to improve efficiency and enhance dynamic response, while the heavy-duty black fiberglass bobbin boosts power handling and reduces mechanical losses for clearer low-level detail. A low-loss suspension system with high mechanical Q delivers better transient accuracy, supported by a progressive CONEX spider designed for durability even under extreme conditions. Additional features include black-coated magnet components for improved thermal conductivity, gold-plated terminals for reliable, corrosion-resistant connections, and a pre-attached foam gasket that simplifies mounting while ensuring a tight acoustic seal.
Measuring conditions, SPL Driver mounting: Flush in infinite baffle, back side open (no cabinet) Microphone distance: 1.0 m Input signal: 2.83 VRMS LogChirp, 64k, Hanning/2 Smoothing: 1/6 oct.
Measuring conditions, impedance Driver mounting: Free air, no baffle, back side open (no cabinet) Input signal: Stepped sine wave, semi-current-drive, nominal current 2 mA Smoothing: None
Measuring conditions, harmonic distortion Driver mounting: In sealed enclosure, internal volume 1 lit. Microphone distance: 0.5 m Input signal: Stepped sine wave, 2.0 V Smoothing: 1/12 oct.
