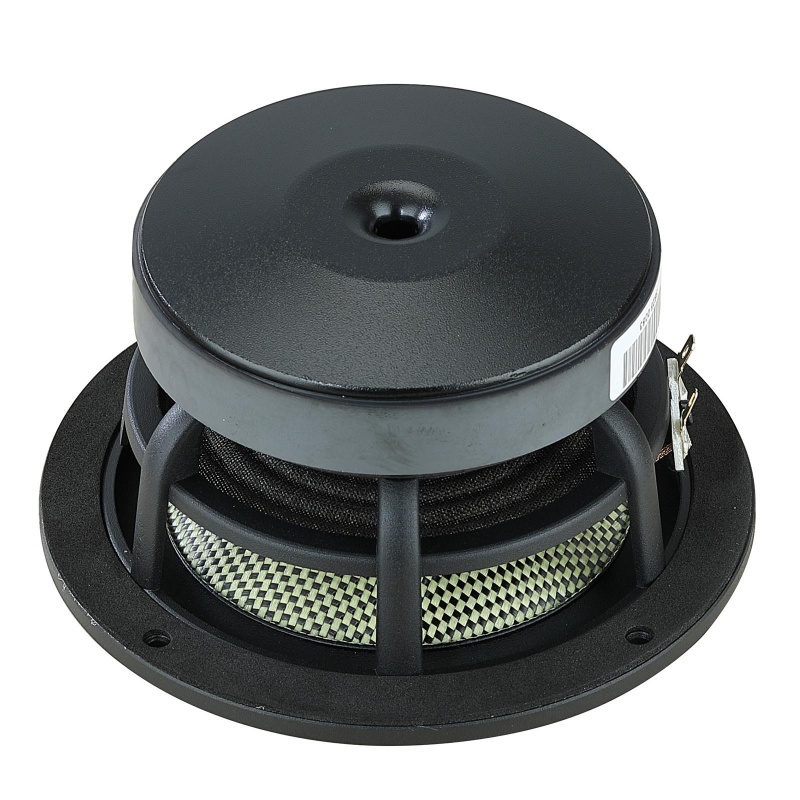

Wavecor WF152BD09 6" Kevlar/Carbon Fiber Cone Midwoofer 4 OhmThe WF152BD09 is a midrange driver featuring a newly developed cone made from interwoven Kevlar and carbon fibers, offering a class-leading combination of low mass, rigidity, and internal damping for an accurate and detailed midrange reproduction. Its Balanced Drive motor structure delivers symmetrical magnetic force for significantly reduced even-order harmonic distortion, while a vented, inverted center dome lowers compression during high-output operation. The center pole is capped with copper to reduce voice coil inductance and stabilize its behavior across excursion, contributing to a smoother, more linear response. A rigid die-cast aluminum chassis with extensive venting controls air flow velocity to limit turbulence-related distortion, and a 1.25" voice coil wound on a black fiberglass former helps improve dynamic performance by reducing mechanical losses. Additional enhancements include an integrated aluminum field-stabilizing ring for low distortion at high SPL, a high-Qm suspension system for refined detail and transient response, and black-coated motor parts that aid heat dissipation. The Conex spider ensures long-lasting mechanical durability under demanding conditions, while gold-plated terminals provide a corrosion-resistant, reliable electrical connection over time.
Measuring conditions, SPL Driver mounting: Flush in infinite baffle, back side open (no cabinet) Microphone distance: 1.0 m Input signal: 2.83 VRMS LogChirp, 64k, Hanning/2 Smoothing: 1/6 oct.
Measuring conditions, impedance Driver mounting: Free air, no baffle, back side open (no cabinet) Input signal: Stepped sine wave, semi-current-drive, nominal current 2 mA Smoothing: None
Measuring conditions, harmonic distortion Driver mounting: In sealed enclosure, internal volume 2 lit. Microphone distance: 0.5 m Input signal: Stepped sine wave, 5.3 VRMS Smoothing: 1/12 oct.
