Product Overview The PPA R38-20 from Williams AV is a 20-pack bundle of Personal PA® PPA R38 FM listening receiver models and EAR 022 Surround earphones. This bundle is compatible with the following Williams AV 72 – 76 MHz transmitters: PPA T46, PPA T45, PPA T45NET, PPA T27 (all sold separately).
Williams AV Personal PA® PPA R38N Receivers
With easy-to-use, seek-button channel selection with access to 17 pre-set wideband frequencies between 72 – 76 MHz, flexible and simple aptly describes the PPA R38N Personal PA listening receiver. Compatible with select Williams AV 72 – 76 MHz transmitters, it features digitally-synthesized circuitry for enhanced audio clarity and stability, it also features an onboard versatile 3.5mm stereo/mono jack which enables a variety of earphone and headphone options, and is neckloop/telecoil-equipped-hearing-aid compatible.
Please note: The Receiver requires a transmitter operating on 72-76 MHz. The Receiver is approved by the FCC for operation in U.S. Markets. The receiver cannot be used in all countries. Check with your government´s radio regulations for 72-76 MHz operation or contact your Sales Pro for further information.

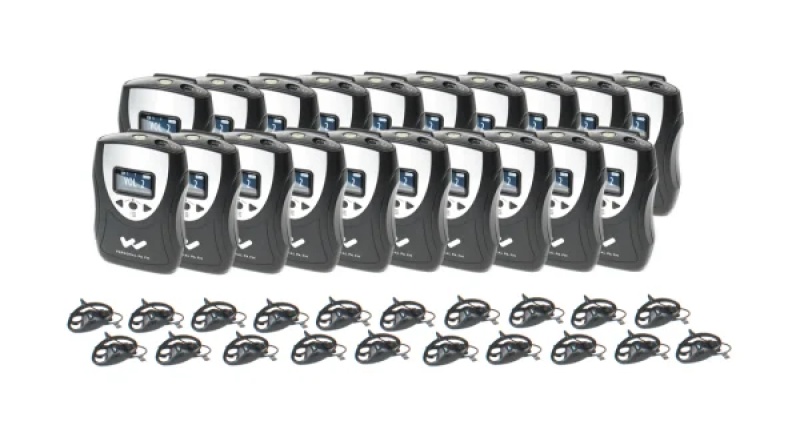

PPA R38-20 System Includes* (20) PPA R38N Receivers (20) BAT 001-2 AA Alkaline Batteries (20) EAR 022 Surround Earphones\ *Please note: all items can be purchased individually PPA R38-20 Features Overall System: Ideal for large venues Easy to install Integrates fully with existing sound systems Listeners can sit anywhere Cost-effective PPA R38N: Seek-button access to all 17 wideband frequencies in the 72-76 MHz bandwidth Channel-lock capability Battery-saving sleep mode Low-battery indicator Field tunable Specifications PPA R38N Receiver: Dimensions: 4.1 x 2.85 x 1.38″ (104 x 72 x 35 mm) Weight: 4.6 oz. (130 g) with batteries; 2.6 oz. (73 g) without batteries Color: Black/Silver. Black ABS Plastic case with Aluminum faceplate. Battery Type: (2) AA Alkaline or (2) AA NiMH Rechargeable Battery Life: (2) AA non-rechargeable alkaline batteries (BAT 001-2), approx. 50 hrs. (2) AA rechargeable NiMH batteries (BAT 026-2, sold separately), 1500 mAh, approx. 32 hrs. Operating Temp. Range: 32 °F – 122 °F (0 °C to 50 °C) Channels: 17 Wideband, accessed via menu FM Deviation: 75 kHz Power?Indication: Power button, backlit green. Good battery strength – glows solid. Low battery – flashes Input Overload: 100 mV Frequency Response: 200 Hz – 15 kHz, +/- 3 dB Signal-to-Noise Ratio: Minimum 65 dB @ 1.0V Receive Antenna: Integral with earphone/headphone cord Audio Output: 35 mW max at 16 Ω Power Save Mode: Enters sleep mode after approximately 3 minutes of no RF signal BAT 001-2 AA: Alkaline Batteries, 1.2 Volt EAR 022 Surround Earphones: Style: Around-ear speaker Plug: 3.5 mm mono Cord: 39″ Driver Size: 23mm Nominal Impedance: 32 Ω Frequency Response: 20 – 20 kHz Weight: 15 g Max Power Input: 30 mW Sensitivity: 118 dB @ 1 kHz Note: specifications and further information can be found within the items located under the “Documentation” tab above.
