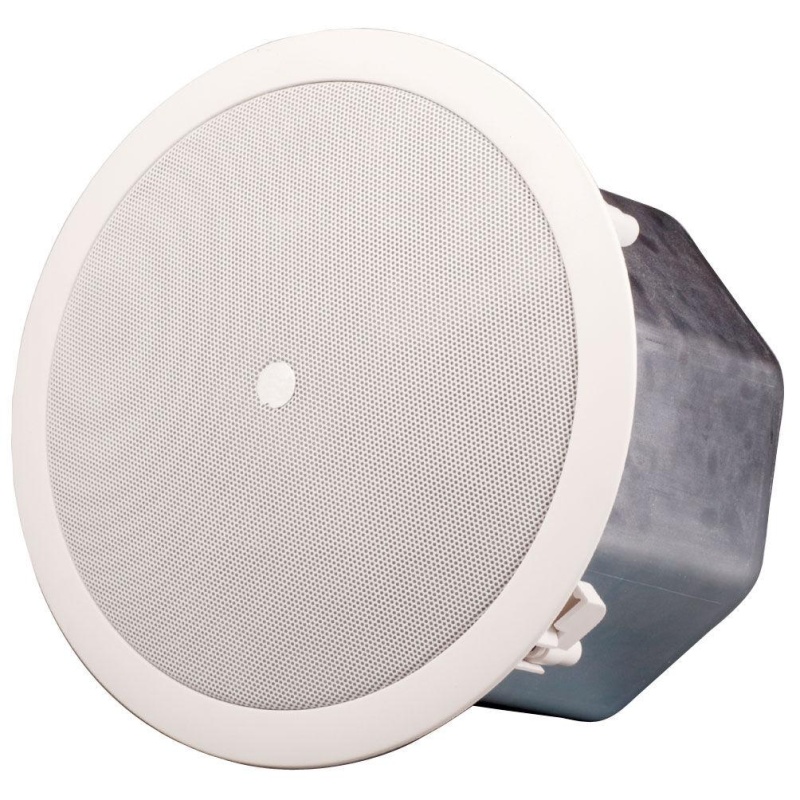

The C165W is a 60 watt 6-1/2" high performance ceiling mount loudspeaker. Ideal for any background music or paging system where superior sound quality is a priority, this speaker is made for louder club or restaurant / retail environments. Featuring an innovative design and employing high quality materials, the C165W maintains excellent performance from a compact ceiling loudspeaker. The C165W contains a coaxial 6-1/2" woofer and 3/4" titanium coated tweeter. Built in 70 volt taps at 7.5, 15, 30 or 60 watt operation means that high fidelity full range sound can be achieved over an extremely wide coverage pattern area. Virtually any 70 volt amplification or paging system, including the Coliseum CA1 or CA1T can drive the C165W.
Specifications: • Speaker type: Passive coax ceiling speaker • Power handling: 60 W • Nominal impedance: 70V • Sensitivity: 92 dB @ 1W/1m • Frequency response: 100 - 20,000 Hz • Woofer size: 6-1/2" • Tweeter: 3/4" titanium coated • Inputs: Screw terminal • Cabinet construction: Aluminum & ABS plastic with metal grill • Color: White • Dimensions: 10" D x 10" W x 7" H • Weight: 7.3 lbs.
Constant Voltage (70-Volt) Audio SystemsAudio distribution systems, especially those commonly used in department stores, warehouses, restaurants, etc., require that many loudspeakers be driven from a single audio amplifier over long runs of speaker wire. The "constant voltage" or "high impedance distribution" audio systems can be complex to understand at first, however, provides many advantages. Learn how to design your own 70-volt or 25-volt loudspeaker system.
